Acer H6500 - 2-27 Assemble Keypad board module and Zoom ring

Condential
2-33
H6500
2-27 Assemble Keypad
board module and
Zoom ring

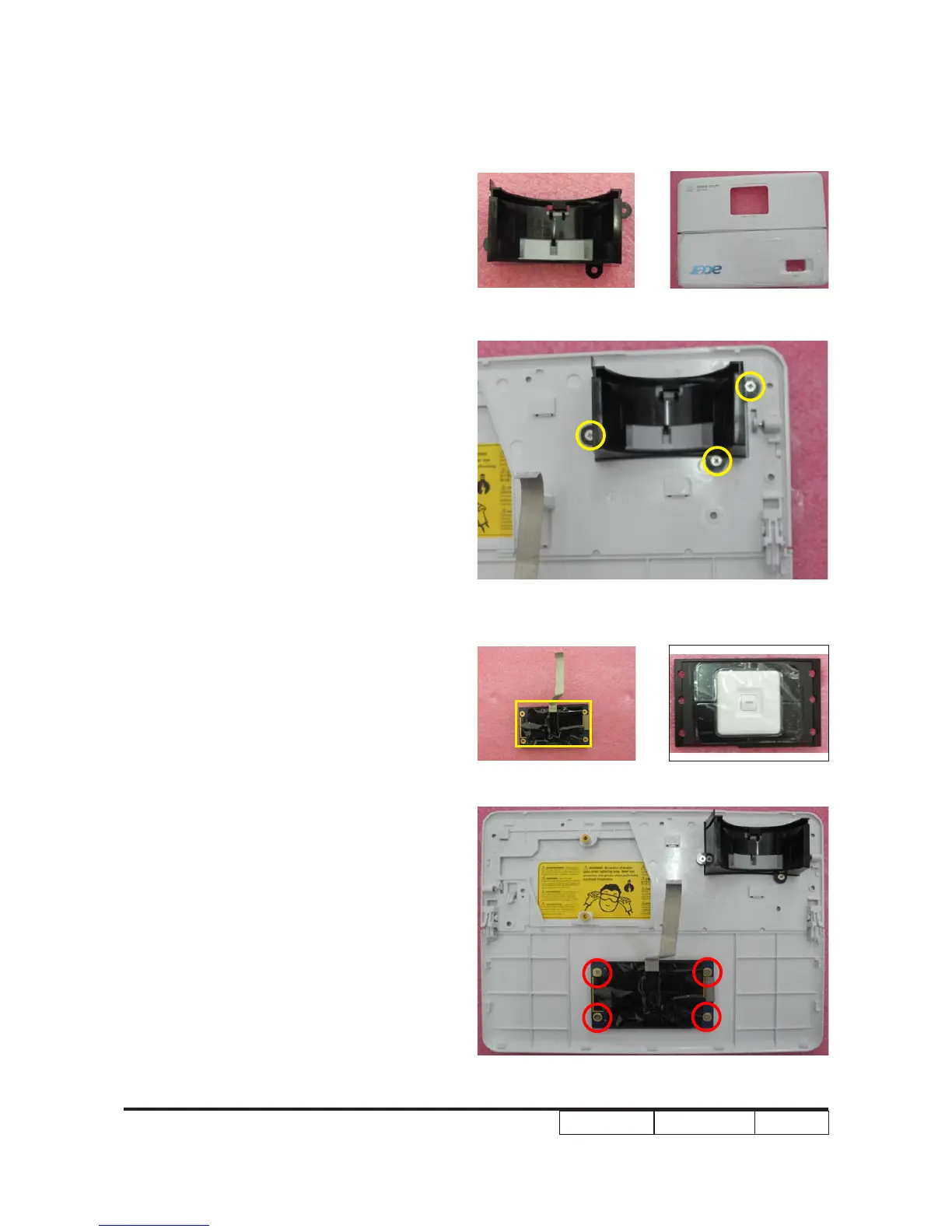

1. Screw 3 screws (as yellow circle) to
assemble the Zoom ring module.
Keypad module
Zoom ring module
Top cover module
Keypad board module
2. Assemble the Keypad board module
and the Keypad module.
3. Screw 4 screws (as red circle) to
assemble the Keypad board module.
