Acer H6500 - 6-3 Enter EDID Firmware mode; 6-4 Setup Procedure (VGA & HDMI 1)

H6500
Condential
6-3
6-3 Enter EDID Firmware mode
1. Hold on the “Power” button, then plug in the power
cord.
2. When the "Power LED" ashes blue, release the
“power” button.
3. When the "Power LED" ash Blue-->Blue-->Red
alternates, it means the projector has got into EDID
Firmware mode.
6-4 Setup Procedure
(VGA & HDMI 1)(VGA & HDMI 1)

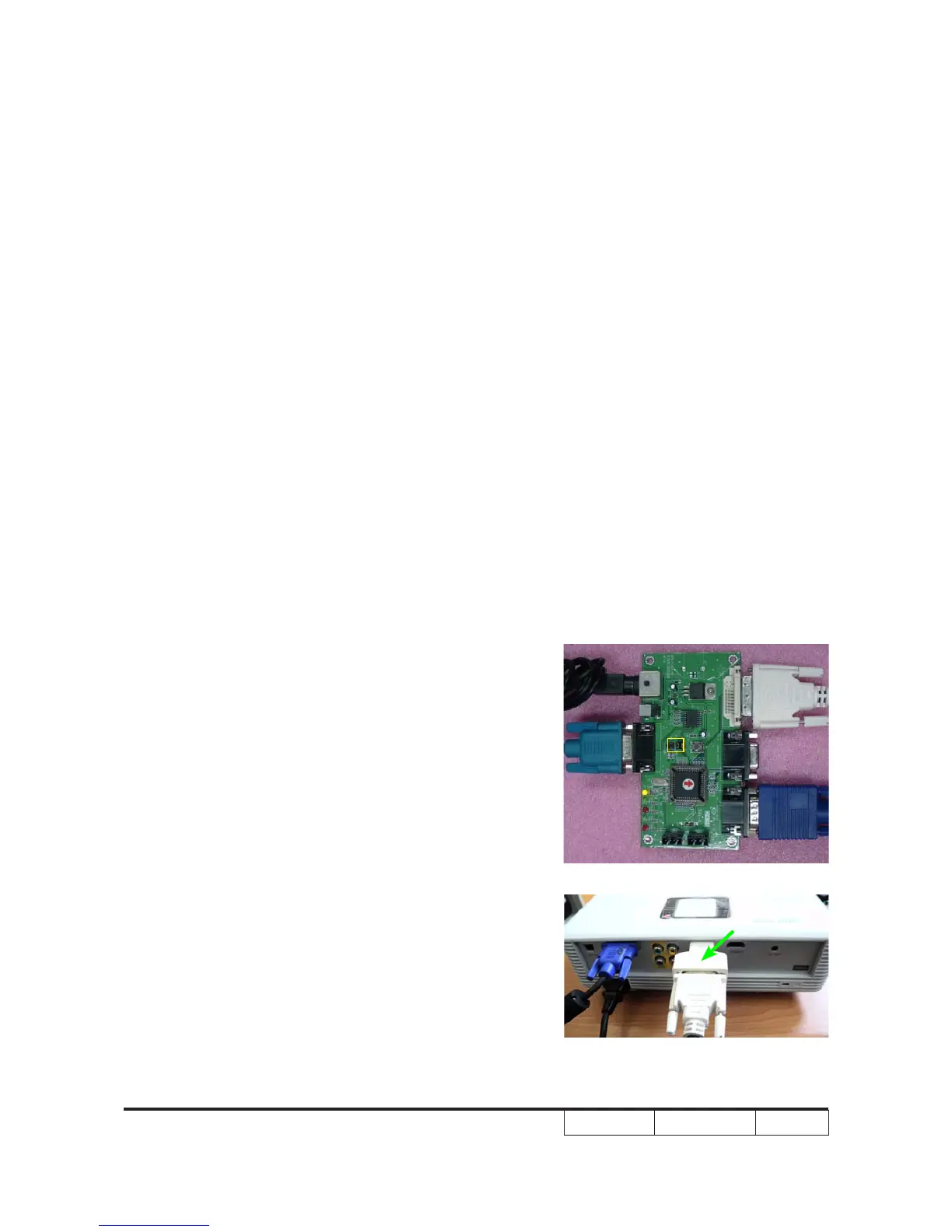

1. Connect all ports
(1) Connect P1 of xture to COM Port of PC/Laptop
by RS232 Cable.
(2) Connect P2 of xture to VGA IN Port of projector
by VGA Cable.
(3) Connect P3 of xture to HDMI1 Port of
projector by DVI Cable and "HDMI(M) To
DVI(F) Adapter". .
(4) Plug Power Adapter to P4 of xture.
(5) Plug Power Cord to projector.
Note: - You must conrm that the JP3 is closed in
all procedure.
DVI
Cable
VGA IN Port
Power
Cable
HDMI(M) To
DVI(F) Adapter
JP3
P2
RS232 Cable
Adapter
P4
P1
VGA Cable
P3
DVI Cable
