NOTE: Circuit boards > 10 cm² has been highlighted with the yellow rectangle as
above image shows. Please detach the Circuit boards and follow local
regulations for disposal.
DMD broad module and
DMD chip
Heat sink
DMD heat sink
rubber
DMD rubber DMD mask
DMD chip
DMD board module

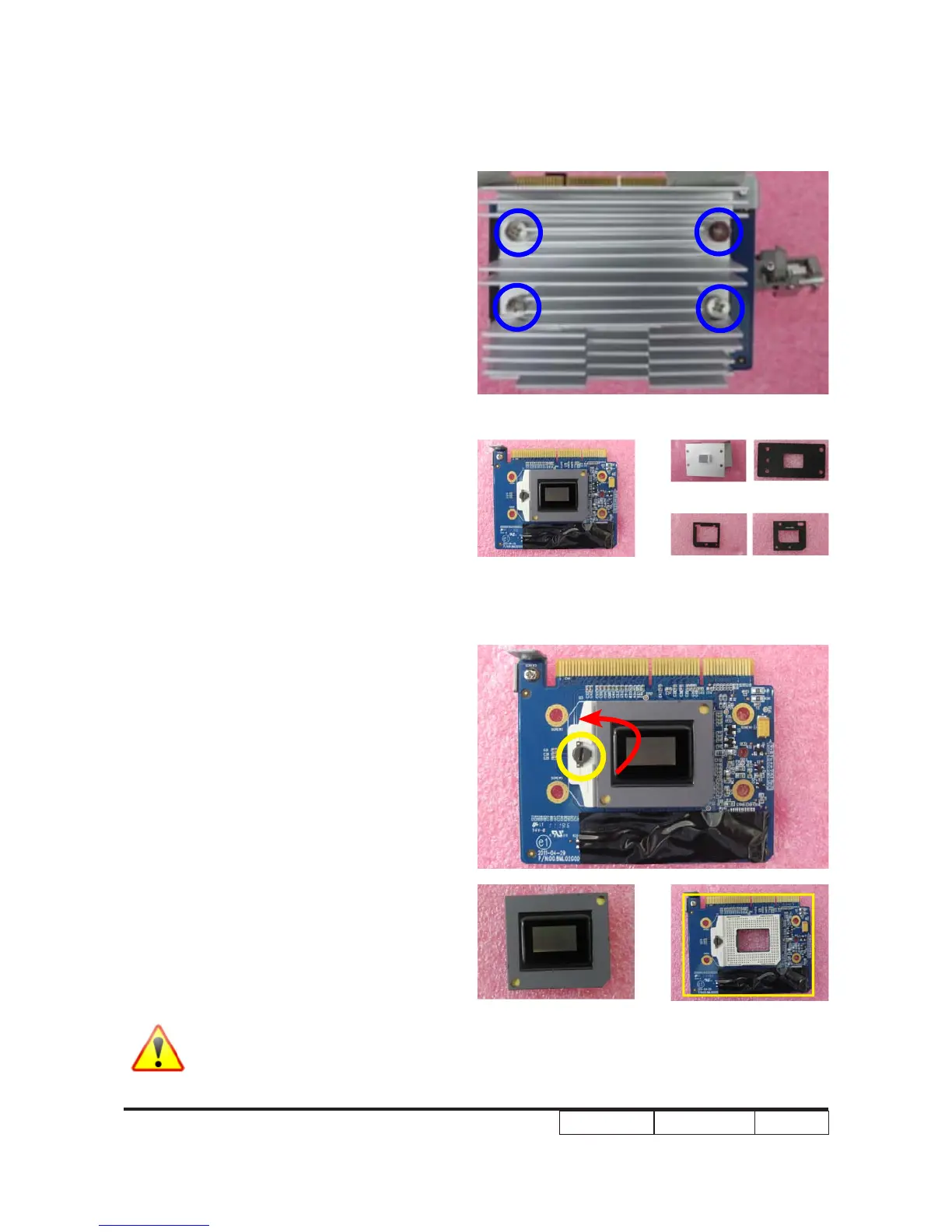

4. Rotate the screw (as yellow circle)
180° counterclockwise to disassemble
the DMD board module and DMD Chip.
Note: - Avoid touching the DMD Chip when you
disassemble it.
- Pay attention to the xed position when
assembling the DMD Chip.
2. Unscrew 2 screws (as blue circle).
3. Disassemble the Heat Sink and DMD
Module.
To Next Page
