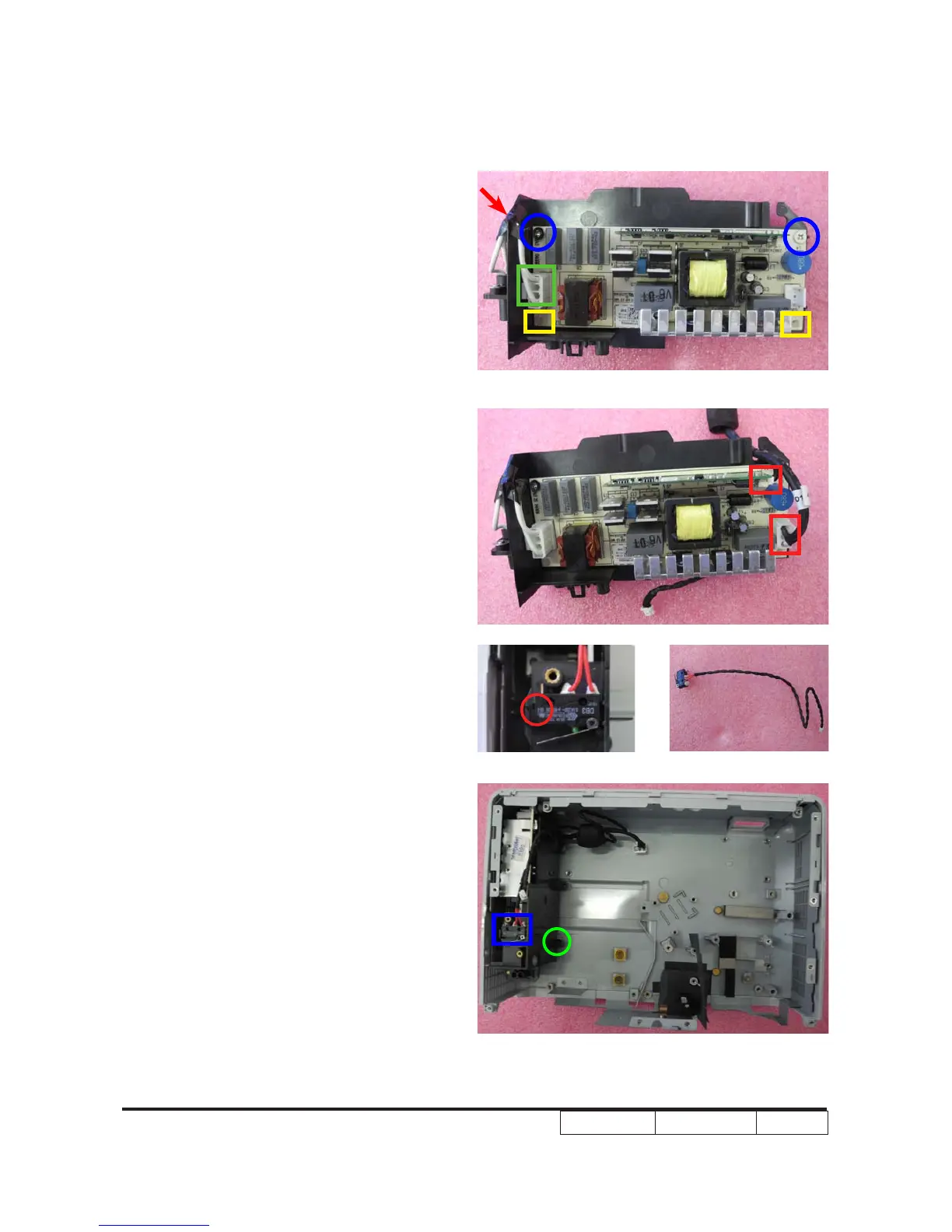

6. Screw 1 screw (as green circle) to
assemble the Lamp driver module.
7. Fasten 1 tenon(as blue circle) to
assemble the Interrupt switch.
2. Assemble the Lamp driver module and
the Lamp driver holder.
3. Screw 2 screws (as blue circle) and
fasten 2 tenons (as yellow square).
4. Arrange the lamp cable as picture
shown, then stick 1 black mylar (as red
arrow) to x the lamp cable, and plug
the lamp cable to Lamp driver.
5. Plug 2 connectors (as red square).
