Acer H6500 - Page 33

Condential
2-13
H6500
Fan shielding
System Fan

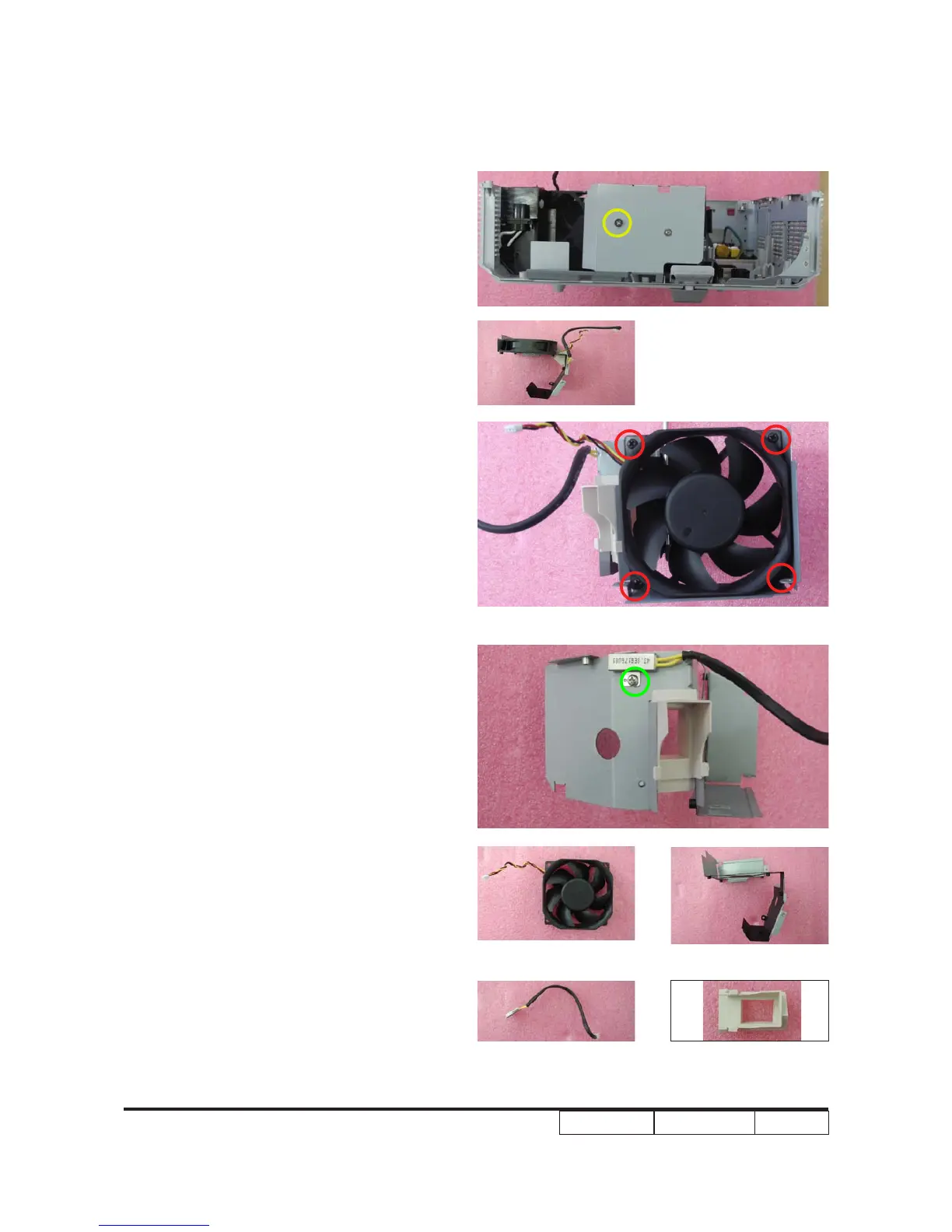

4. Unscrew 1 screws (as yellow circle) to
disassemble System Fan Module.
5. Unscrew 4 screws (as red circle) to
separate System Fan and Fan Shielding.
6. Unscrew 1 screws (as green circle) to
separate Thermal switch and
Fan shielding module.
7. Seprate Blower bracket and Fan
shielding.
Thermal switch
Blower bracket
