5.2.3. Establishing Communication

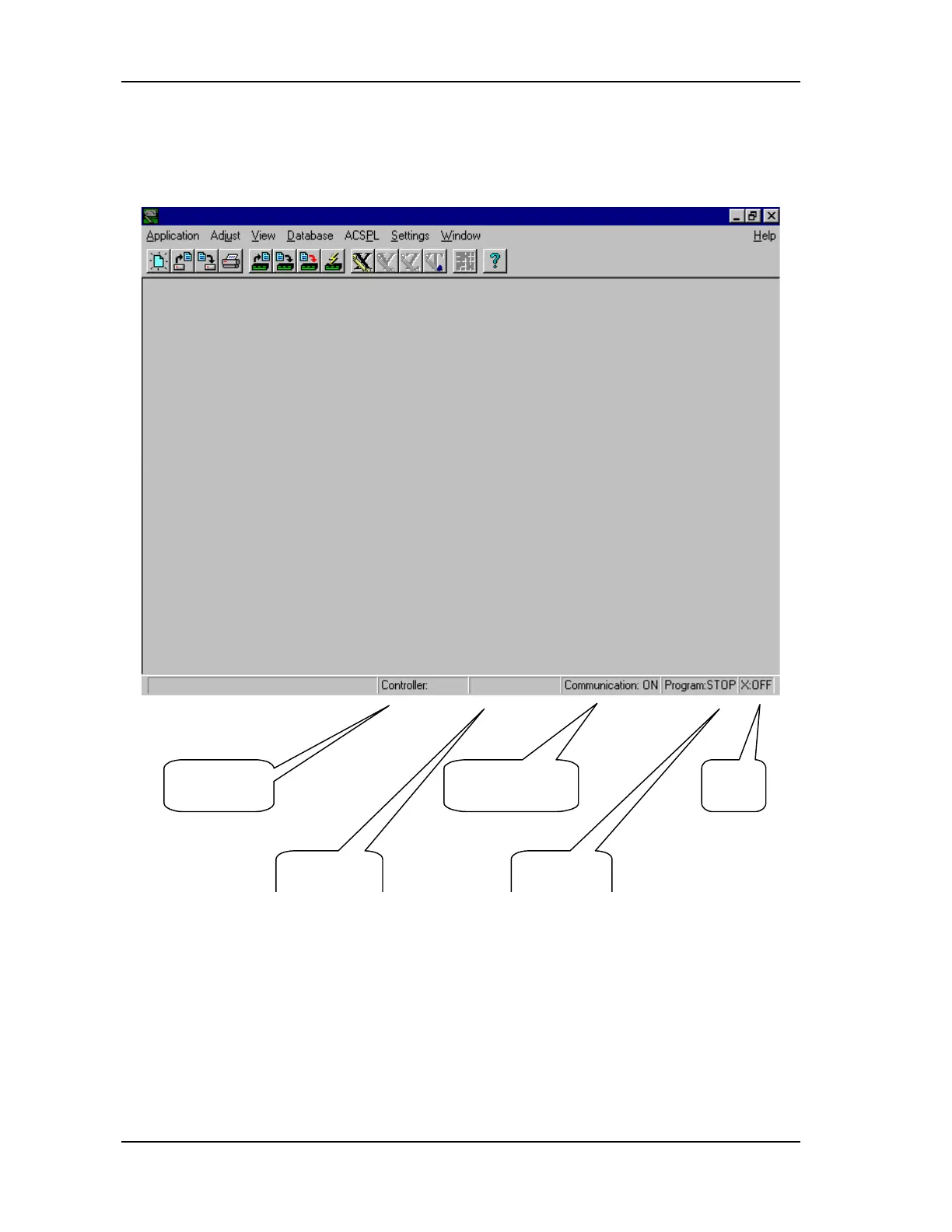

After ACS Adjuster starts up, it attempts to communicate with the control unit. If it succeeds, the
Communication parameter in the Adjuster status bar will read ON, as in FIGURE 5-3.
Controller
part number
Firmware
version
Communication
status
Program
status
Motor
status
FIGURE 5-3 Adjuster status bar
If communication fails, the Communication error message appears, as in FIGURE 5-4.
