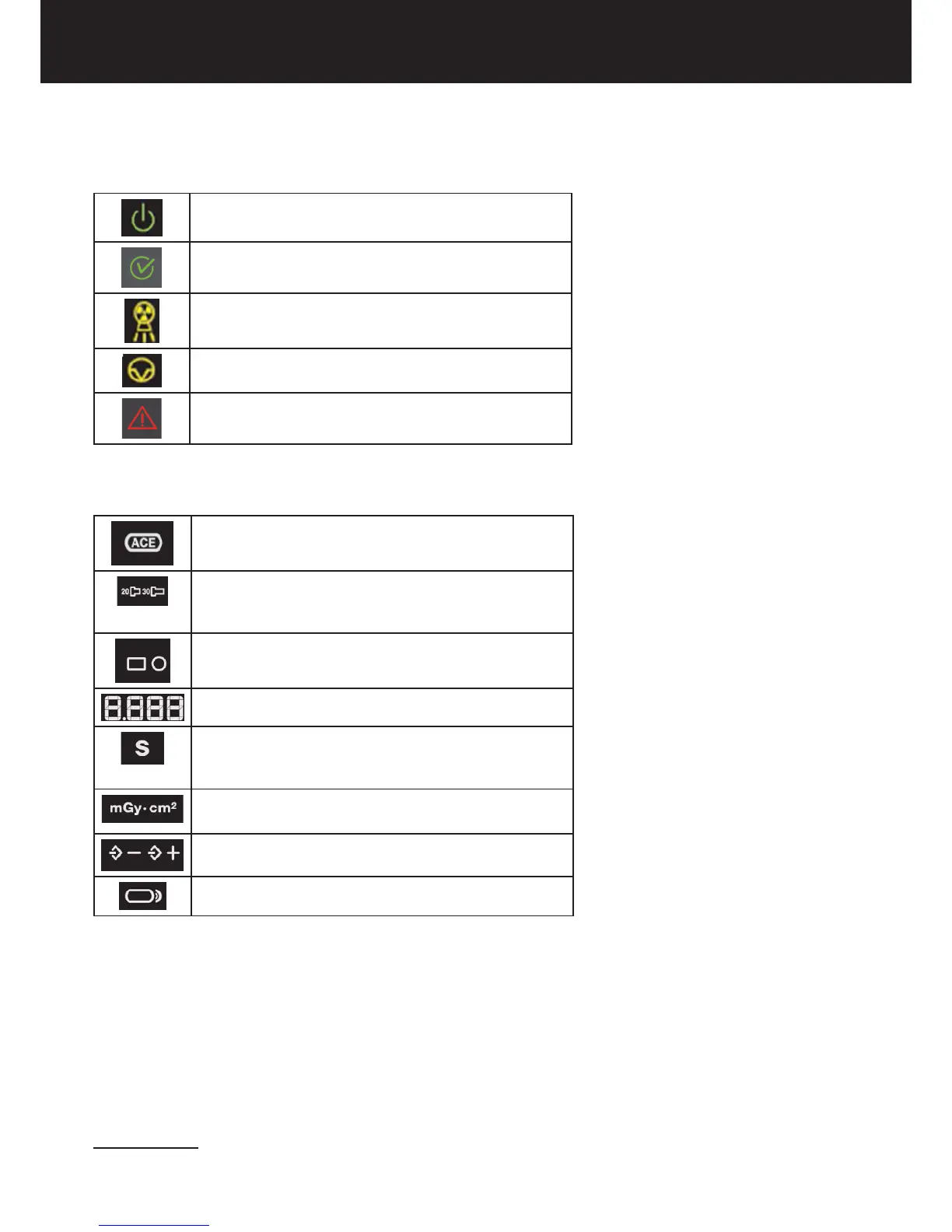

3.1.STATUS LED
Stand by
Armed (ready to take an x-ray exposure if the expo-
sure button is pressed)
X-ray emission
Pause (cooling down time after x-ray exposure)
Error / Malfunctioning
3.2.INFORMATION DISPLAY
ACE function with the Sopix/Sopix2 Inside sensor
activated
SSD (Source-skin distance)
1
20= 20cm SSD
30= 30cmSSD
Type of cone installed (circular beam output or rec-
tangular beam output)
Digit display
Units of measurement of the irradiation time [se-
conds]. It is positioned below and to the left of the
irradiation time display.
Units of measurement relevant to the Dose Area Pro-
duct [mGy*cm2].
Exp. time scale customization
Remote exposure switch installed
1
1 The SSD distance depends on the type of beam limiting device installed. Make sure you have the correct type of cone installed according to the
values and symbols explained in the accompanying documents and indicated on the display
