Acteon X-MIND unity - Ssd - Source to Skin Distance and Focal Spot Position

Page 60 of 79
Operator’s manual • X-Mind unity • VH • (15) • 09/2017 • NUN0EN010H
ENGLISH
SSD - SOURCE TO SKIN DISTANCE
and FOCAL SPOT POSITION

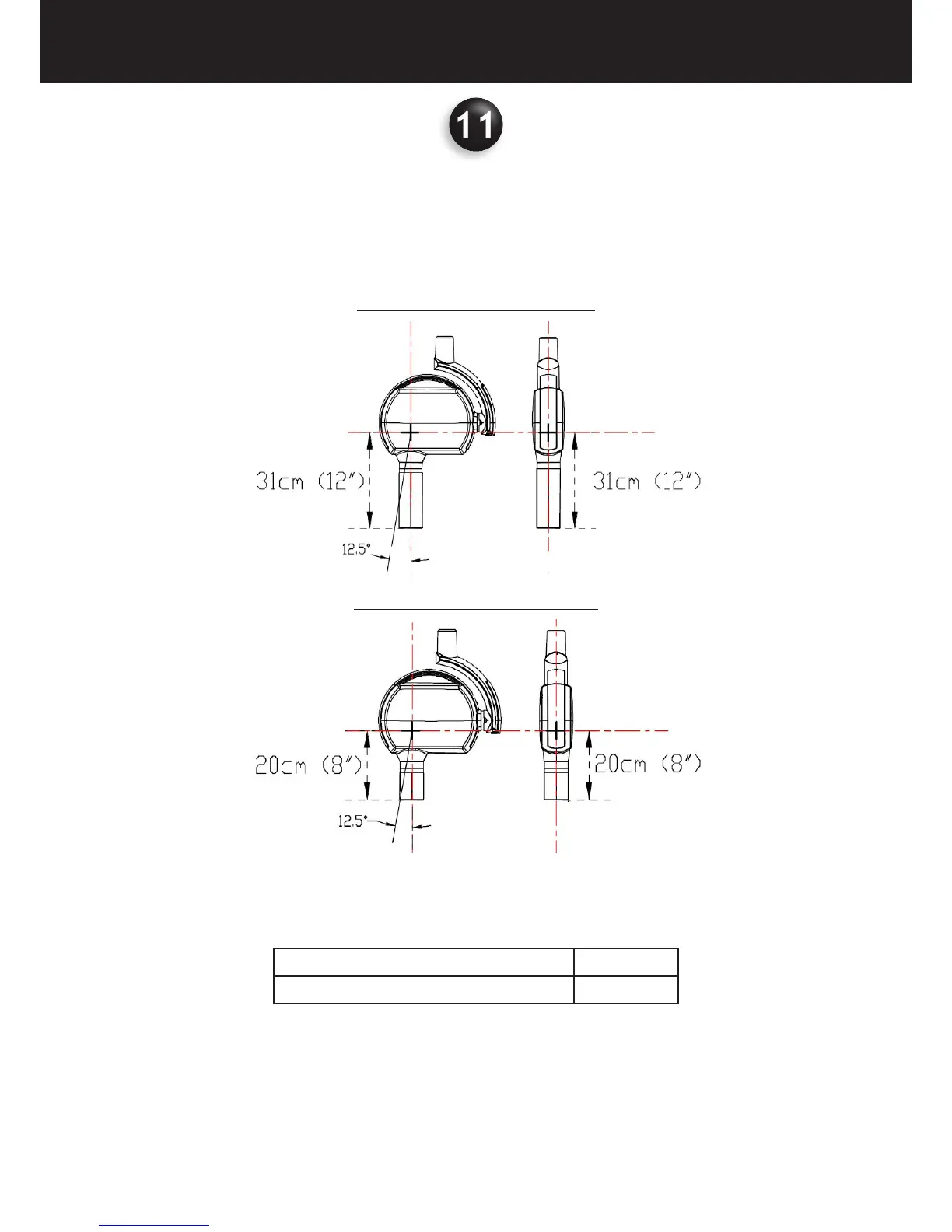

The position of the focal spot, together with the target angle and the reference axes are shown in the gure below:
LONG CONE (cylindrical and rectangular)
SHORT CONE (cylindrical and rectangular)
The tolerances of the focal spot on the reference axes are ± 0.5mm
Dimensions of the area of the x-ray beam output according to the shape of the beam limiting device:
Cylindrical Beam Limiting device Ø≤60 mm
Rectangular Beam Limiting device 44x35 mm
