2.1. SYSTEM COMPONENTS

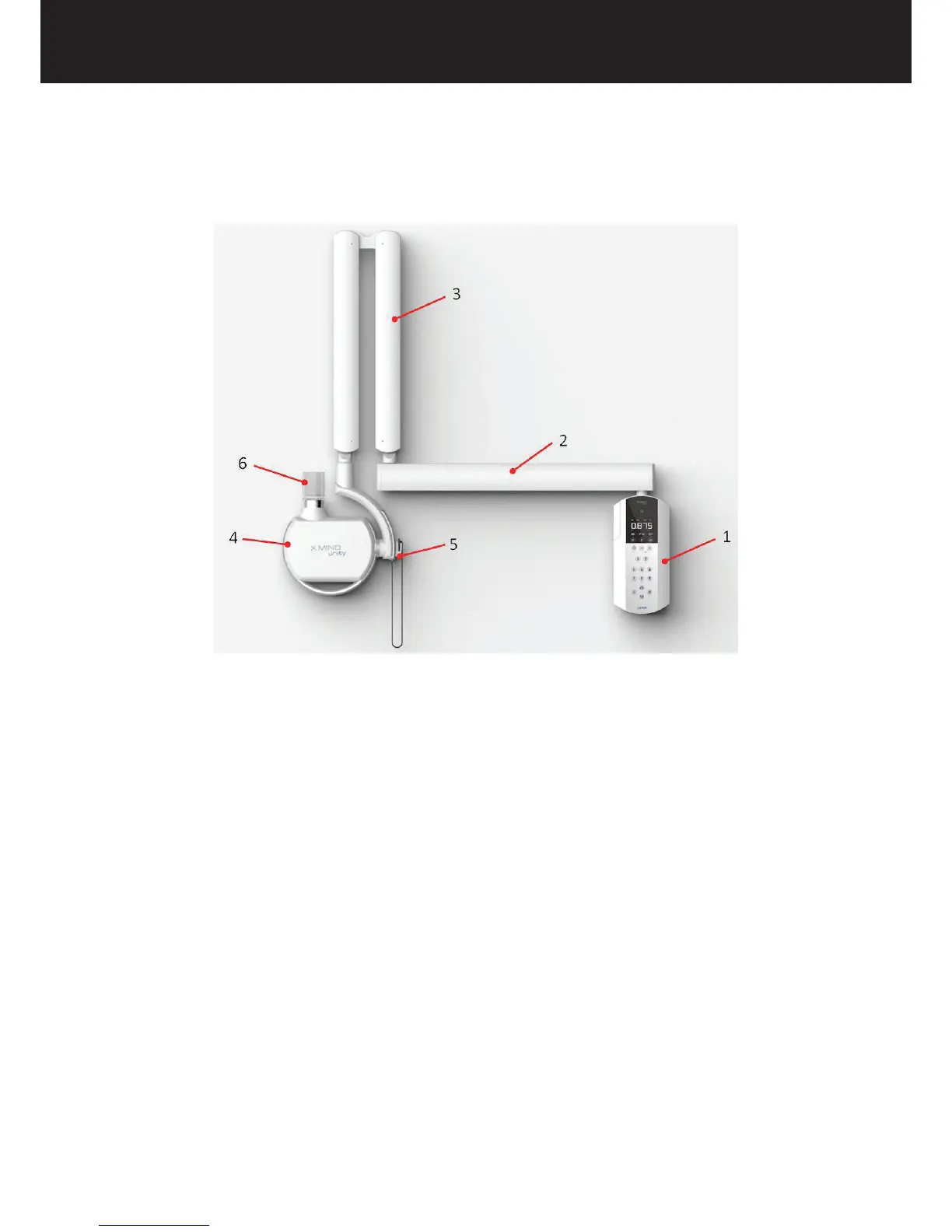

The X-MIND unity x-ray system (Fig.1) consists of the following components:
1 - X-RAY CONTROL UNIT (TIMER)
With it’s clear and highly visible display this component allows for easy and clear selection, of the exposure
settings, the creation of personal settings while alerting you with a visual display and an audible alert in case of
incorrect operation or eventual failures.
This is possible due to the control panel which represents the operator interface between device and operator.
The timer also contains the x-ray exposure switch, which triggers the x-ray when the button is depressed.
The internal sub-mechanical architecture of the X-ray control unit provides the necessary wall framework for
xating the control unit to a wall.
2 - HORIZONTAL BRACKET
The horizontal bracket is available in 3 different lengths and represents the support for the scissor arm. Its
shaft is xed in a dedicated section in the middle of the timer (top or bottom) and allows for 180° movement.
3 - PANTOGRAPH TYPE ARM (SCISSOR)
Due to the new shape and mechanism of the articulating arm, it can be ajusted in height and depth for easy
and precise movement to any position. It is equipped with internal balancing springs and made of extruded
aluminum arms covered by PC-ABS material enclosures.
4 - X-RAY SOURCE ASSEMBLY (TUBEHEAD)
The tubehead of the X-MIND unity contains the x-ray tube, the high voltage board and the high frequency
generator. The high voltage board, the x-ray tube and the expansion chamber are submerged in a sealed alu-
minum chamber containing highly dielectric insulating oil.
The expansion chamber guarantees the expansion of oil over the whole range of operating temperatures
according to the technical specications of the device.
The emission of the x-rays is electronically controlled which guarantee a great accuracy of the loading factors.
The tubehead is equipped with an angle scale indicator and is designed for easy handling and positioning of
the tubehead during the x-ray examination.
