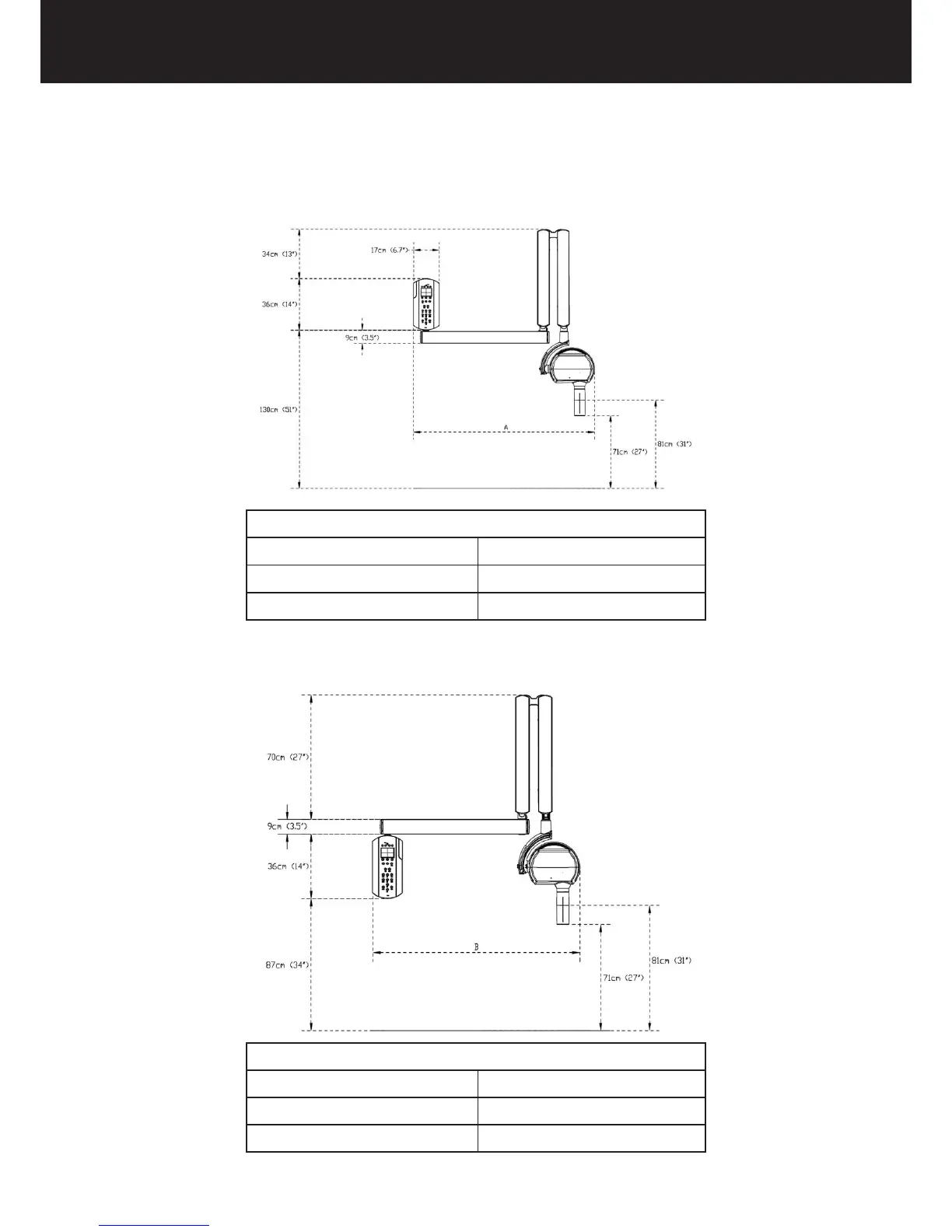

A.3 DIMENSIONS OF THE UNIT
FRONT VIEW (REST POSITION) - BOTTOM MOUNT
A
40cm (16”) bracket 79cm (31”)
80cm (31”) bracket 119cm (46”)
110cm (43”) bracket 149cm (59”)
FRONT VIEW (REST POSITION) - TOP MOUNT
B
40cm (16”) bracket 79cm (31”)
80cm (31”) bracket 119cm (46”)
110cm (43”) bracket 149cm (59”)
