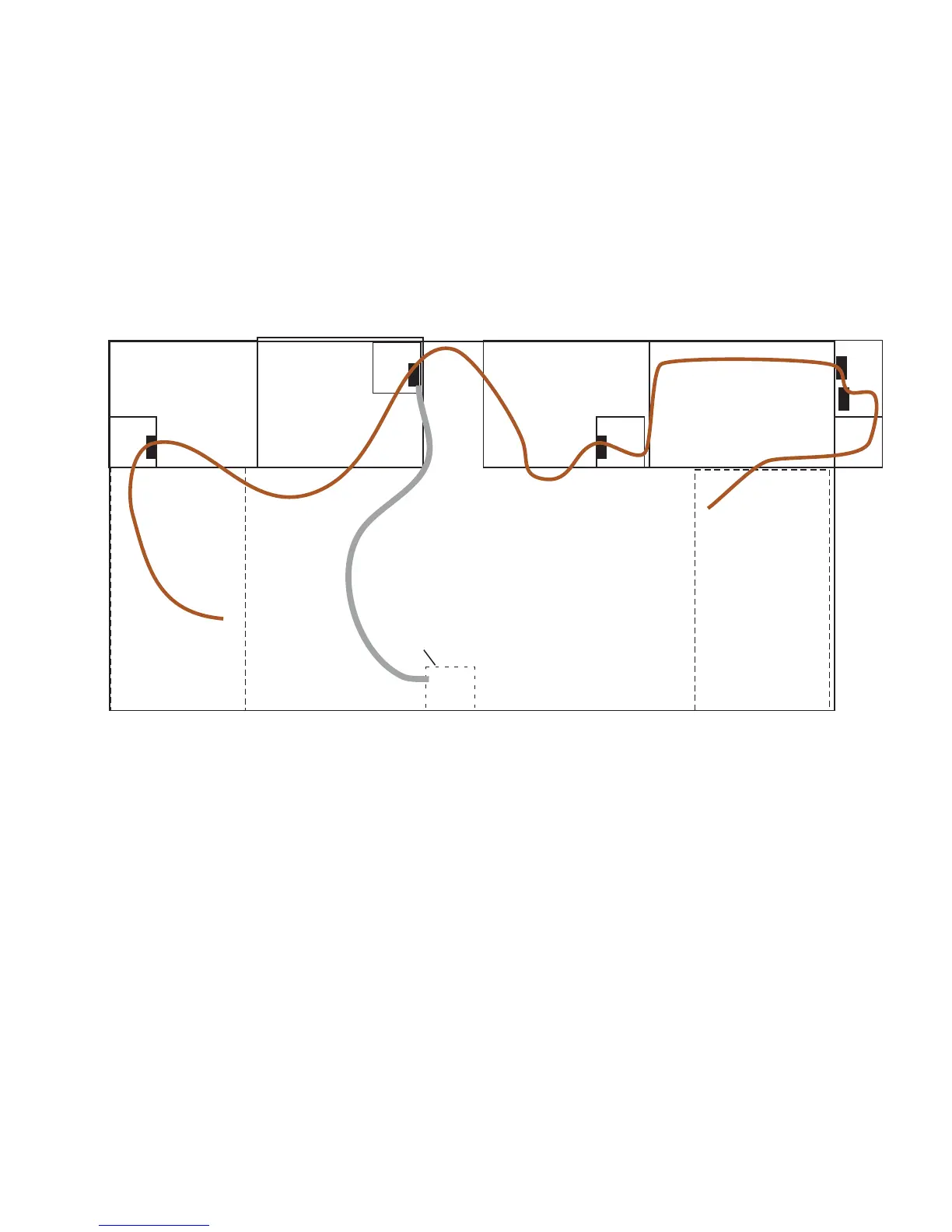

School Gym and Associated Rooms

Bus Length 3500 ft without

adding switch in Scorekeeper Sky Box

Score Keeper Sky Box

400Ft wire

Getting Out of Trouble

Too Long a Bus

In this example of a school Gym the switches and panels

were as shown in a concrete building with limited conduits.

There was no way to put everything on a straight line bus

and keep under 4000ft. The main problem was the Score

Keep’s switch which would have added close to 800 ft to the

bus. (Out and Back.)

The solution was to order an analog switch with a DigiLink

dry Contract input card instead o f a digital switch for that

one location. T h e Analog switch requires two wires plus one

wire per button. (8 Wires for a 6 button switch.) For under

200 ft one can use Cat 5 and for longer use # 18 wire.

Change to Analog Switch and

home run wires to a “DigiLink”
