52 American Dryer Corp. 112144-46
SECTION IX
PROCEDURE FOR FUNCTIONAL CHECK
OF REPLACEMENT COMPONENTS
1. Microprocessor Controller (Computer) Board
a. Upon completing installation of the replacement microprocessor controller (computer) board, reestablish
power to the dryer.
b. Start the drying cycle.

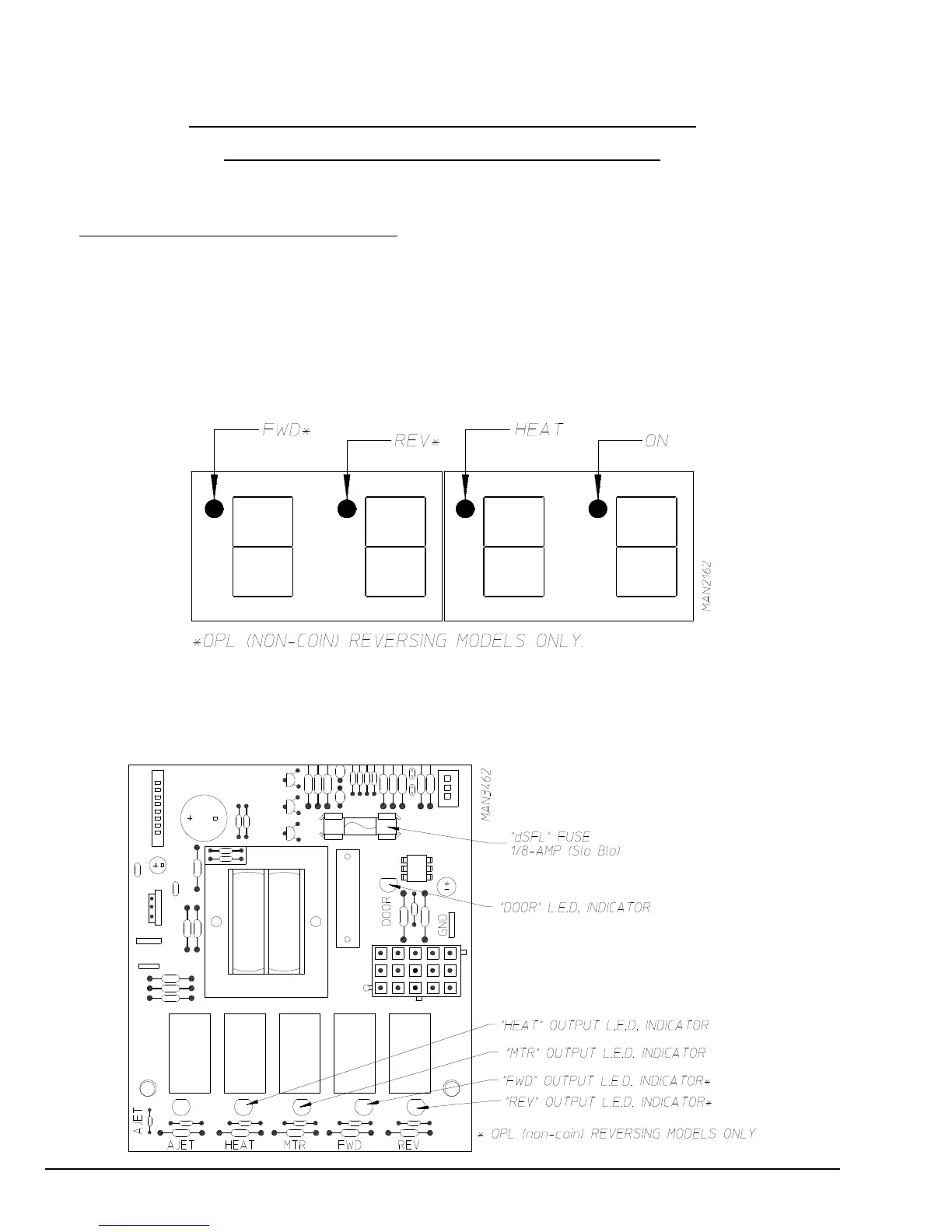

c. Verify that the motor(s) and the heat indicator dots in the microprocessor controller (computer) light emitting
diode (L.E.D.) display are on. (Refer to the illustration below.)
d. Verify that the motor(s), heat, and door indicator lights on the back side of the microprocessor controller
(computer) board are lit. (Refer to the illustration below.)
To Next Page
