30 American Dryer Corporation 450239-4

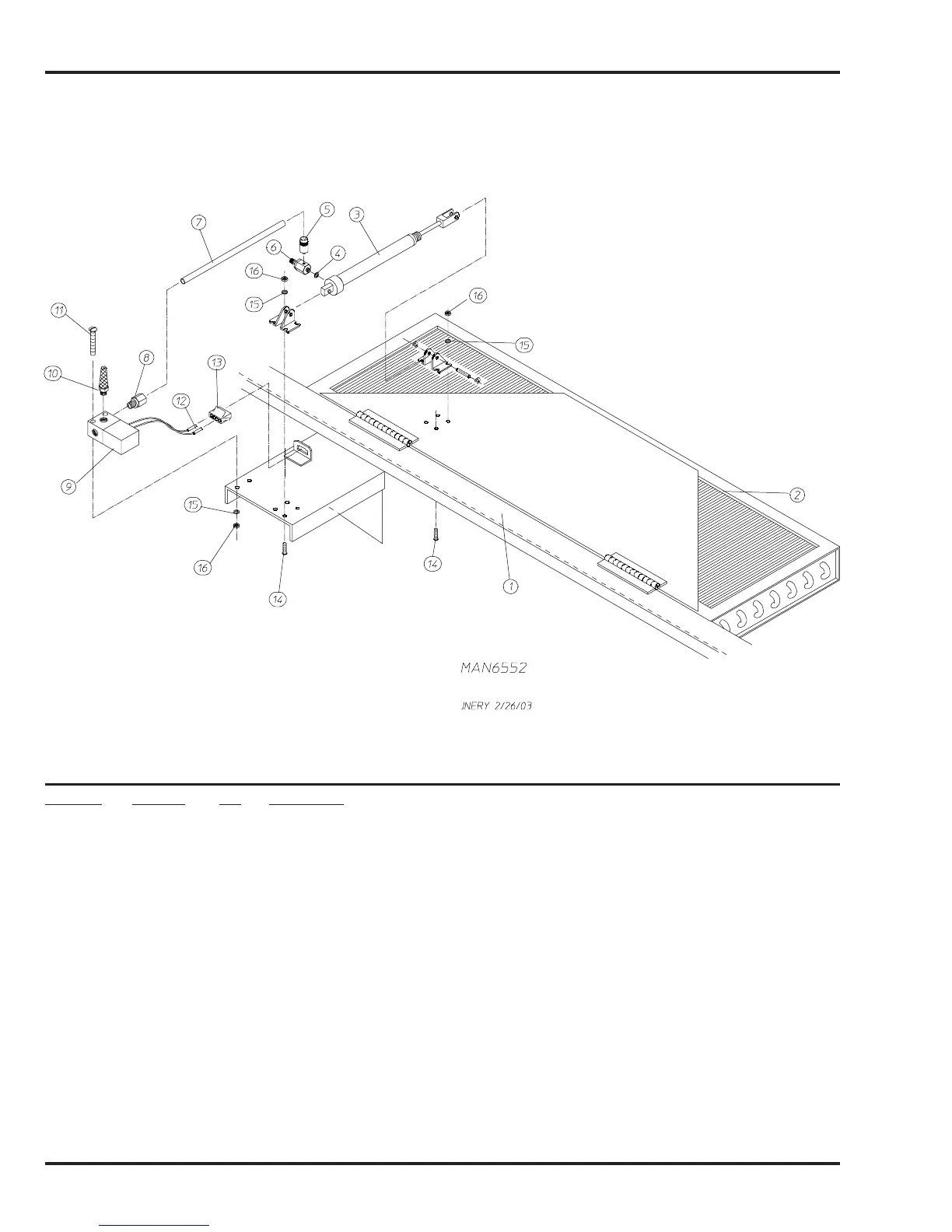

ADS-330 / ADS-320 Steam Damper Assembly
Illus. No. Part No. Qty. Description
18508751ADS-330 / ADS-320 Steam Damper Assembly
21650351ADS-330 / ADS-320 Steam Coil Assembly
3 100540 1 Steam Damper Piston (cylinder) Assembly with Pivots and Clevis
(includes illus. nos. 4 through 10)
41159941Needle Valve Gasket
510047111/4” x 10/32” Connector (male)
61005341Needle Valve
714311011/4” Poly-Flo Tubing
810047211/4” Poly x 1/8” M.P.T. Connector
910049813-Way Micro Valve
10 100520 1 1/8” N.P.T. Silencer (muffler)
11 150002 2 #6-32 x 1” Round Head Machine Screw
12 122701 2 Socket Terminal ONLY
13 122605 1 4-Pin Socket Connector (female)
122801 1 Pin / Socket Extraction Tool … Not Illustrated
14 153560 8 #6-32 x 1/2” Self-Clinching Stud
15 153008 10 #6 Lock Washer
16 152013 10 #6-32 Hex Nut
