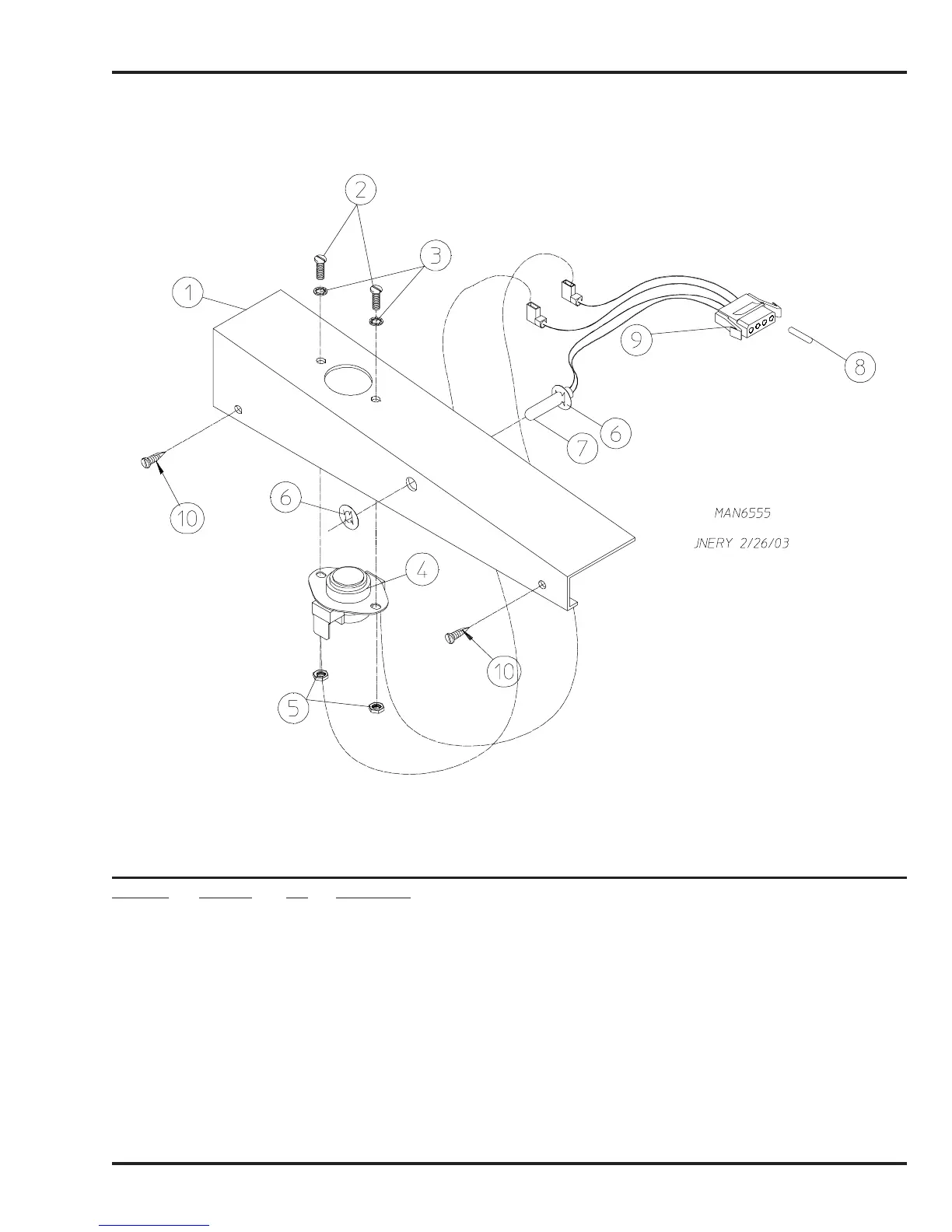

Temperature Sensor Probe Assembly
Illus. No. Part No. Qty. Description
18523241Temperature Sensor Bracket Assembly Complete
(includes illus. nos. 1 through 10)
21500052#6-32 x 1/4” Phillips Head Machine Screw
31530102#6 Star Washer
41301061170° Large Thermostat
51520002#6-32 Hex Nut
615400721/4” Tinnerman Push-On Fastener
78523211Temperature Sensor Probe Assembly
(includes illus. nos. 7 through 9)
81227014Socket Terminal ONLY
912260514-Pin Socket Connector (female)
10 150301 2 #8-18 x 7/16” Phillips Pan Head TEK Screw
122801 1 Pin / Socket Extraction Tool … Not Illustrated
