ADC AD-330 - Burner Box; Piping Assemblies

28 American Dryer Corporation 450239-4

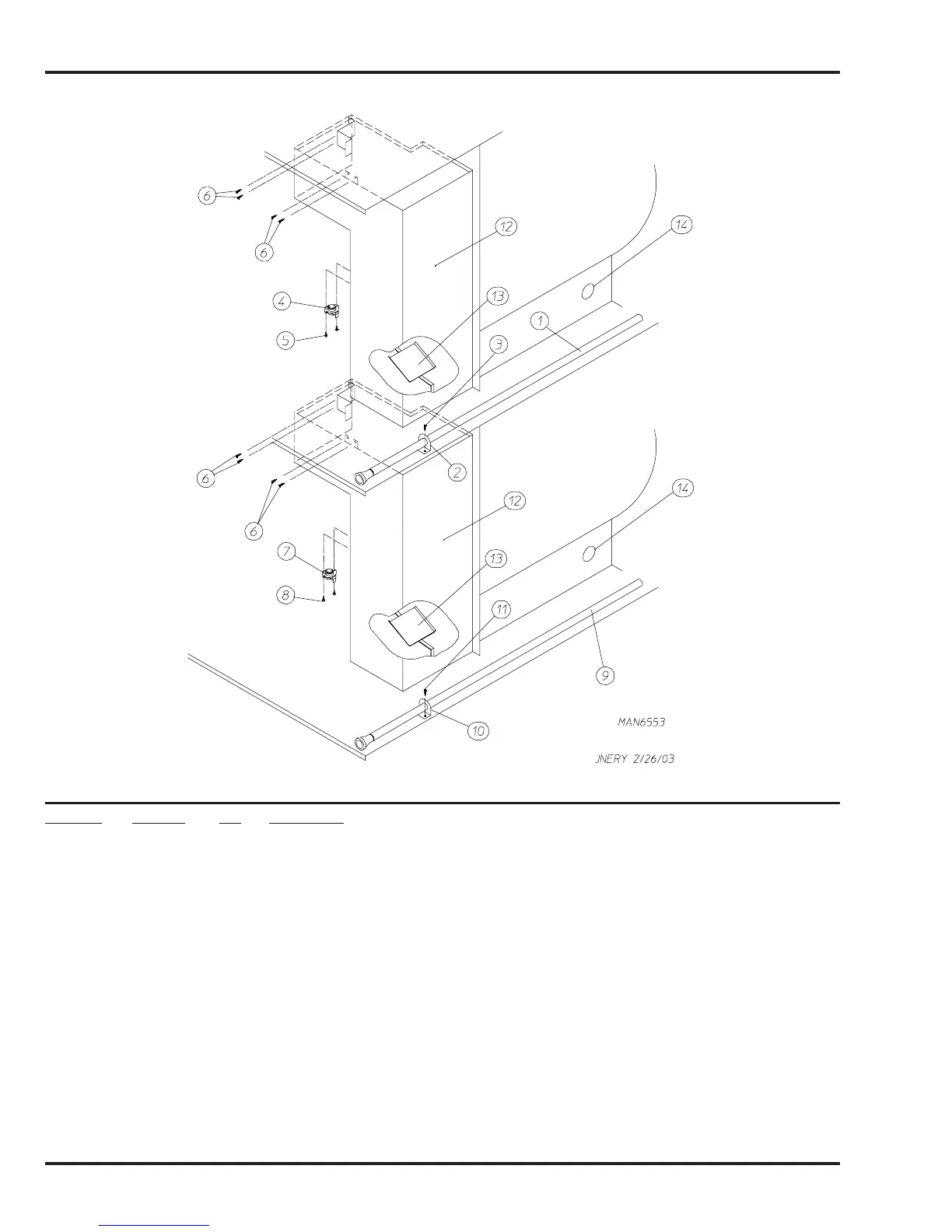

Burner Box / Piping Assemblies
Illus. No. Part No. Qty. Description
11428051ADG-330 1/2” x 34-1/2” Pipe
142809 1 ADG-320 1/2” x 29-1/8” Pipe
23187001Pipe Bracket
31503002#10-16 x 1/2” Hex Washer TEK Screw
41304031330° Burner Hi-Limit Thermostat
51503002#10-16 x 1/2” Hex Washer TEK Screw
61503098#10-16 x 1/2” Hex Head TEK Crimptite Screw
71304031330° Burner Hi-Limit Thermostat
81503002#10-16 x 1/2” Hex Washer TEK Screw
91428051ADG-330 1/2” x 34-1/2” Pipe
142809 1 ADG-320 1/2” x 29-1/8” Pipe
10 318700 1 Pipe Bracket
11 150300 2 #10-16 x 1/2” Hex Washer TEK Screw
12 850742 2 ADG-330 / ADG-320 Burner Box without Flame Spreader
13 318048 2 ADG-330 Flame Spreader
14 –––––– – Sail Switch
(refer to Sail Switch Assembly on page 31)
