450239-4 www.adclaundry.com 29

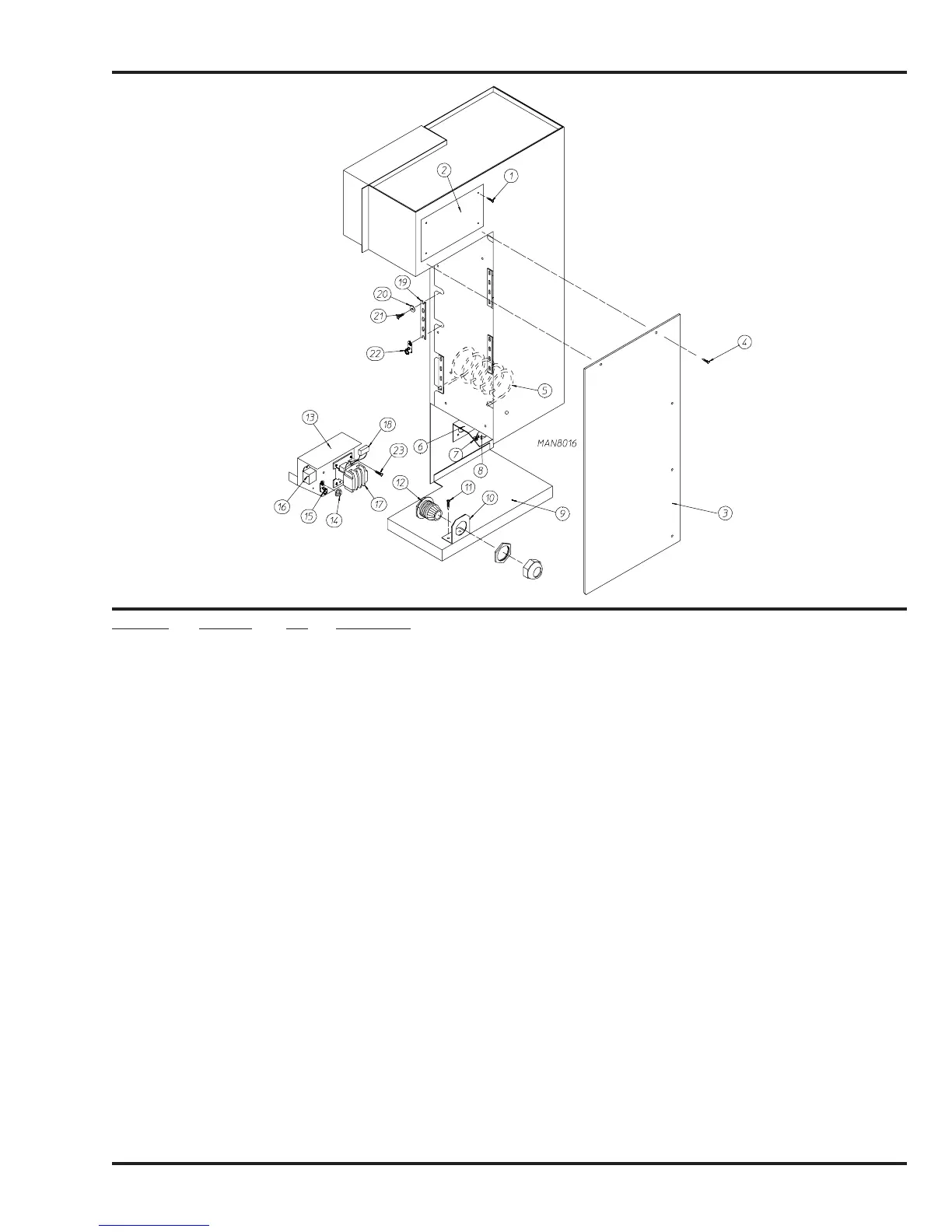

15 kW Electric Oven Assembly
Illus. No. Part No. Qty. Description
11503004#10-16 x 1/2” Hex Washer TEK Screw
23180651Burner Box Clean Out Plate
33206561Back Plate Cover
41503025#6 x 3/8” Phillips Pan Head TEK Screw
5––––––6Heating Elements
(refer to 15 kW Electric Oven Component Chart on page 38)
63197031Hi-Limit Bracket
71510012#8-32 Pal Nut
81304001290° Thermostat
93206531Stainless Steel Electric Reflector
10 318651 1 Oven Wire Bracket
11 150300 2 #10-16 x 1/2” Hex Washer TEK Screw
12 137027 1 Strain Relief
13 320659 1 Contactor Bracket
14 152014 1 1/4-20 Free Spin Wash Nut
15 121010 1 L-70 Terminal Lug
16 131406 1 Relay SPDT 24VAC
17 –––––– 1 Oven Contactor
(refer to 15 kW Electric Oven Component Chart on page 38)
18 824828 1 R.C. Network with Connectors
19 121011 * Bus Bar
20 153009 15 #10 Star Washer
21 150212 15 #10-32 x 5/16” Phillips Pan Head Stainless Steel Screw
22 –––––– * Terminal Lug
(refer to 15 kW Electric Oven Component Chart on page 38)
23 150309 4 #10-16 x 1/2” Hex Head TEK Crimptite Screw
*As required.
