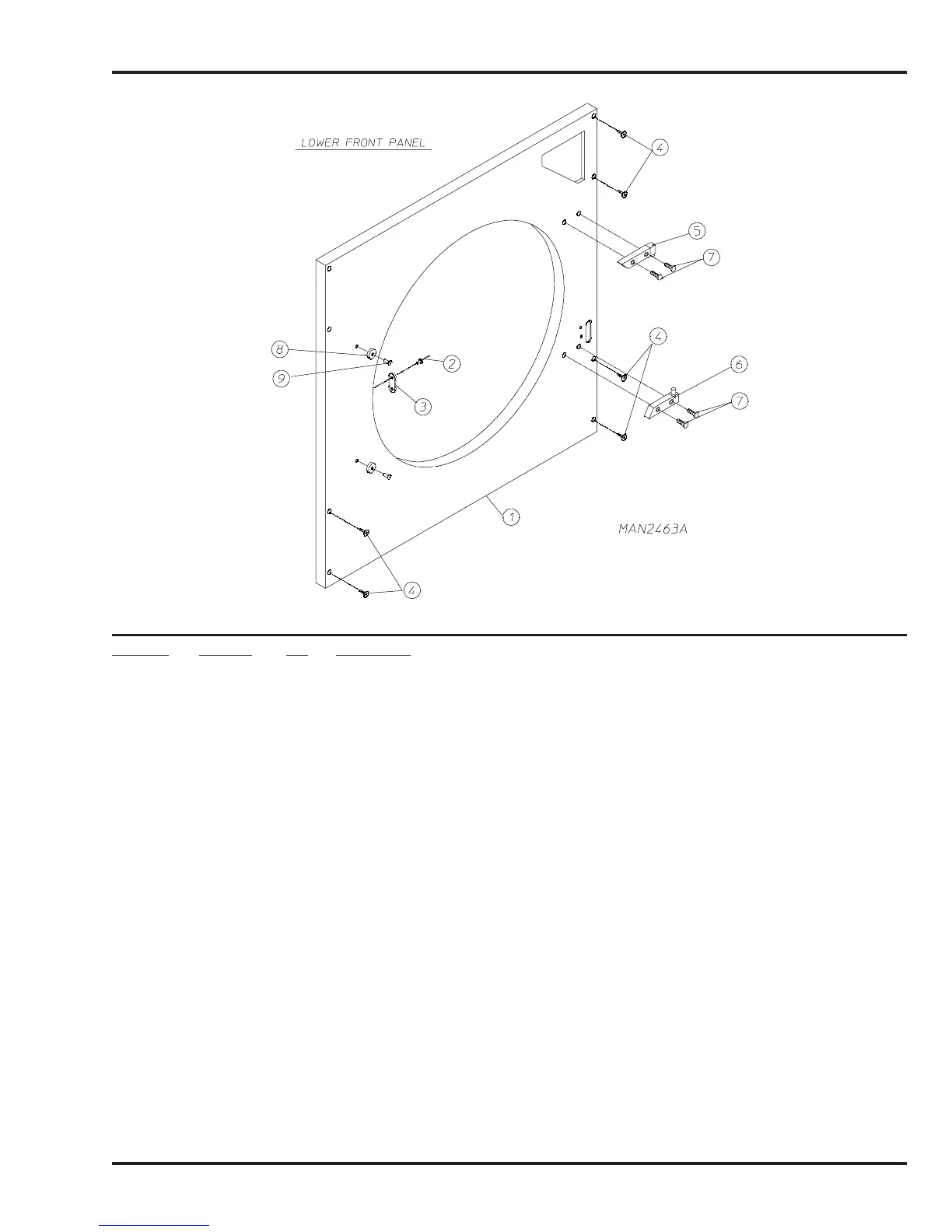

AD-330 / AD-320 Cold Rolled Steel Door Bottom Front Panel
Illus. No. Part No. Qty. Description
18834051AD-330 / AD-320 White Bottom Front Panel Assembly (for coin models Only)
(includes illus. nos. 1 through 3)
883407 1 AD-330 / AD-320 Ivory Bottom Front Panel Assembly (for coin models Only)
(includes illus. nos. 1 through 3)
883406 1 AD-330 / AD-320 Coral Blue Bottom Front Panel Assembly (for coin models Only)
(includes illus. nos. 1 through 3)
883414 1 AD-330 / AD-320 Stainless Steel Bottom Front Panel Assembly (for coin models Only)
(includes illus. nos. 1 through 3)
883411 1 AD-330 / AD-320 White Non-Coin Bottom Front Panel Assembly
(includes illus. nos. 1 through 3)
883413 1 AD-330 / AD-320 Ivory Non-Coin Bottom Front Panel Assembly
(includes illus. nos. 1 through 3)
883412 1 AD-330 / AD-320 Coral Blue Non-Coin Bottom Front Panel Assembly
(includes illus. nos. 1 through 3)
883415 1 AD-330 / AD-320 Stainless Steel Non-Coin Bottom Front Panel Assembly
(includes illus. nos. 1 through 3)
215421521/8” Pop Rivet
31703301Friction Door Latch
41503138#10-16 x 1/2” TORX PLUS
®
BTN Head Screw
58811521Black Top Hinge Block Assembly
(includes illus. nos. 5 and 7)
68811511Black Bottom Hinge Block Assembly
(includes illus. nos. 6 and 7)
715044541/4-20 x 3/4” Black Screw
810200420.75 Round Door Magnet
91522232#10-32 x 0.5 TORX
®
Screw
