22 American Dryer Corporation 450239-4

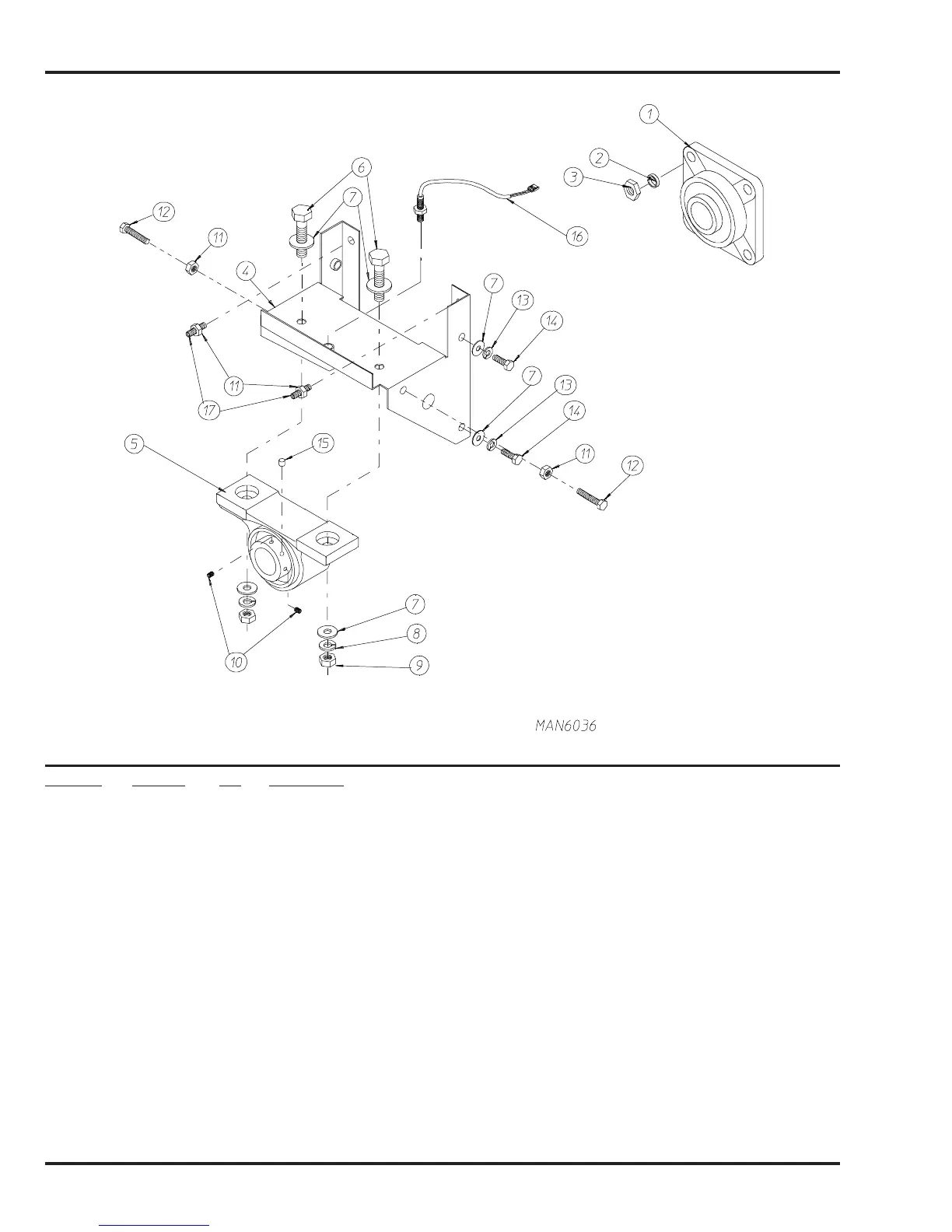

Tumbler Bearing Assembly
Illus. No. Part No. Qty. Description
188020311-3/8” Flange Bearing ONLY
215300543/8” Lock Washer
315200543/8-16 Hex Nut
4 883387 1 Bearing Assembly Complete for Models Mfd. with Rotational Sensor
(includes illus. nos. 4 through 17)
882543 1 Bearing Support ONLY
588077911-3/8” Pillow Block Bearing
615060123/8-16 x 2” Hex Bolt
715300483/8” Flat Washer
815300523/8” Lock Washer
915200523/8-16 Hex Nut
10 154326 2 5/16-24 x 3/8” Setscrew (black)
11 152004 4 5/16-18 Hex Nut
12 150621 2 5/16-18 x 1-1/2” Tap Bolt
13 153002 4 5/16” Lock Washer
14 150501 4 5/16-18 x 3/4” Tap Bolt
15 102120 1 Sintered 8 Magnet
16 822735 1 Rotational Sensor Assembly
17 150610 2 5/16-18 x 1-1/2” Allen Setscrew
