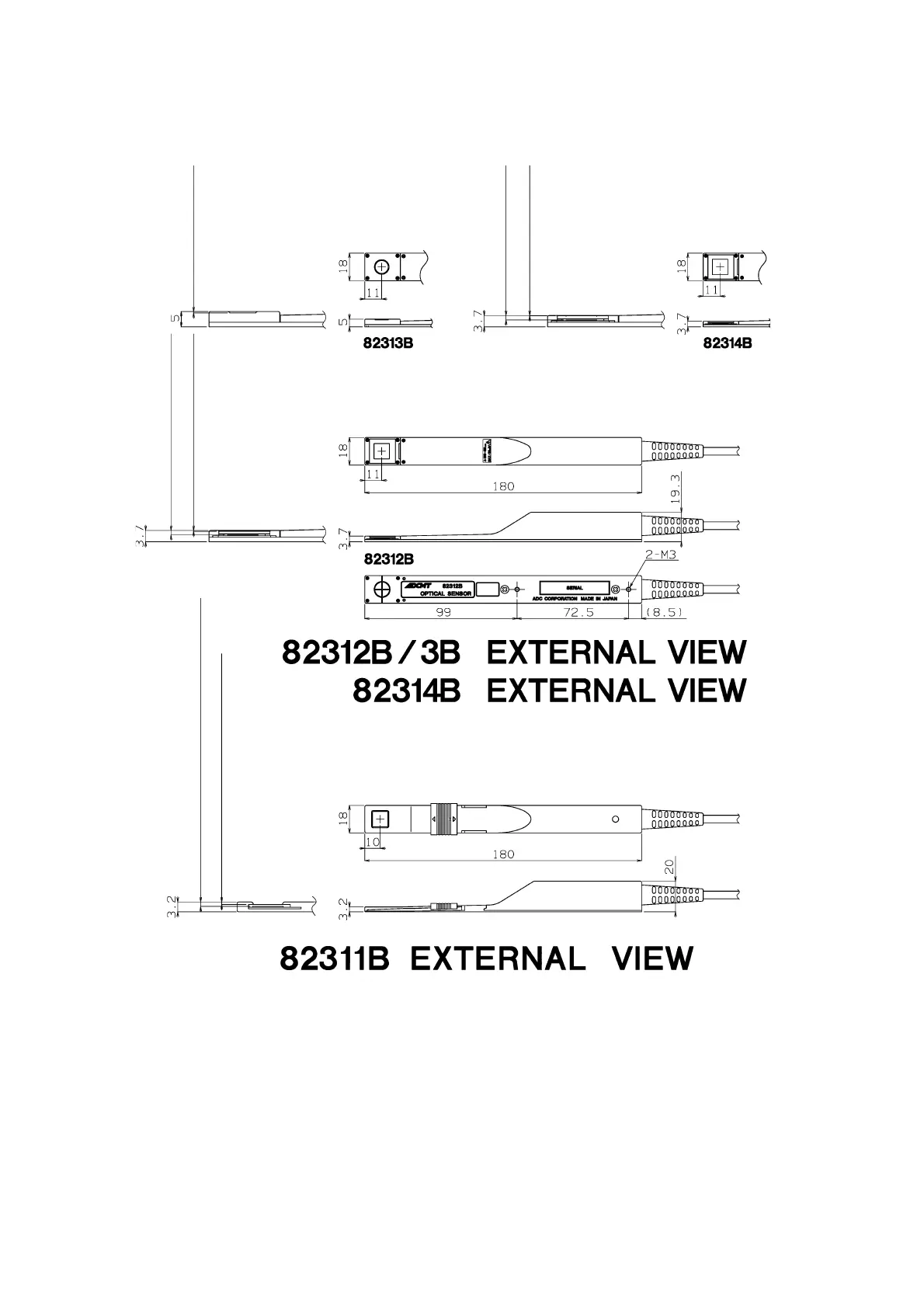

82311B/82312B/82313B/82314B DIMENSIONAL OUTLINE DRAWING
Distance to the light receiving element surface 1.8 mm
Distance to the cover glass surface 0.8 mm
Distance to the cover glass surface 0.3 mm
Distance to the light receiving element
surface 1.4 mm
Distance to the light receiving
element surface 0.5 mm
Distance to the cover glass surface 0.1 mm
Distance to the light receiving element surface 1.4 mm
Unit : mm
NOTE
This drawing shows external dimensions
of this instrument.
The difference in products and options
used can cause a change in the appearance
of the instrument.
