8230 Optical Power Meter Operation Manual
6.2.1 How to Connect the Instrument
6-6
6.2.1 How to Connect the Instrument

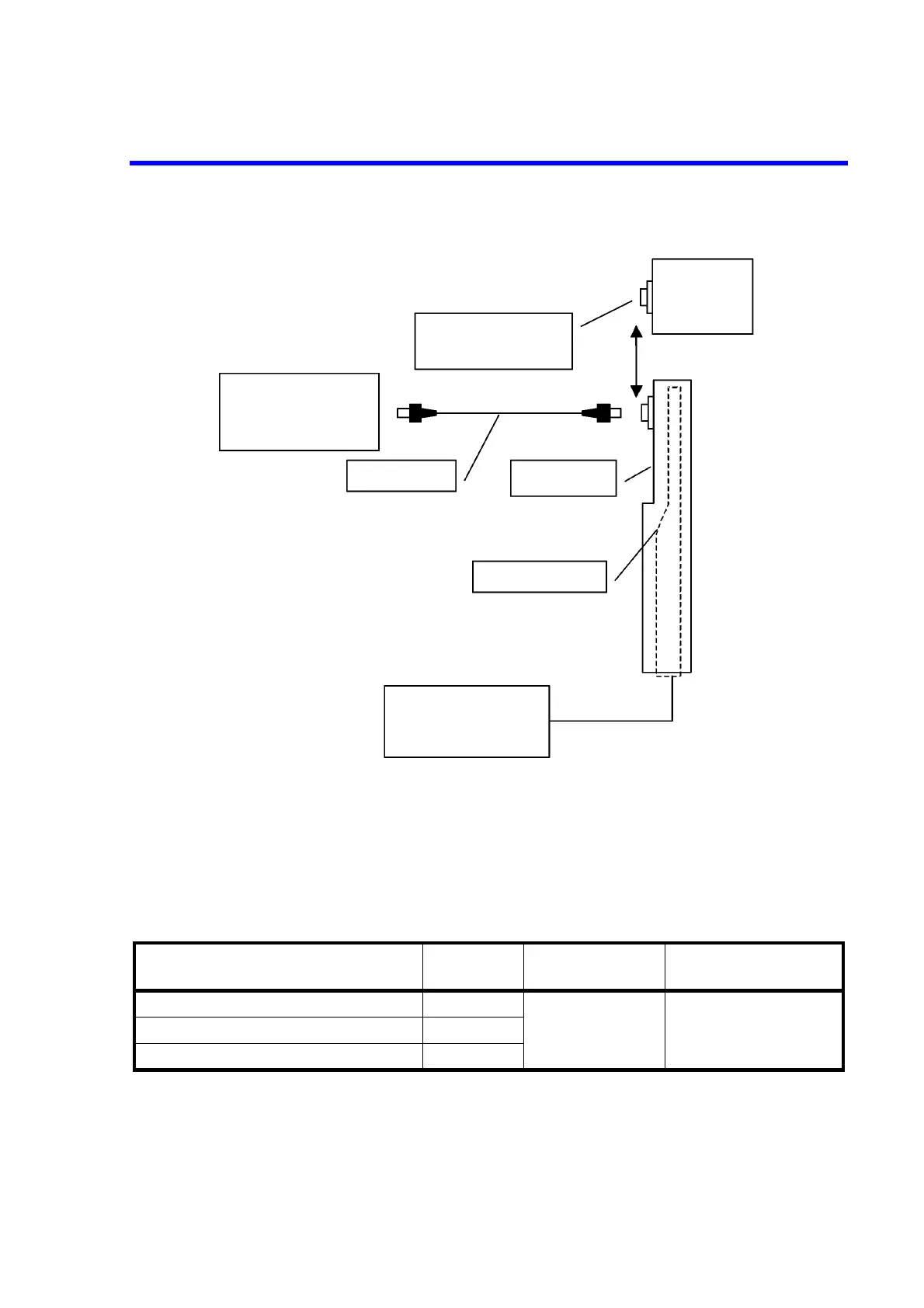

Figure 6-2 Connection Diagram for the Optical Sensor Performance Test
6.2.2 Calibration Point and Judgment Criteria
Table 6-5 Judgment Criteria for the Optical Sensor
Product
Light source
(Wavelength)
Light source output
(Set value)
Judgment Criteria
82311B/82321B 780 nm 1 mW Must be 1.6% or less of
the read value of the stan-
dard optical power meter
82312B/82322B/82314B/82314BW/82324B 405 nm
82313B/82323B 650 nm
When evaluating the calibration wavelength option, apply the specifications of the relevant light source wave-
length.
Sensor for the standard
optical power meter
LD light source
Optical fiber
FC adaptor
Tested optical sensor
Optical power meter
8250A/8230
