8230E Optical Power Meter Operation Manual

3. HOW TO PERFORM MEASUREMENTS

3-1

3. HOW TO PERFORM MEASUREMENTS

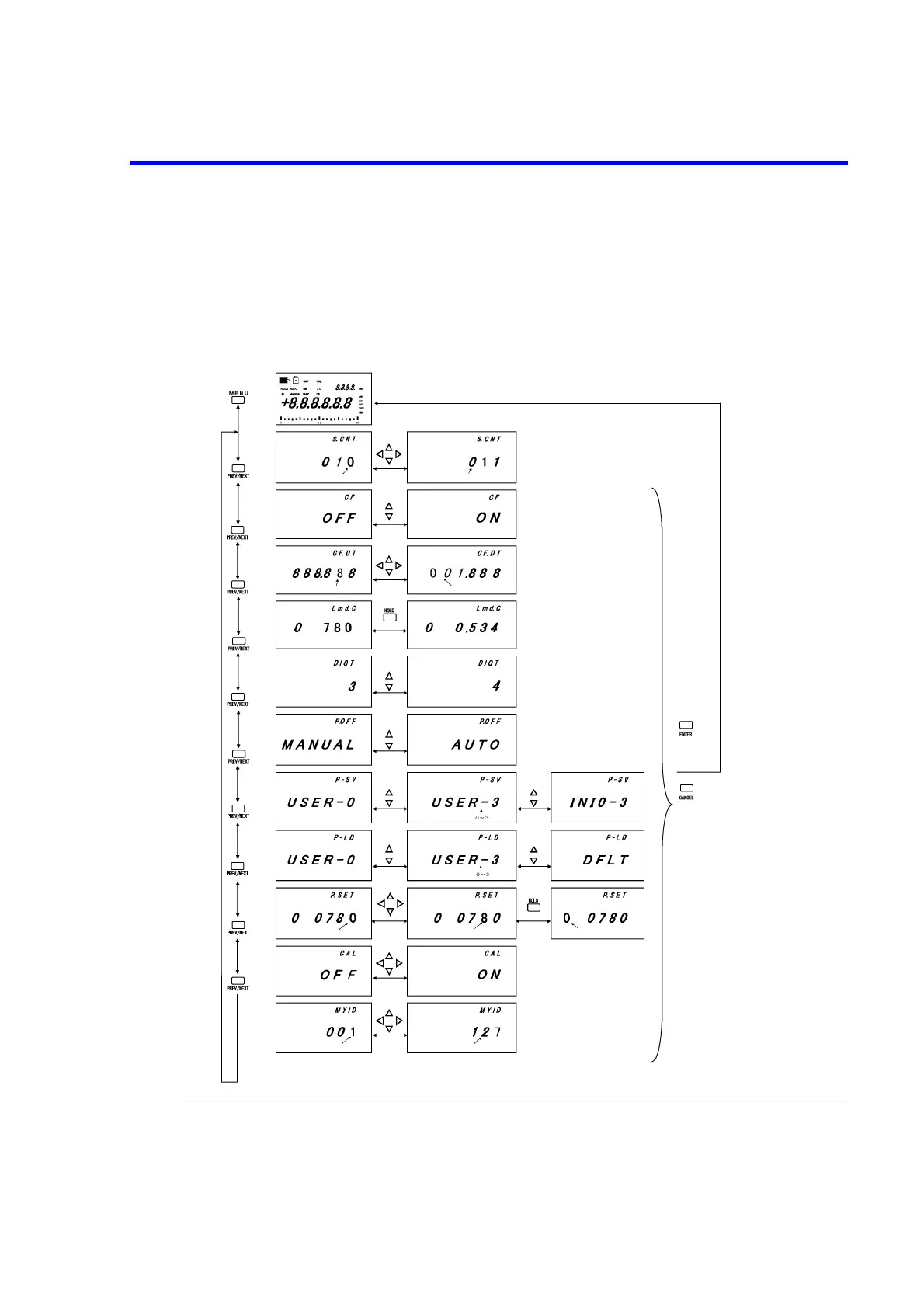

3.1 Menu Map

NOTE:

1. If, after changing each item's setting, the PREV/NEXT key is used to move to the next item, the setting is not

saved. Each setting is saved only when the ENTER key is pressed.

Saves the new settings

and closes the menu.

Cancels the new settings

and closes the menu.

1 Number of

smoothing times

3 CF value

4 Calibration

wavelength

6 Auto power off

7 Parameter save

8 Parameter load

9 Wavelength

Preset *3

Blinking (cursor)

2CF

10 CAL

11 MYID

Blinking (cursor)Blinking (cursor)

*1 The settings are saved or loaded by pressing the

[ENTER] key and “DONE” is displayed at the end.

*2 For more information, refer to 3.5, “Wavelength Preset.”

*3 Wavelength preset

function is applied to the software revision B00 or later.

*4 If [HOLD] is pressed, the calibration value for each

calibration wavelength is displayed for approximately two

seconds.

Blinking (cursor)

5 Number of

display digits

(C00 or later)
