8230E Optical Power Meter Operation Manual
6.2.1 How to Connect the Instrument
6-6
6.2.1 How to Connect the Instrument

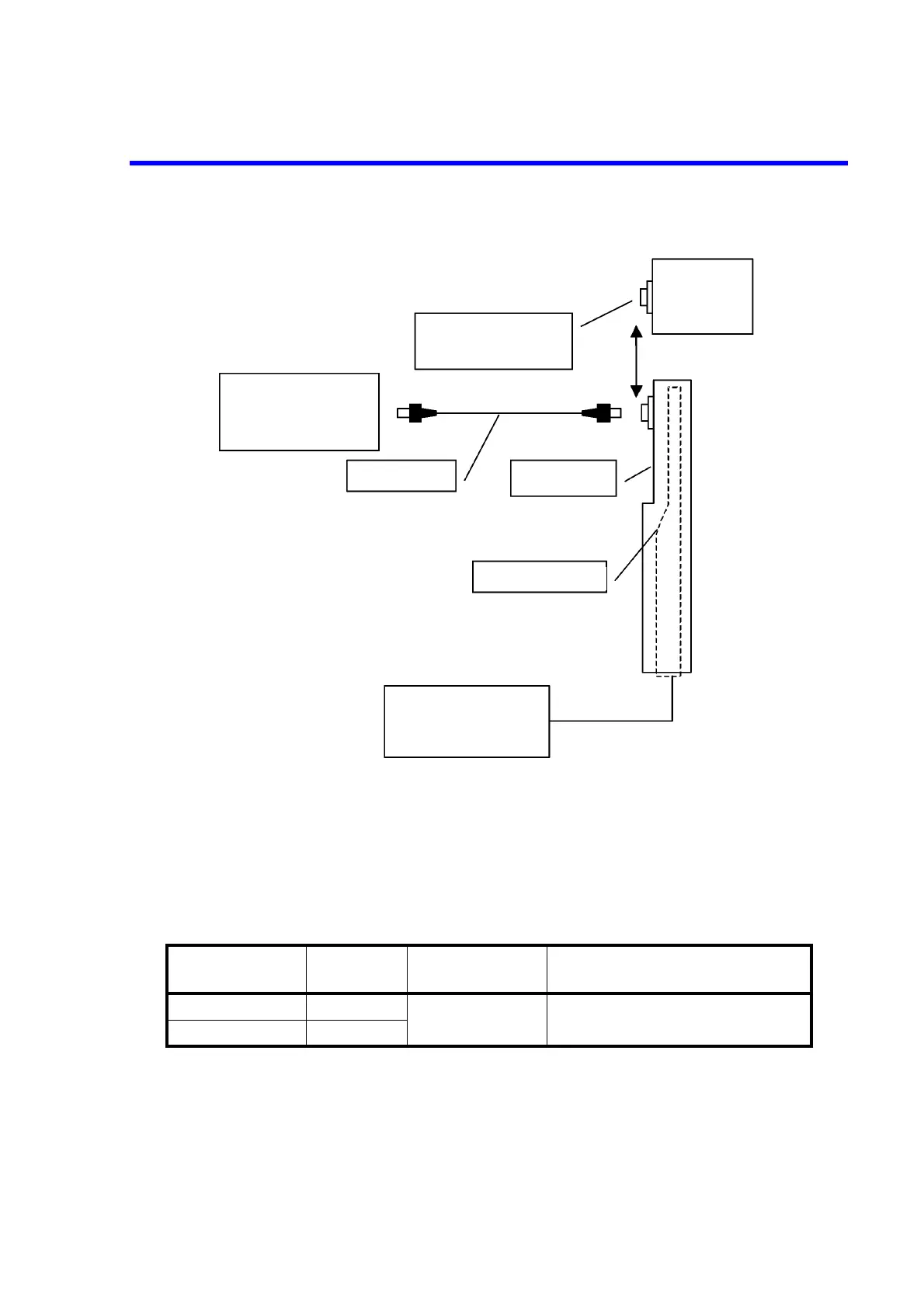

Figure 6-2 Connection Diagram for the Optical Sensor Performance Test
6.2.2 Test Point and Judgment Criteria
Table 6-5 Judgment Criteria for the Optical Sensor
Product
Light source
(Wavelength)
Light source output
(Set value)
Judgment Criteria
82311B/82321B 780 nm 1 mW Must be 1.6% or less of the read value
of the standard optical power meter
82313B/82323B 650 nm
When evaluating the calibration wavelength option, apply the specifications of the relevant light
source wavelength.
Sensor for the standard
optical power meter
LD light source
Optical fiber
FC adaptor
Tested optical sensor
Optical power meter
8230E/8230/8250A
