115

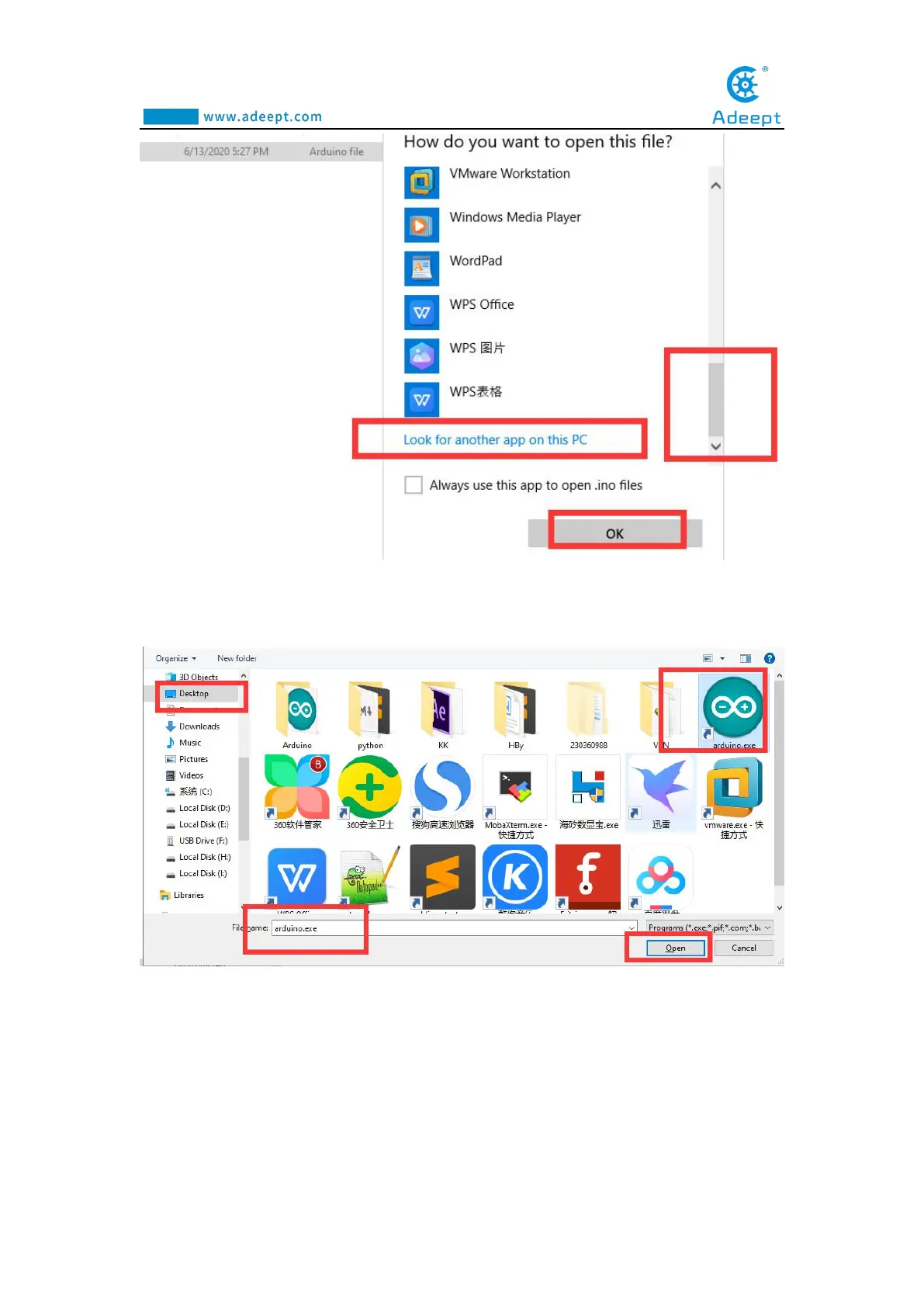

(8) Find the Arduino software on Desktop or the place where you installed the

Arduino software, select it and click "Open".

(9) Then the Arduino software opens the file "block_py.ino".
