Introduction of Adeept Arm Drive Board

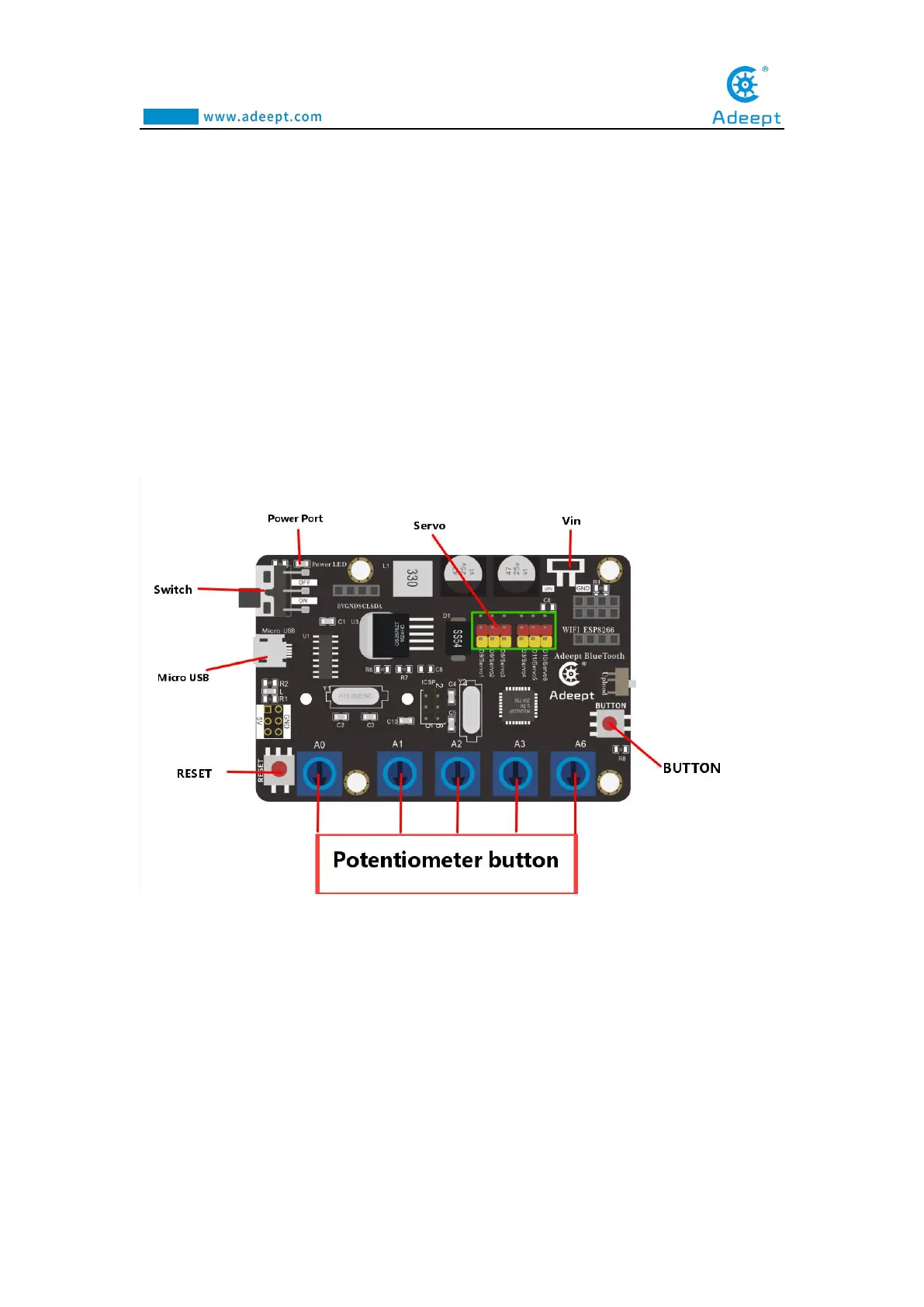

The Adeept Arm Drive Board development board is the main component of the
robotic arm. Similar to the Arduino UNO development board, it is also an easy-to-use
open source electronic prototyping platform, including the hardware part and the
software part (Arduino IDE). The Adeept Arm Drive Board development board is
mainly composed of a microcontroller (MCU), a universal input/output interface, etc.
You can understand it as a microcomputer motherboard. We will introduce the Adeept
Arm Drive Board development board in detail.
【
1
】
Power LED
：
Power LED is used to indicate the power status of the system. The LED is on,
indicating that the system is powered on and ready to run; the LED is off, indicating
that the system is not powered on.
【
2
】
Servo
：
It is the pin interface of Servo.
【
3
】
Vin
（
6-24V
）：
