90

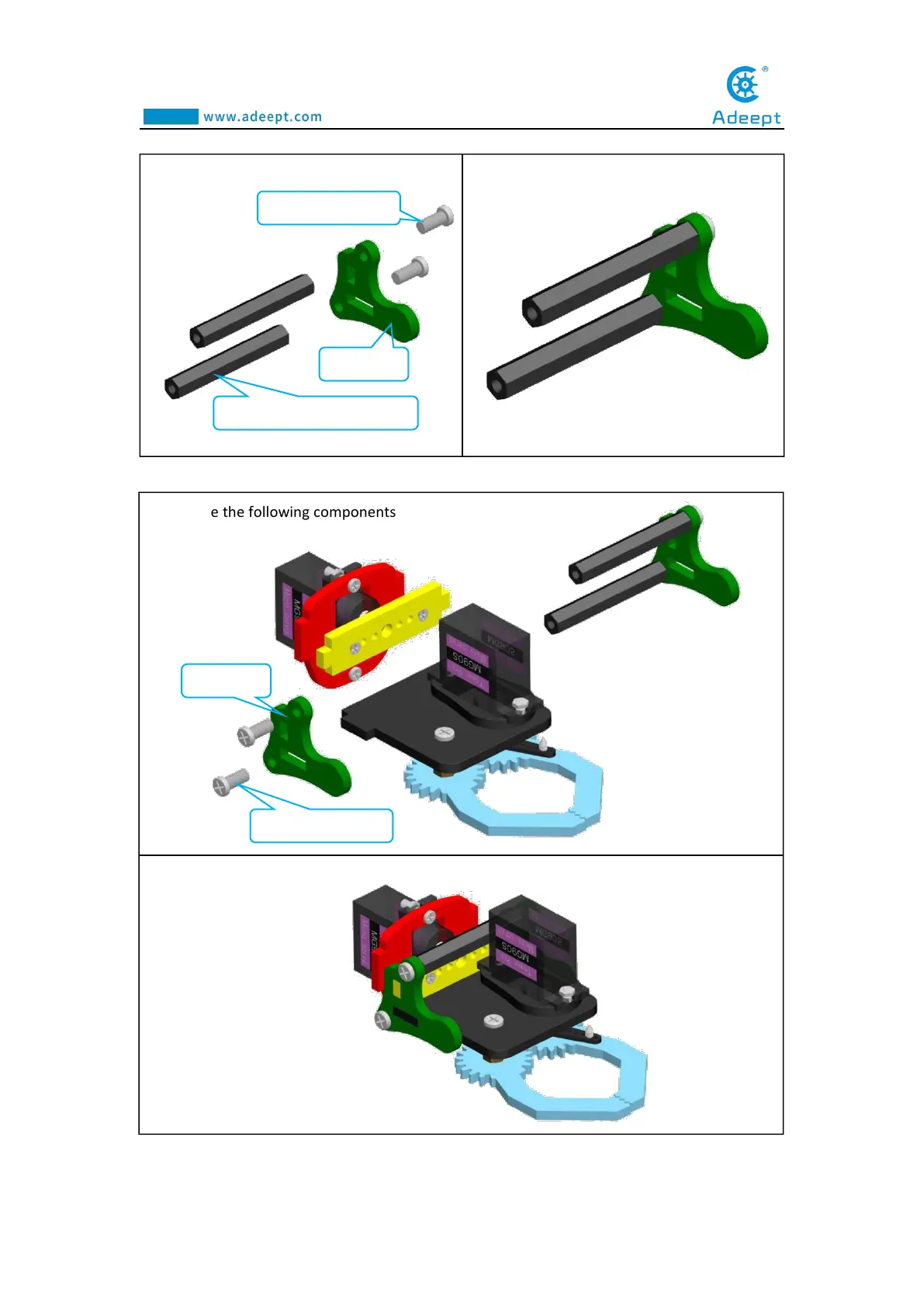

Effect diagram after assembling

Assemble the following components

Assemble the following components

Effect diagram after assembling

8. Fix one A14 with two M3*40 Nylon Standoffs.

9. Complete assembly of the clamp section.

M3*8 5Screw x2

M3*8 Screw x2

A14 x1

M3*40 Nylon Standoff x2

A14 x1
