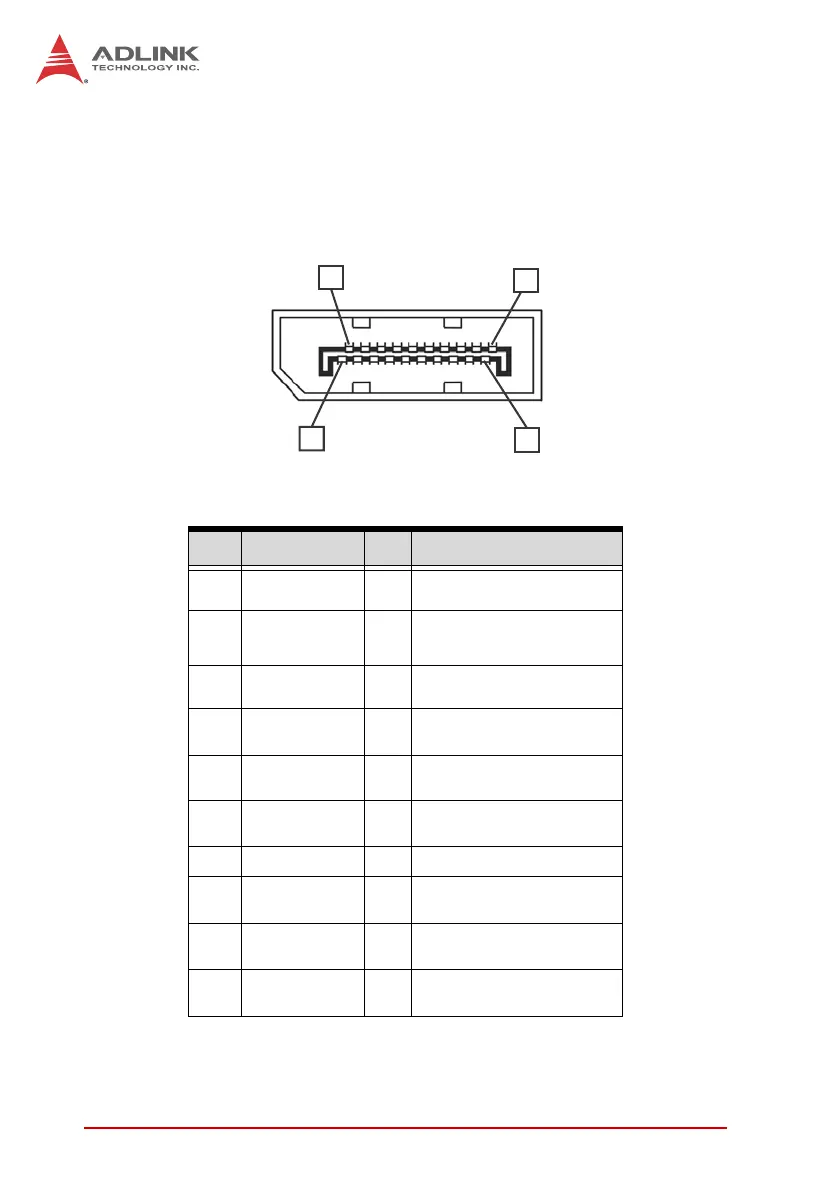

1.6.4 Dual DisplayPort Connector
A dual DisplayPort connector on the front panel provides connec-
tion to VGA, DVI, HDMI monitor via DisplayPort to VGA adapter
cable, to DVI adapter cable, and to HDMI adapter cable.
Table 1-3: DisplayPort Pin Assignment
Pin Signal Pin Signal
1 CN_DDPx0+ 11 GND
2 GND 12 CN_DDPx3-
3 CN_DDPx0- 13 CN_DDPx_AUX_SEL
4 CN_DDPx1+ 14 CN_DDPx_CONFIG2
5 GND 15 CN_DDPx_AUX+
6 CN_DDPx1- 16 GND
7 CN_DDPx2+ 17 CN_DDPx_AUX-
8 GND 18 CN_DDPx_HPD
9 CN_DDPx2- 19 GND
10 CN_DDPx3+ 20 +V3.3_DDPx_PWR
19
1
2
20
