14 Introduction
X Preboot eXecution environment (PXE) flash interface
X 9 KB jumbo frame support
X LAN Teaming

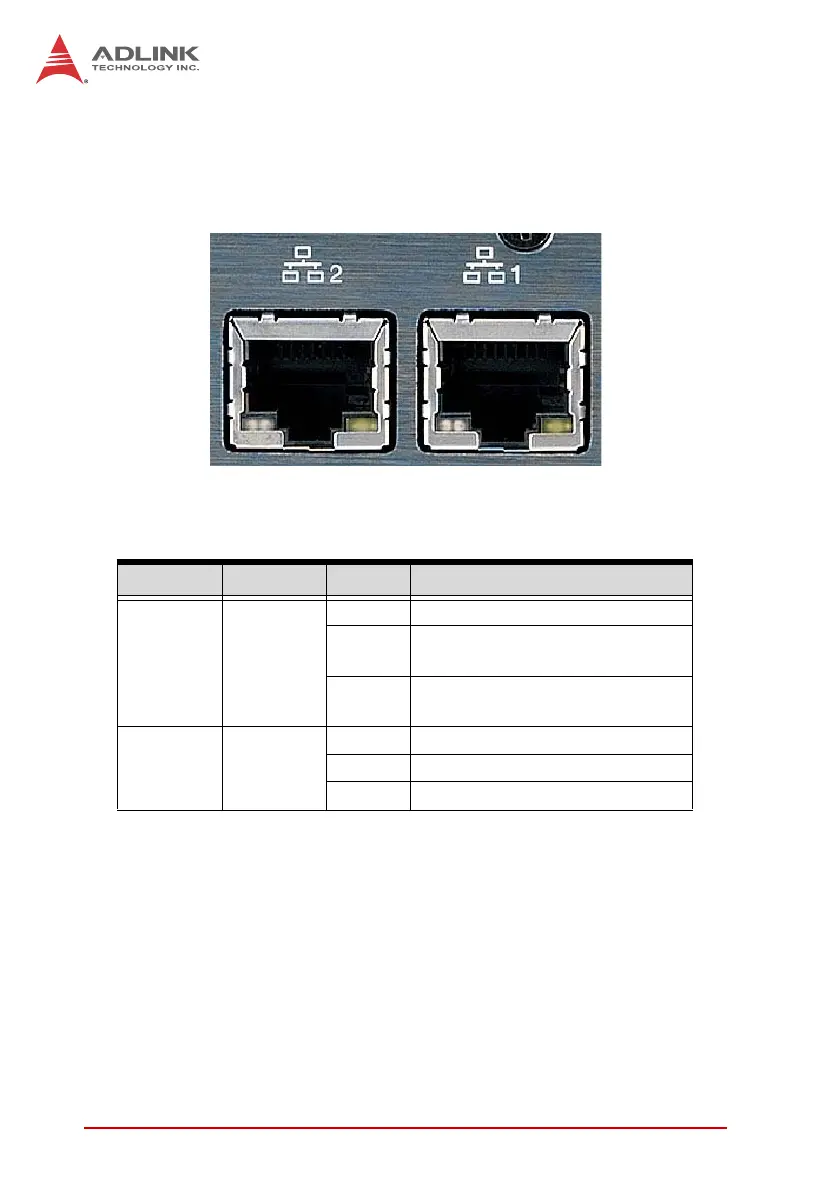

Figure 1-7: Gigabit Ethernet Ports
Table 1-6: Gigabit Ethernet Port LED Function
1.6.7 USB 3.0 Ports
The six USB 3.0 ports supporting Type A connection are all com-
patible with SuperSpeed, Hi-Speed, full-speed and low-speed
USB devices, with support for multiple boot devices, including
LED LED Color Status Description
Active/Link Yellow
OFF Ethernet port is disconnected
ON
Ethernet port is connected with no
activity
Flashing
Ethernet port is connected and
active
Speed
Green/
Orange
OFF 10 Mbps
Green 100 Mbps
Orange 1000 Mbps
