26 Introduction
1.8.6 Extendable Power/Reset/LED
The MXE-5400 provides internal LED connectors powering indica-
tors for the Power button (from CN40), Reset button (CN39), and
Power for external controllable devices (CN41), assigned as
shown.

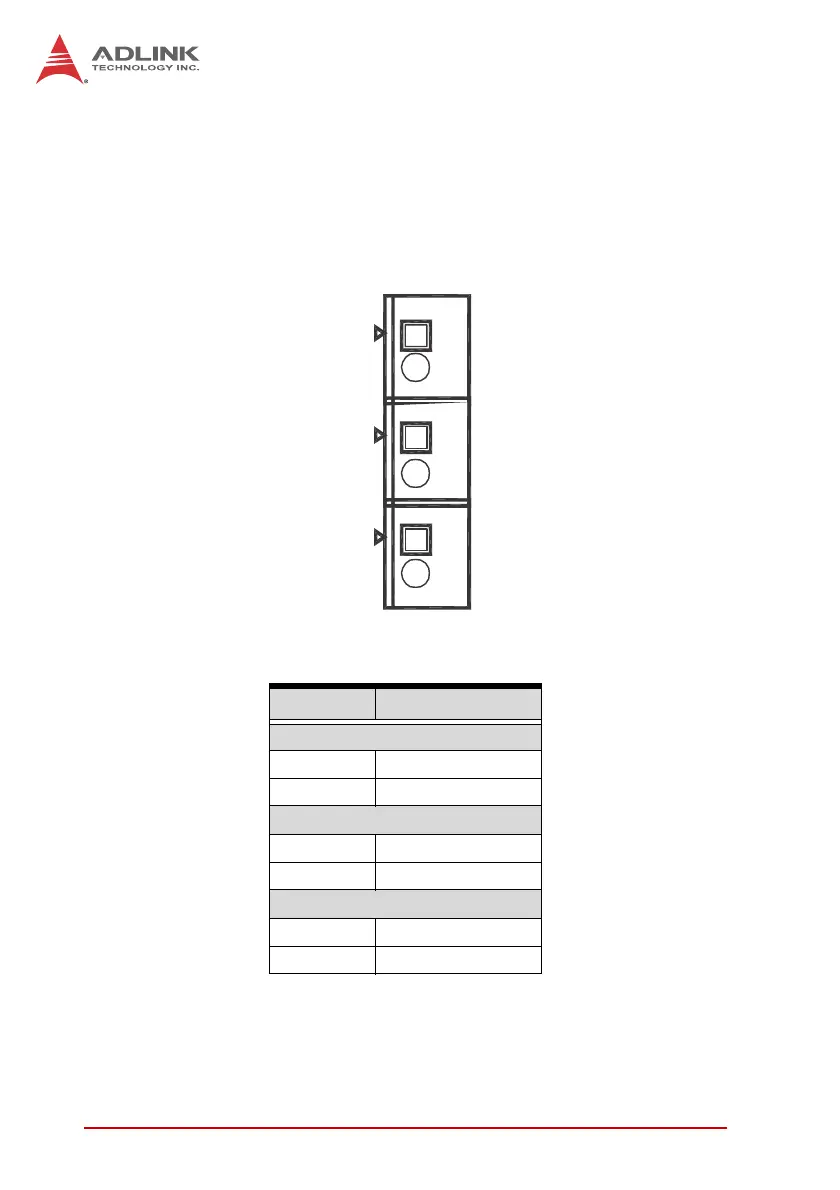

Figure 1-21: Extendable Power/Reset/LED Configuration
Table 1-15: Extendable Power/Reset/LED Connectors Pin Assignments
Pin Description
CN40
1 Power Button
2Gnd
CN41
1 +V3.3SB
2 Power LED
CN39
1 Reset Button
2Gnd
CN39 CN41 CN40
1
1
1
2
2
2
