Introduction 11
MXE-5400
Multi-Display Option
With the computing and graphic performance enhancements of
4th generation Intel processor, the MXE-5400 fully supports three
independent displays, configured as follows.
Table 1-4: Multi-Display Configuration

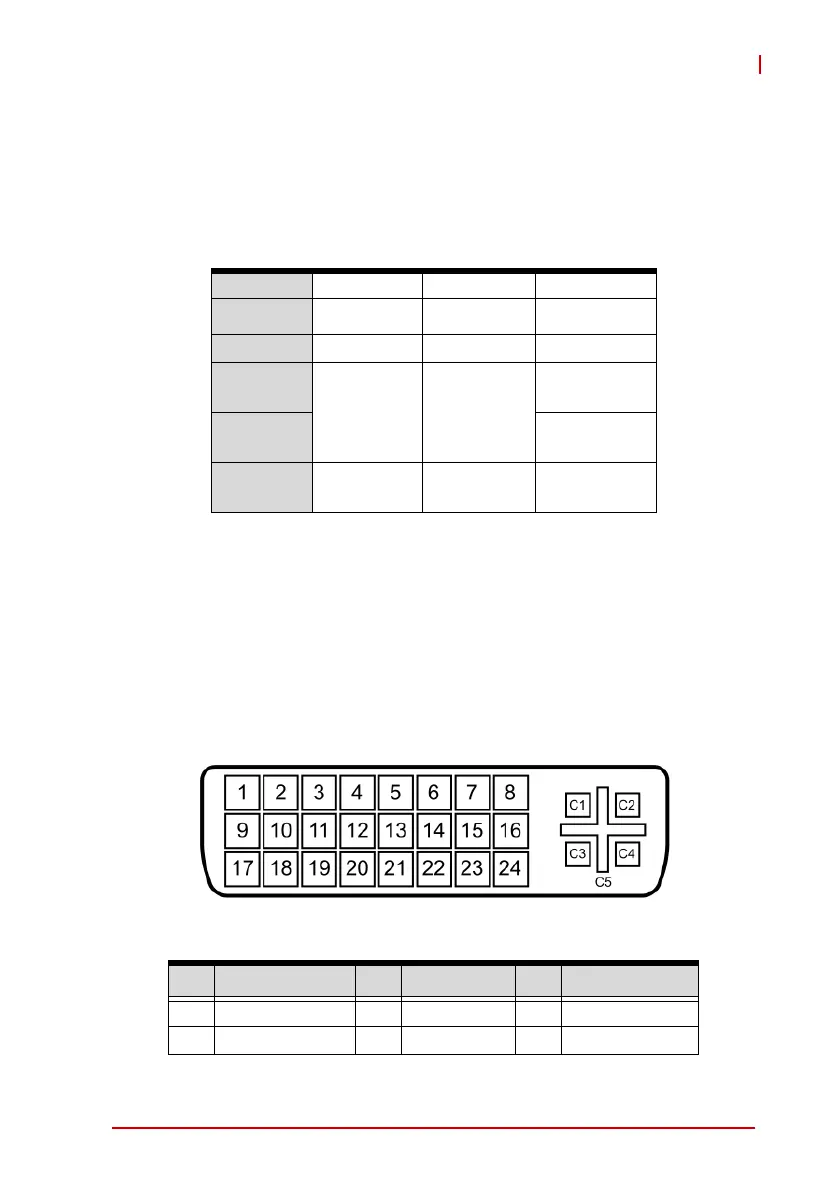

1.6.5 DVI-I Connector
The MXE-5400 provides a DVI-I connector for connection to exter-
nal monitor, which can separate to individual VGA and DVI-D (sin-
gle link) interfaces.
Display 1 DP DP DVI
Display 2 DP DP VGA
Display 3 DVI VGA DP
Max. Res
Display1
2560 x 1600
@60Hz
2560 x 1600
@60Hz
2048 x 1152
@60Hz
Max. Res
Display2
2048 x 1280
@60Hz
Max. Res
Display3
2048 x 1152
@60Hz
2048 x 1280
@60Hz
2560 x
1600@60Hz
Pin Signal Pin Signal Pin Signal
1 DVI_Data2- 11 GND 21 N/C
2 DVI_Data2+ 12 N/C 22 GND
