Introduction 25
MXE-5400
(SSD), requiring installation into the SATA connector with a HDD
bracket.
1.8.5 Mini-PCIe Connectors
The MXE-5400 features two mini-PCIe connectors, following the
revision 1.2 standard. While both CN16 and CN 23 support versa-
tile mini-PCIe modules, the USIM slot is set to interact with CN16,
accepting WWAN modules. In addition to mini PCIe support,
CN23 provides mini SATA access via jumper CN24 selection, as
shown.

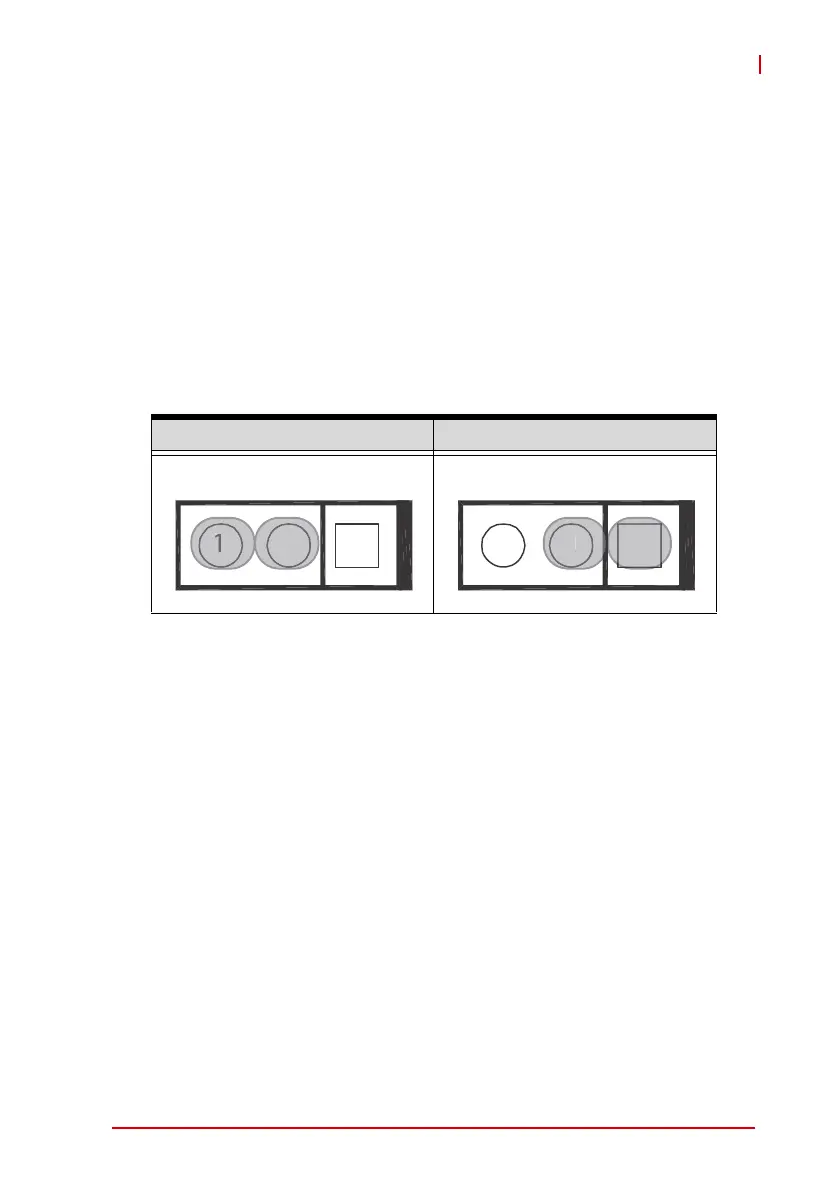

Figure 1-20: Mini-PCIe Connector Jumper Settings
mSATA Mini-PCIe
123
1
2
123
2
3
