Chapter 2 — Installation
2.1 Package Contents
 Network Camera
 Installation CD (INIT, RASplus and iNEX Basic software, camera, RASplus and iNEX
Basic User’s Manual)
 User’s Manuals (Camera Installation Guide, INIT)
 SD Memory Card
 Mount Kits

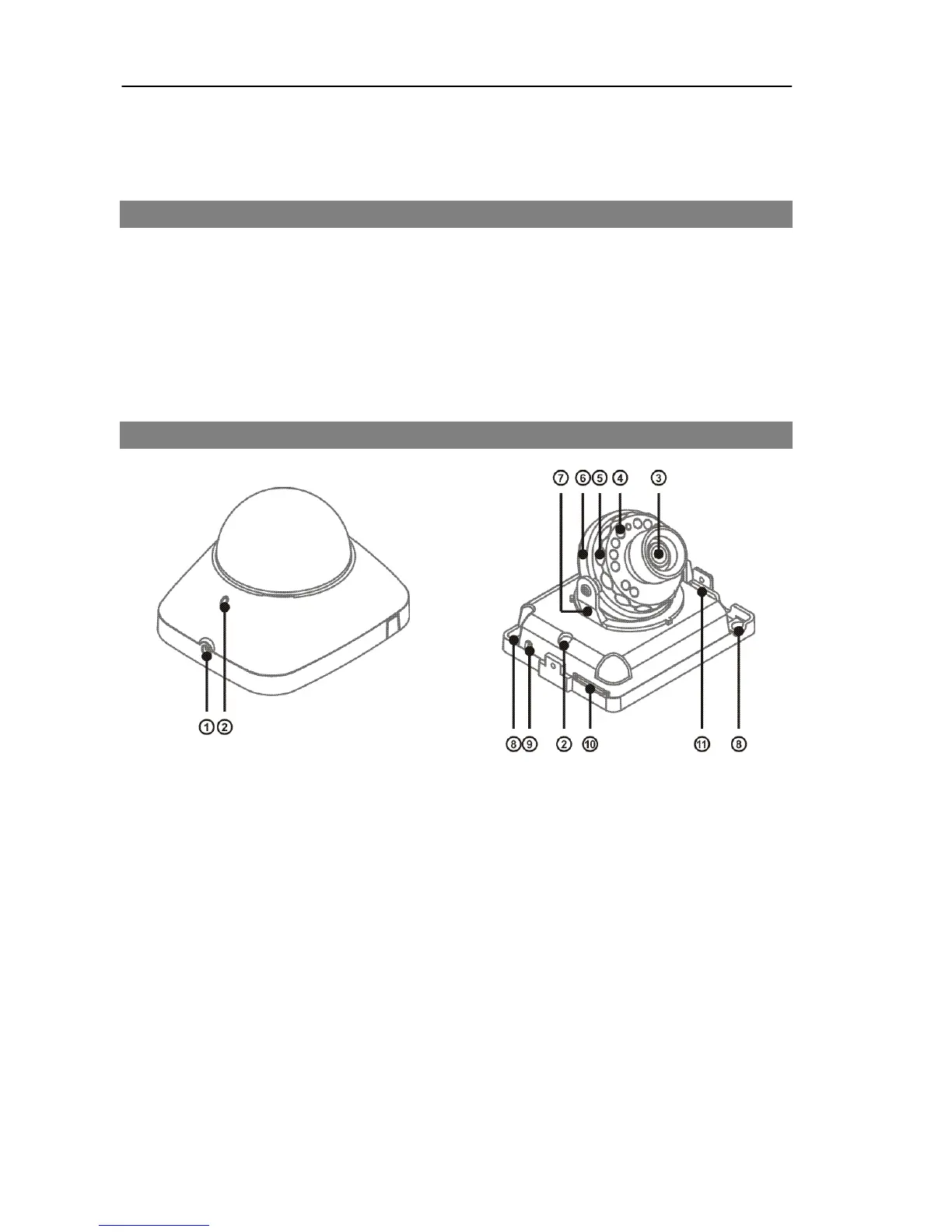

2.2 Illustrated Parts List
Dome Cover Body
① Dome Cover Screw Hole: Allows you to connect the dome cover to the body.
② Power LED: Indicates system operation status. See Appendix – LED Indicators for details.
③ Lens: Fixed focus lens is installed.
④ IR LED: The sensor in the middle of IR LEDs senses illumination and the IR LEDs are lit at
night or under low lighting conditions
.
⑤ Rotation Base: Allows you to adjust the rotation angle.
⑥ Tilt Base: Allows you to adjust the tilt angle.
⑦ Pan Base: Allows you to adjust the pan angle.
⑧ Wall/Ceiling Mounting Holes: Allows you to screw the camera to the wall or ceiling.
⑨ RESET (Factory Reset Switch): Use to return all settings to the original factory settings.
See below for details.
⑩ SD/SDHC (SD Memory Card Slot): Insert an SD memory card (SanDisk or Transcend
brands recommended).
