ADAM-4000 Series User Manual 268
8.3 Analog Input Thermistor Module Calibration
Model: ADAM-4015T
If you select the range “Thermistor 3K 0~100C”, please follow the calibration steps as
below.

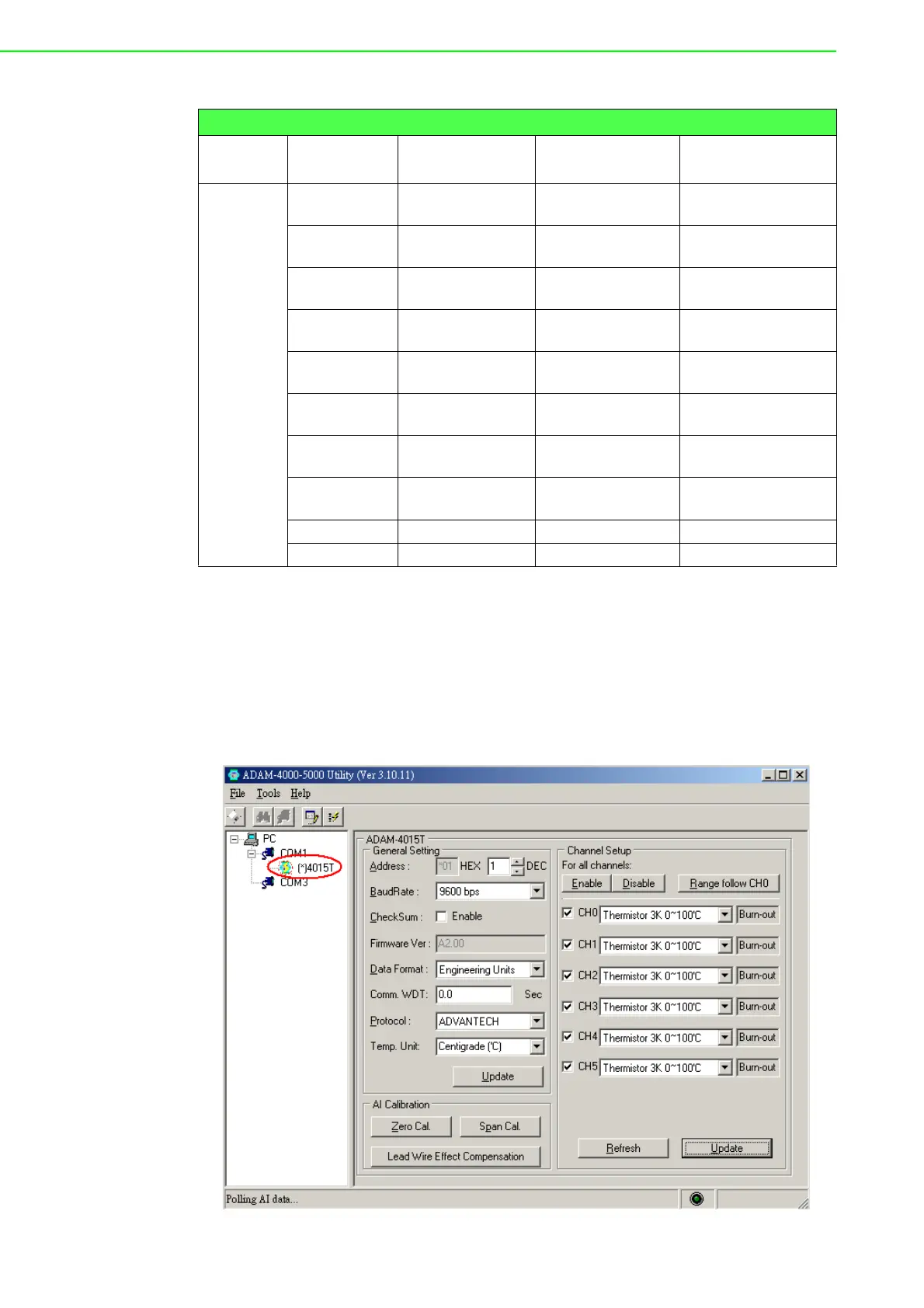

1. Short the INIT* pin to GND and then power up ADAM-4015T. Run ADAM-4000-
5000 Utility and search for the module.
Table 8.1: Calibration Resistance
Module
Input Range
Code (Hex)
Input Range
Span Calibration
Resistance
Offset Calibration
Resistance
4013 2
0
Pt, -100~100 °C
a = 0.00385
140  60 
21
Pt, 0~100 °C
a = 0.00385
140  60 
22
Pt, 0~200 °C
a = 0.00385
200  60 
23
Pt, 0~600 °C
a = 0.00385
440  60 
24
Pt, -100~100 °C
a = 0.003916
140  60 
25
Pt, 0~100 °C
a = 0.003916
140  60 
26
Pt, 0~200 °C
a = 0.003916
200  60 
27
Pt, 0~200 °C
a = 0.003916
440  60 
28 Ni, -80~100 °C 200  60 
29 Ni, 0~100 °C 200  60 
