ADAM-4000 Series User Manual 60

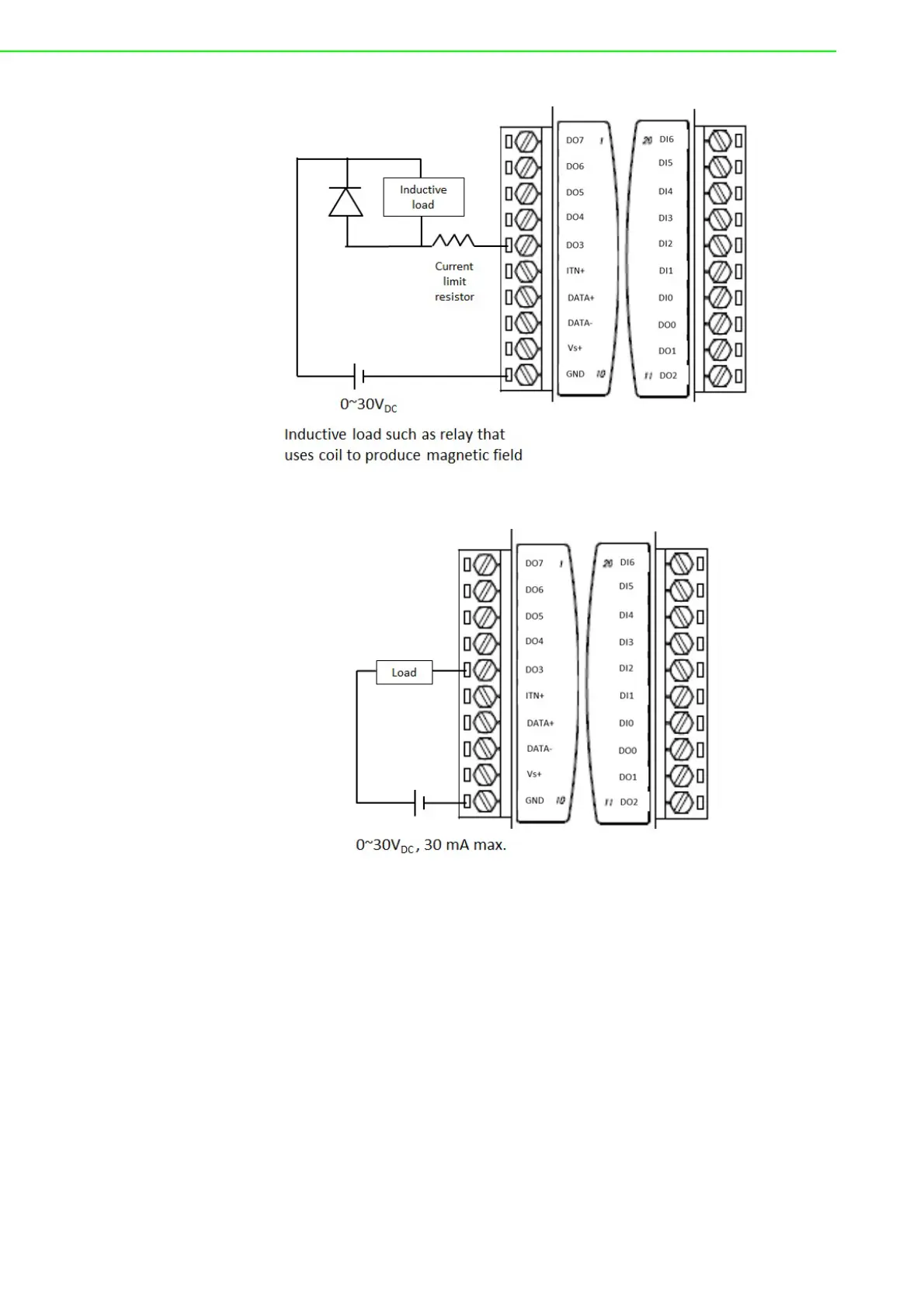

Figure 3.44 ADAM-4050 Digital Output Wiring Used with inductive load
Figure 3.45 ADAM-4050 Digital output wiring
