ADAM-4000 Series User Manual 74

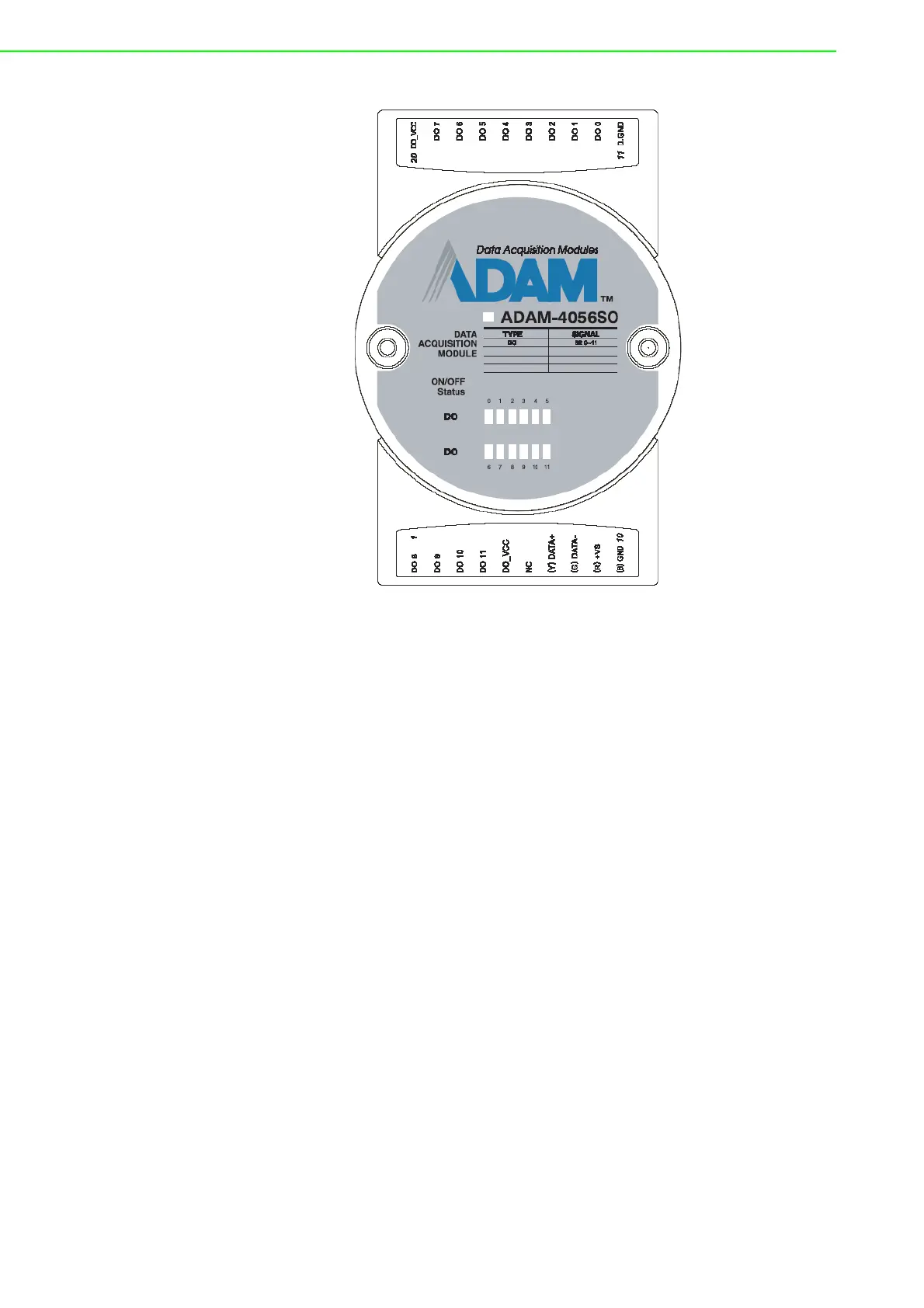

Figure 3.64 ADAM-4056SO 12-channel Source Type Isolated Digital Output
Module
3.18.1 Technical Specification of ADAM-4056SO
– Number of Output Channel: 12
– Digital Output: VCC: +10 ~ 35VDC, 1A per Channel ( Source)
– LED Indicator: On: Active, Off: Non-active
– Power Consumption: 1 W @ 24VDC
– Optical isolation: 5000 VDC
– Supports Modbus/RTU protocol
– I/O Connector Type: 10 pin plug-in terminal*2
– Leakage current : 50A
– Support Safety Value:
Force the DO channels to safety status when communication is in time-out
and over pre-defined period.
