ADAM-4000 Series User Manual 292

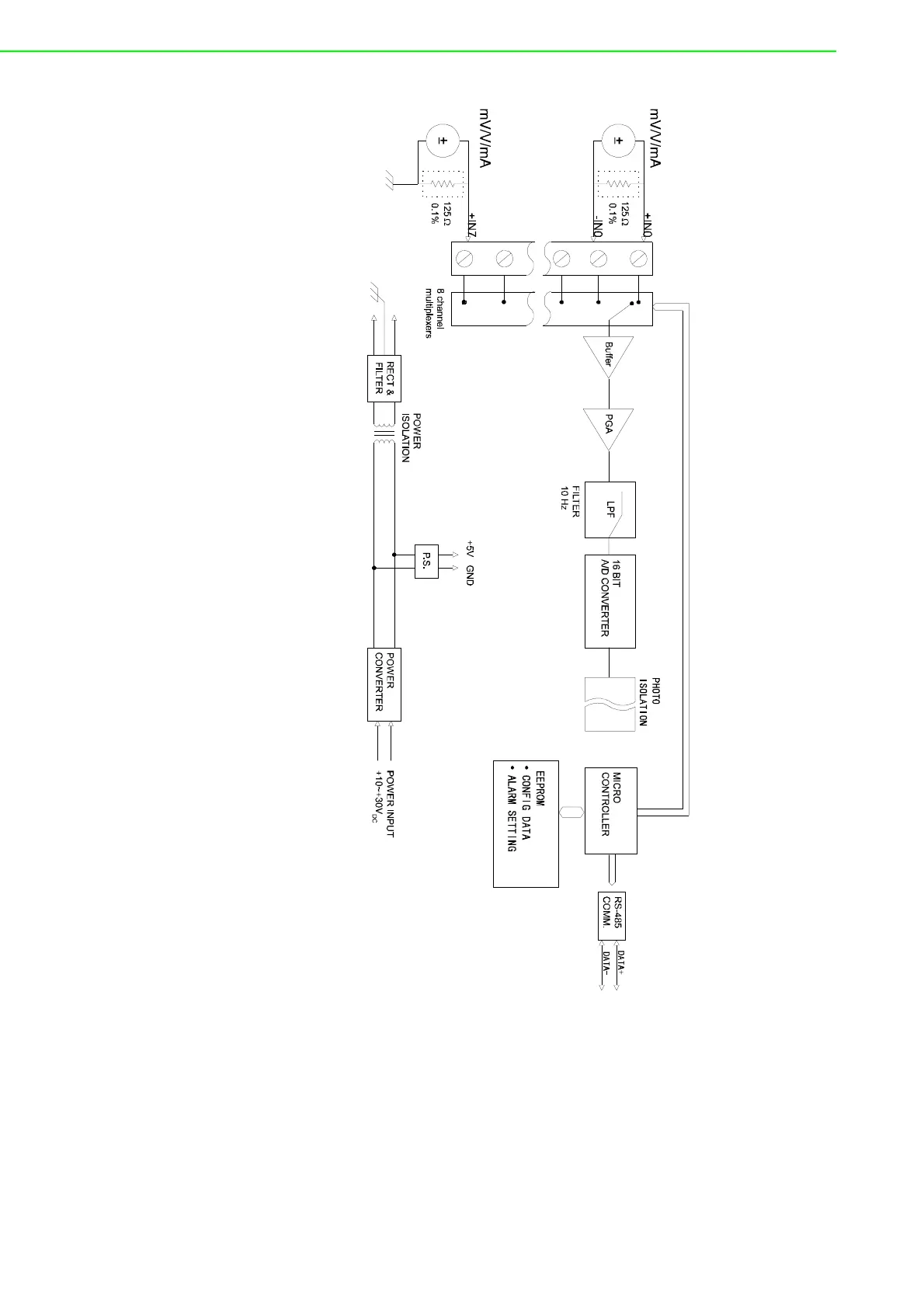

Figure A.6 ADAM-4017/4017+ Function Diagram
The use of a 125 ohm external resistor is when only 4017 needs one. The resistor is
contained internally for the ADAM- 4017+ and doesn’t need to be include externally.
