ADAM-4000 Series User Manual 64
3.14.1 Application Wiring

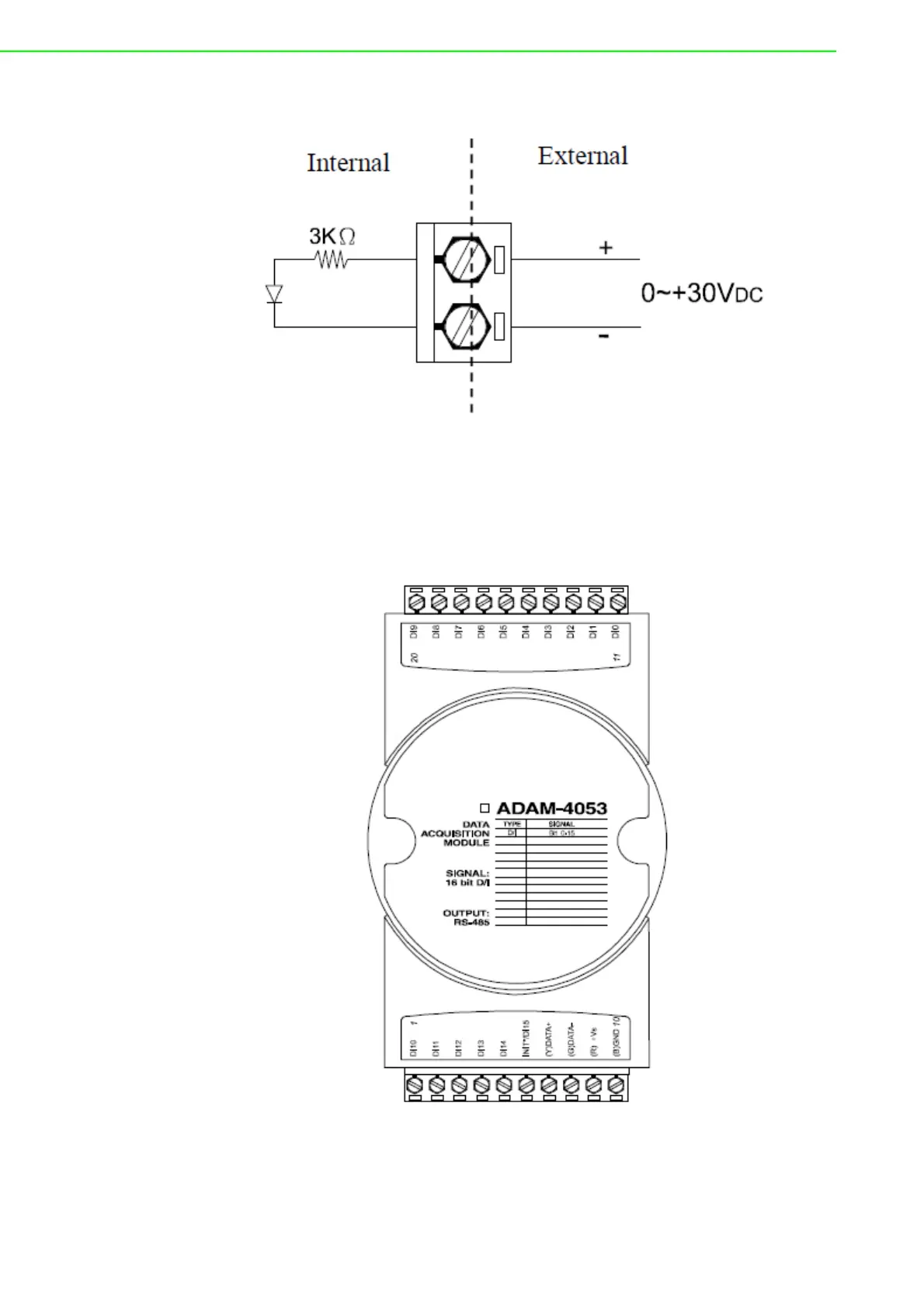

Figure 3.50 ADAM-4052 Isolation Digital Input Wiring Ground
3.15 ADAM-4053 16-channel Digital Input Module
The ADAM-4053 provides 16 digital input channels for dry contact or wet contact sig-
nals. For dry contact, the effective distance from DI to contact point is up to 500 m.
Figure 3.51 ADAM-4053 16-channel Digital Input Module
