45 ADAM-4000 Series User Manual
Chapter 3 I/O Modules
3.8.6 ADAM-4017+ 8-channel Differential Analog Input Module

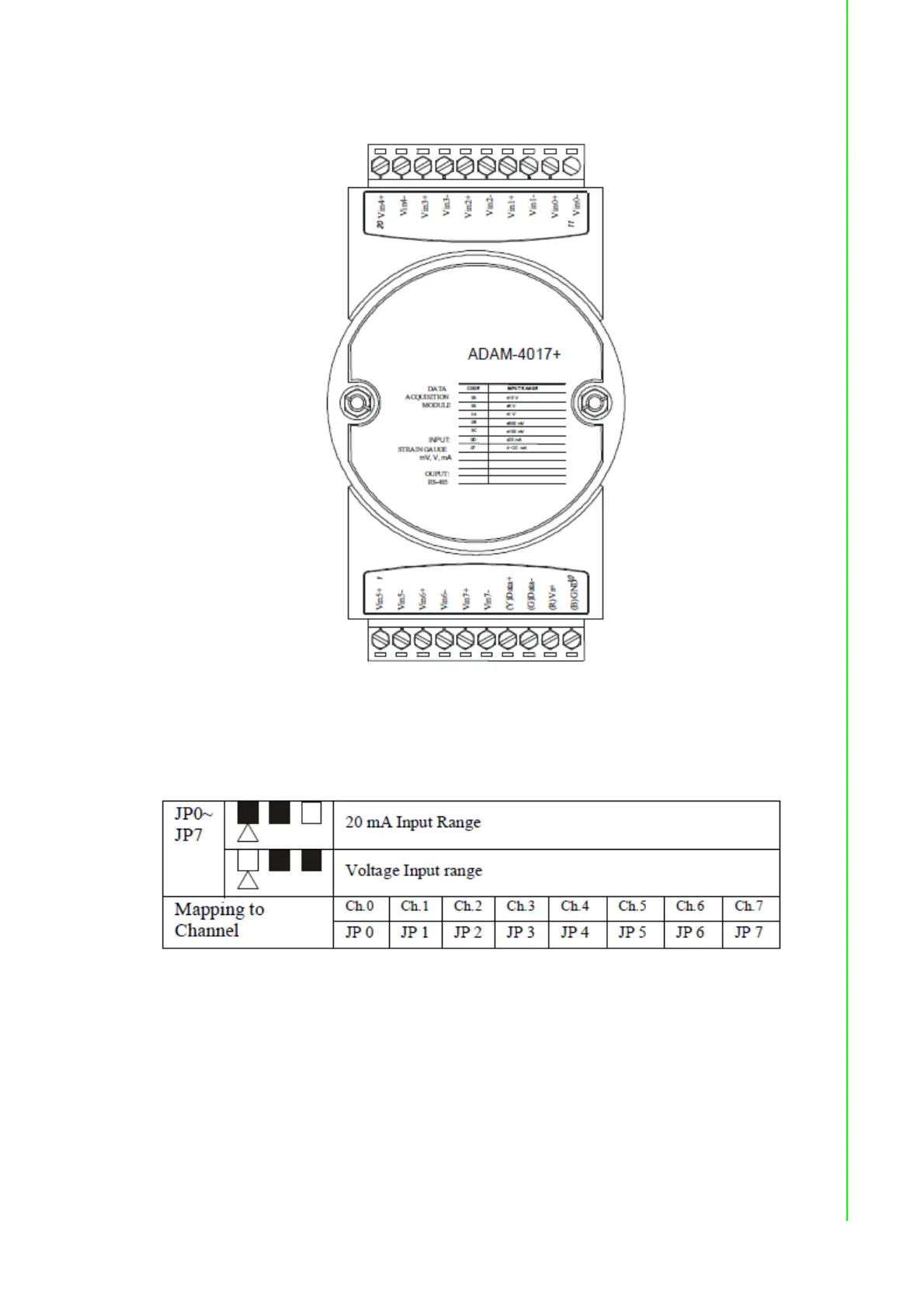

Figure 3.26 ADAM-4017+ 8-ch. differential analog input module
Jumper setting (ADAM-4017+)
1. JP0~JP7
2. JP12 can Enable/Disable Watchdog Timer Function. The default setting is
closed, i.e., Watchdog Timer Function Enabled. Please always keep JP12
closed and enable/disable the watchdog timer function in ADAM-utility.
