AIMB-785 User Manual 92

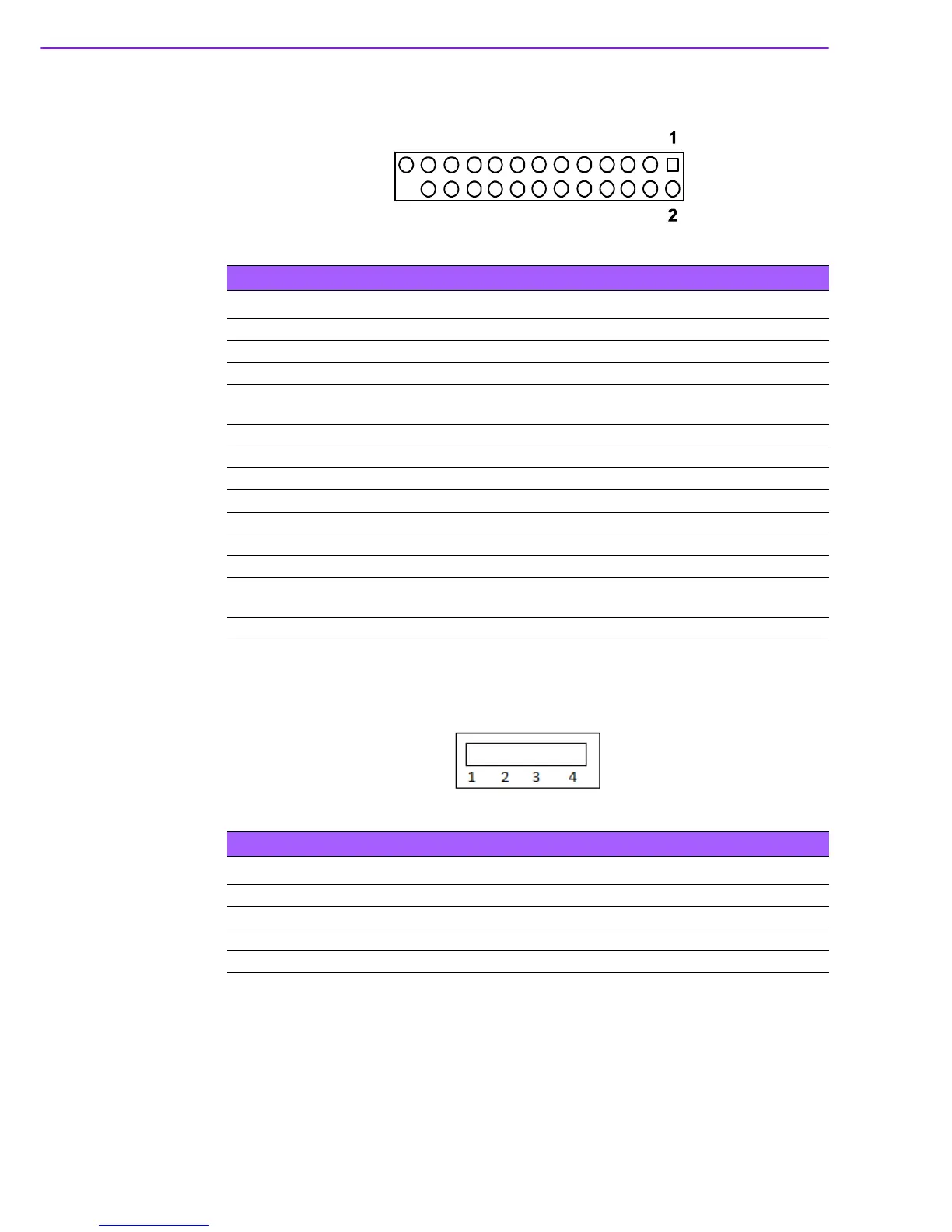

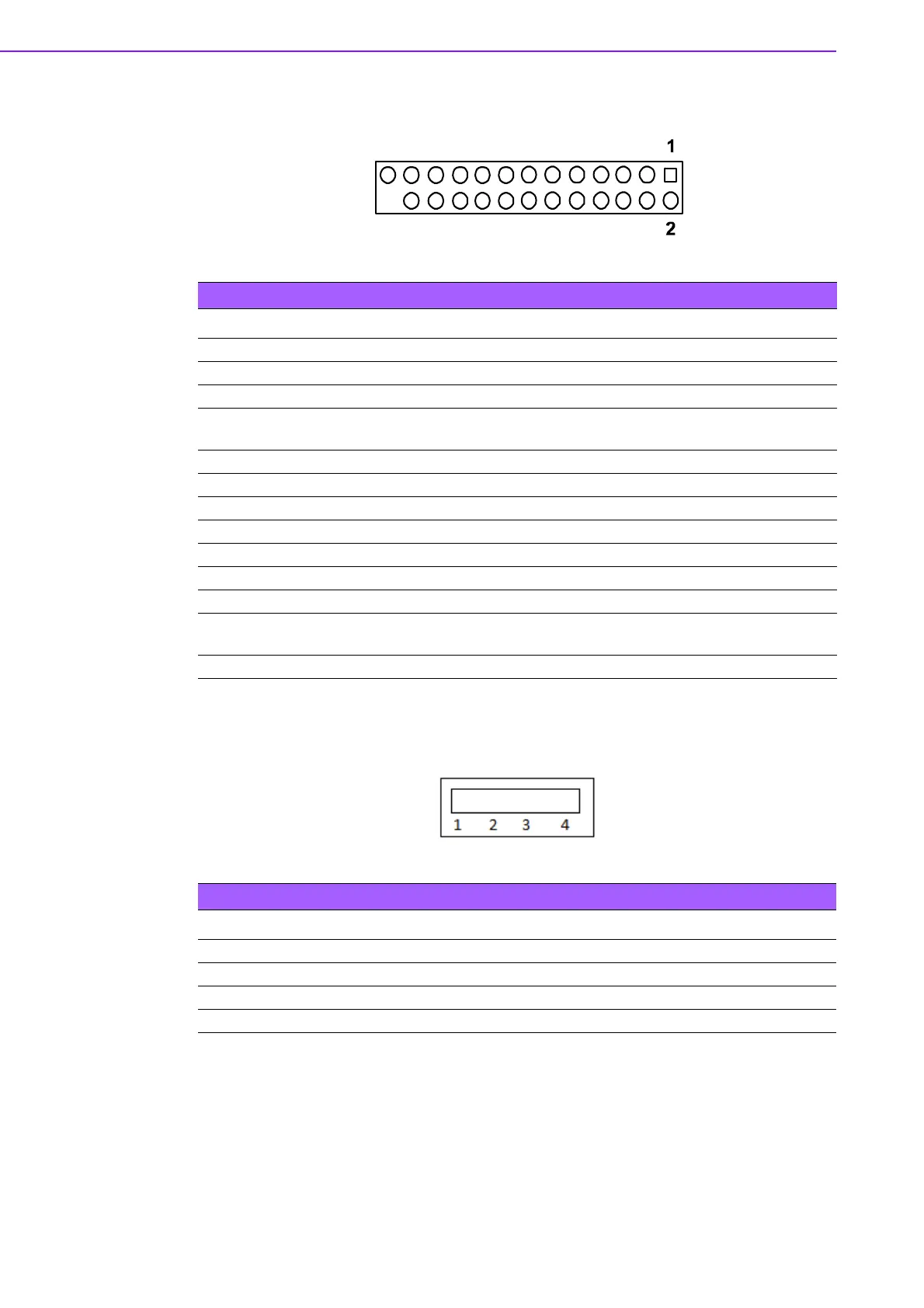

B.1 Parallel Port (LPT1)
B.2 USB2.0 Type A Port (USB3)
Table B.1: Parallel Port (LPT1)
Pin Signal Pin Signal
1 STROBE# 14 AUTO-LINEFEED#
2 DATA0 15 ERROR#/FAULT#
3 DATA1 16 INITIALIZE#
4 DATA2 17 SELECT-PRINTER#/
SELECT-IN#
5DATA318GND
6DATA419GND
7DATA520GND
8DATA621GND
9DATA722GND
10 ACK# 23 GND
11 BUSY 24 GND
12 PAPER-OUT/
PAPER-END
25 GND
13 SELECT
Table B.2: USB2.0 Type A Port (USB3)
Pin Signal
1 +5V
2D-
3D+
4GND
