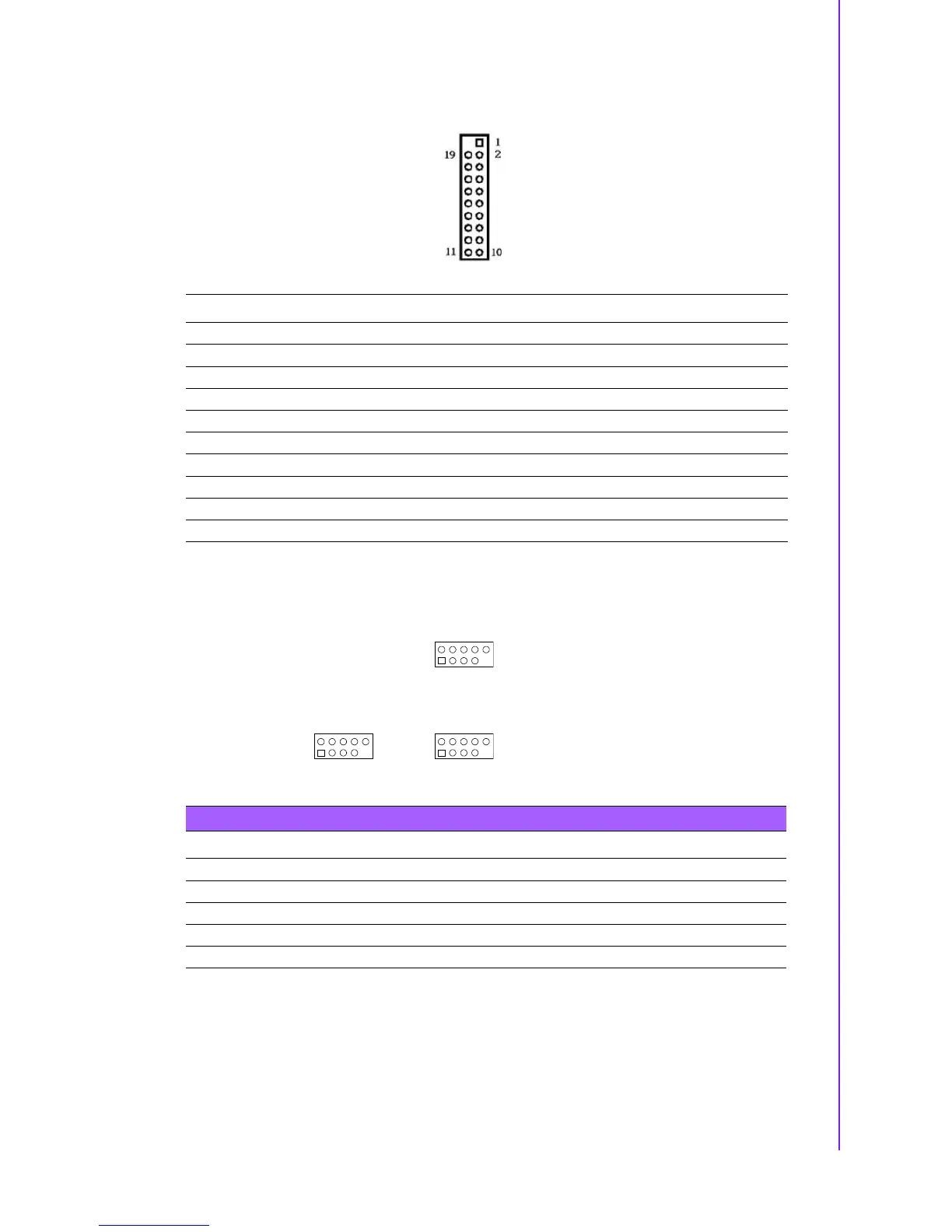

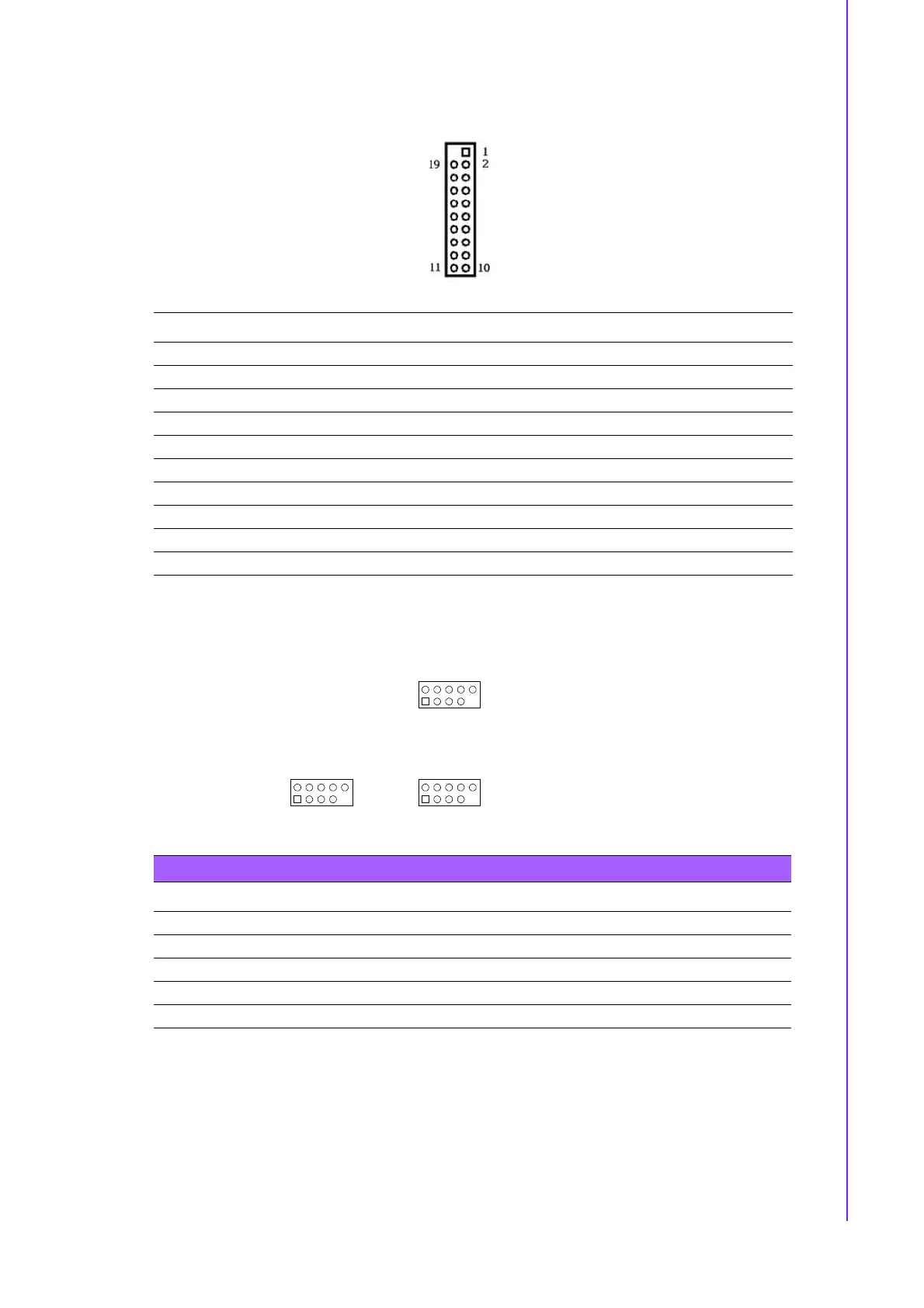

93 AIMB-785 User Manual
Appendix B I/O Pin Assignments
B.3 USB3.0 Header (USB1314)
B.4 USB2.0 Header (USB56, USB78, USB1112)
Pin Signal Pin Signal
1+5V2STDA_SSRX-
3 STDA_SSRX+ 4 GND
5 STDA_SSTX- 6 STDA_SSTX+
7GND8D-
9D+10OC#
11 D+ 12 D-
13 GND 14 STDA_SSTX+
15 STDA_SSTX- 16 GND
17 STDA_SSRX+ 18 STDA_SSRX-
19 +5V
Table B.3: USB2.0 Header (USB56, USB78, USB1112)
Pin Signal Pin Signal
1 +5V 2 +5V
3D- 4D-
5D+ 6D+
7 GND 8 GND
9N/A 10N/C
USB12 USB56
USB78 USB1112 USB1314
1
2
10
2
1
