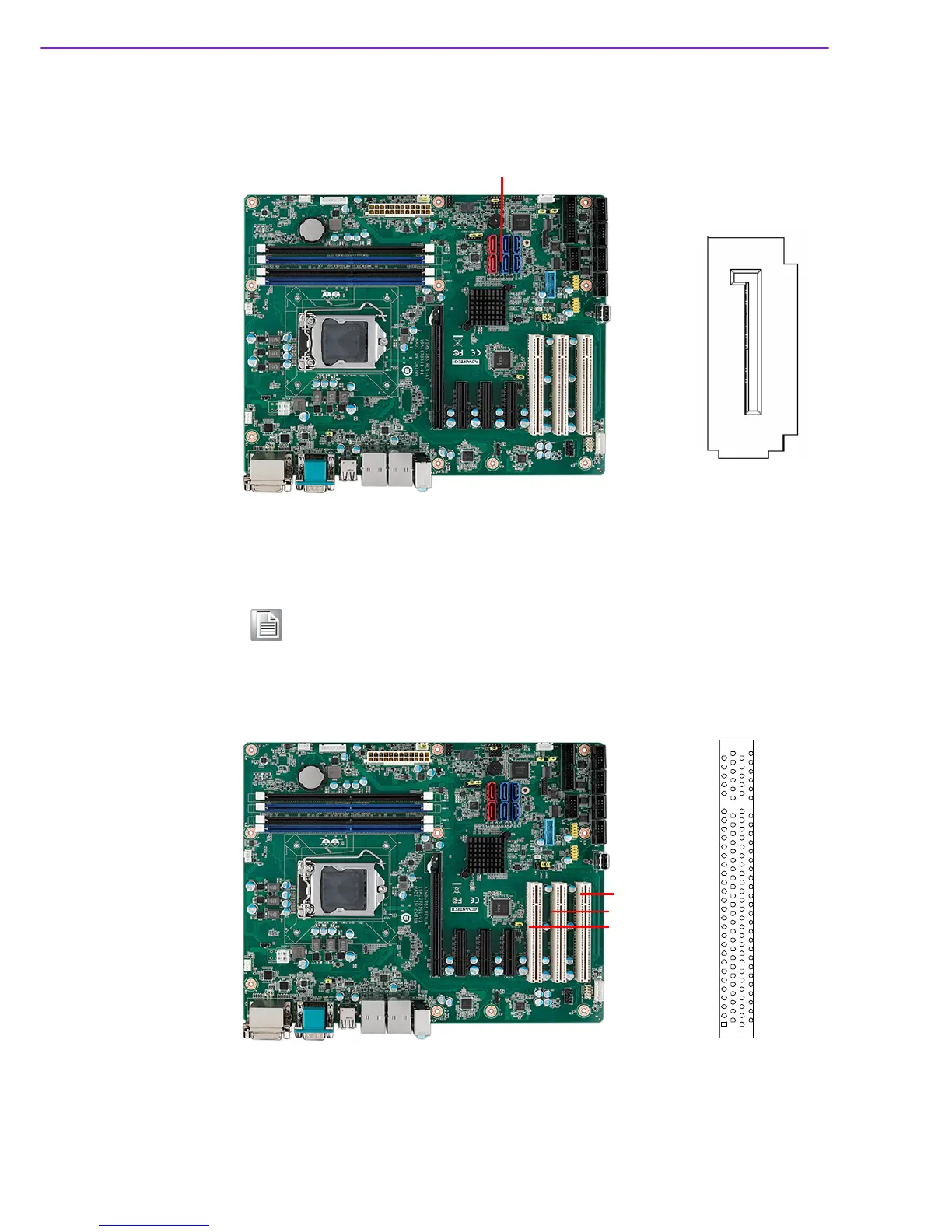

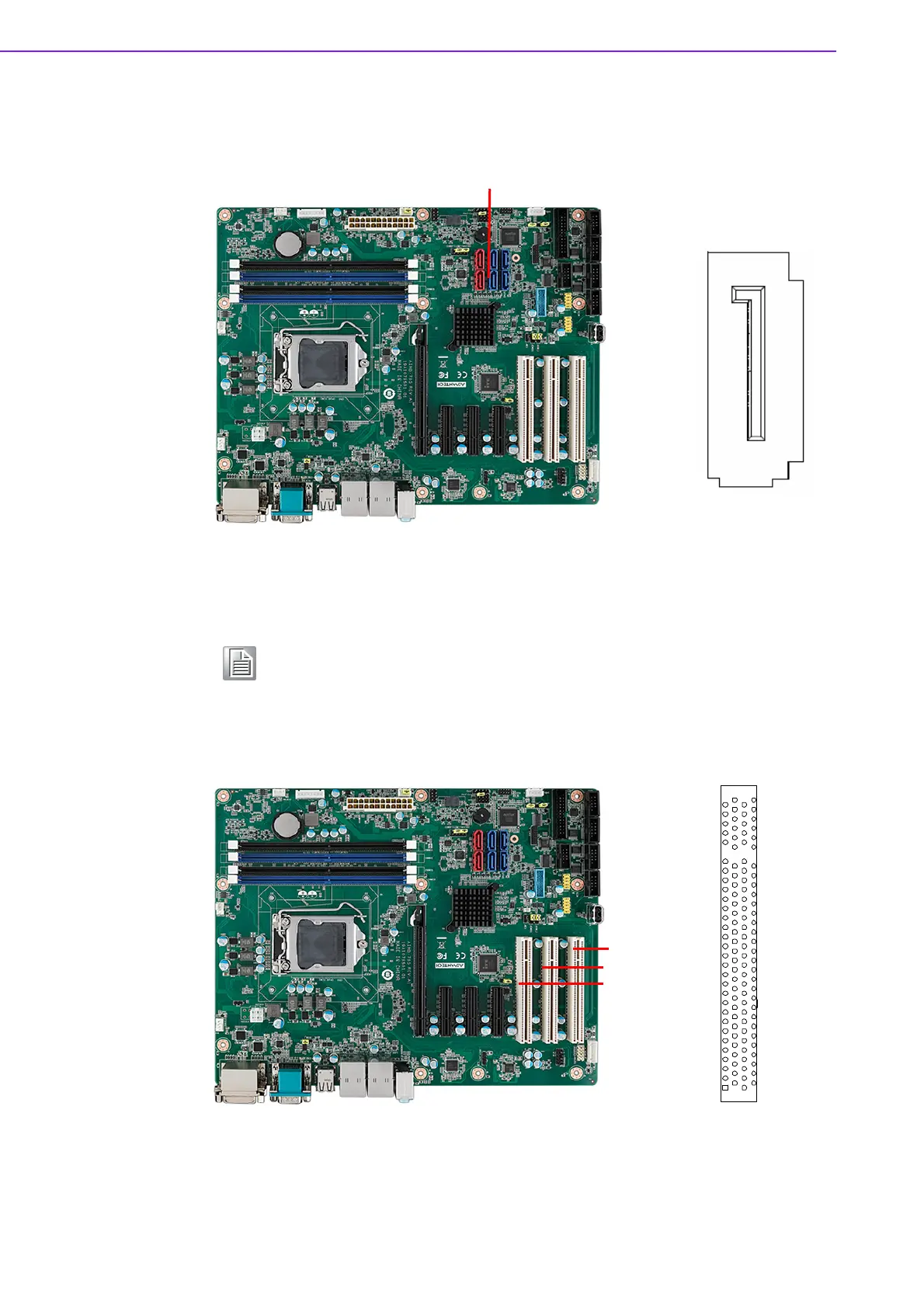

2.14 Serial ATA Interface (SATA0~5)
AIMB-785 features six high performance serial ATA III interfaces (up to 600 MB/s)
with long, thin, easy-to-run SATA cables.
2.15 PCI Slots (PCI1 ~ PCI3)
The AIMB-785 provides three 32-bit / 33 MHz PCI slots.
Note! SATA0 and SATA1(red ports) are controlled by Marvell chipset support-
ing PCIe x1 Gen2 with less performance than SATA2~5. These two
ports do not support RAID functions.
SATA0 SATA 2 SATA4
SATA1 SATA3 SATA5
PCI1
PCI2
PCI3
