AIMB-785 User Manual 94

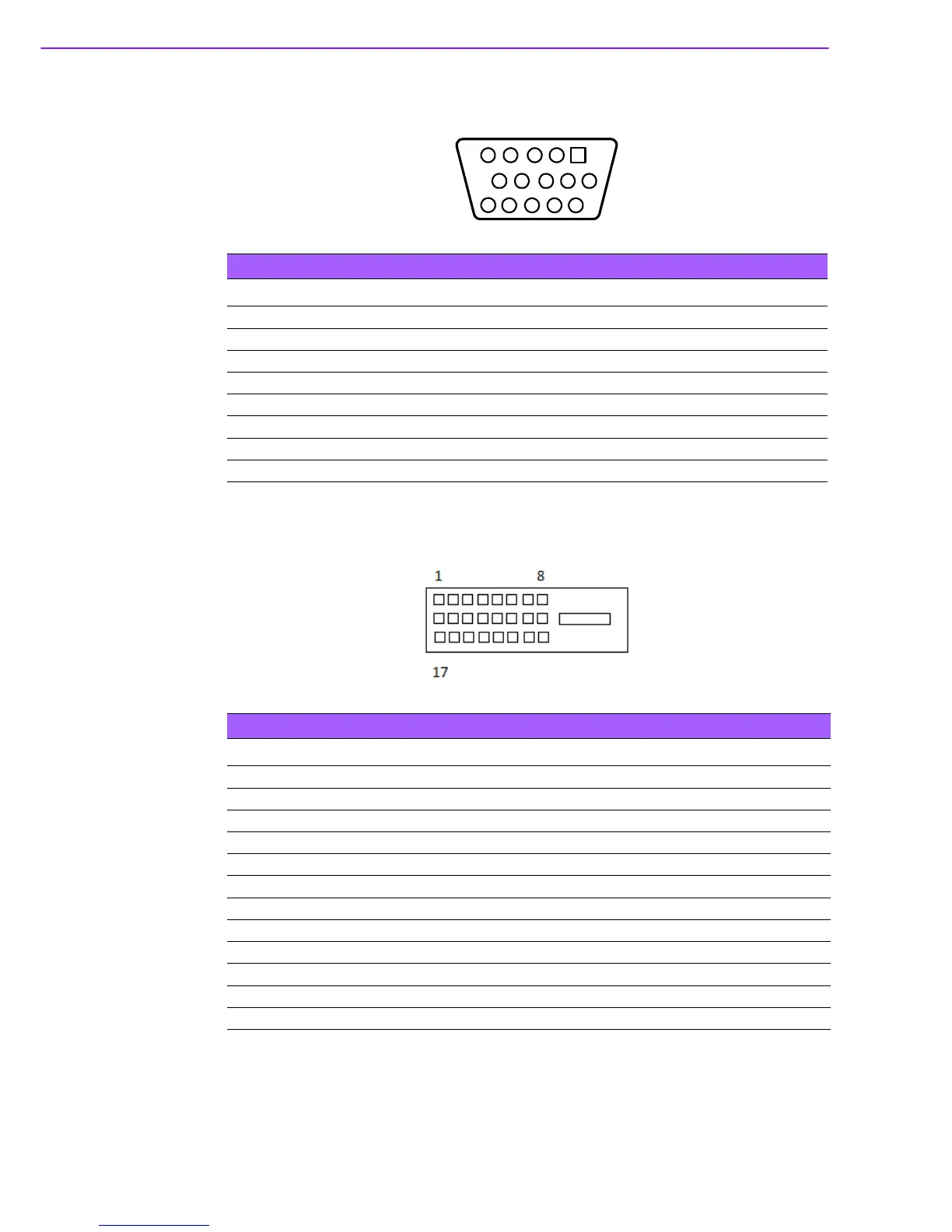

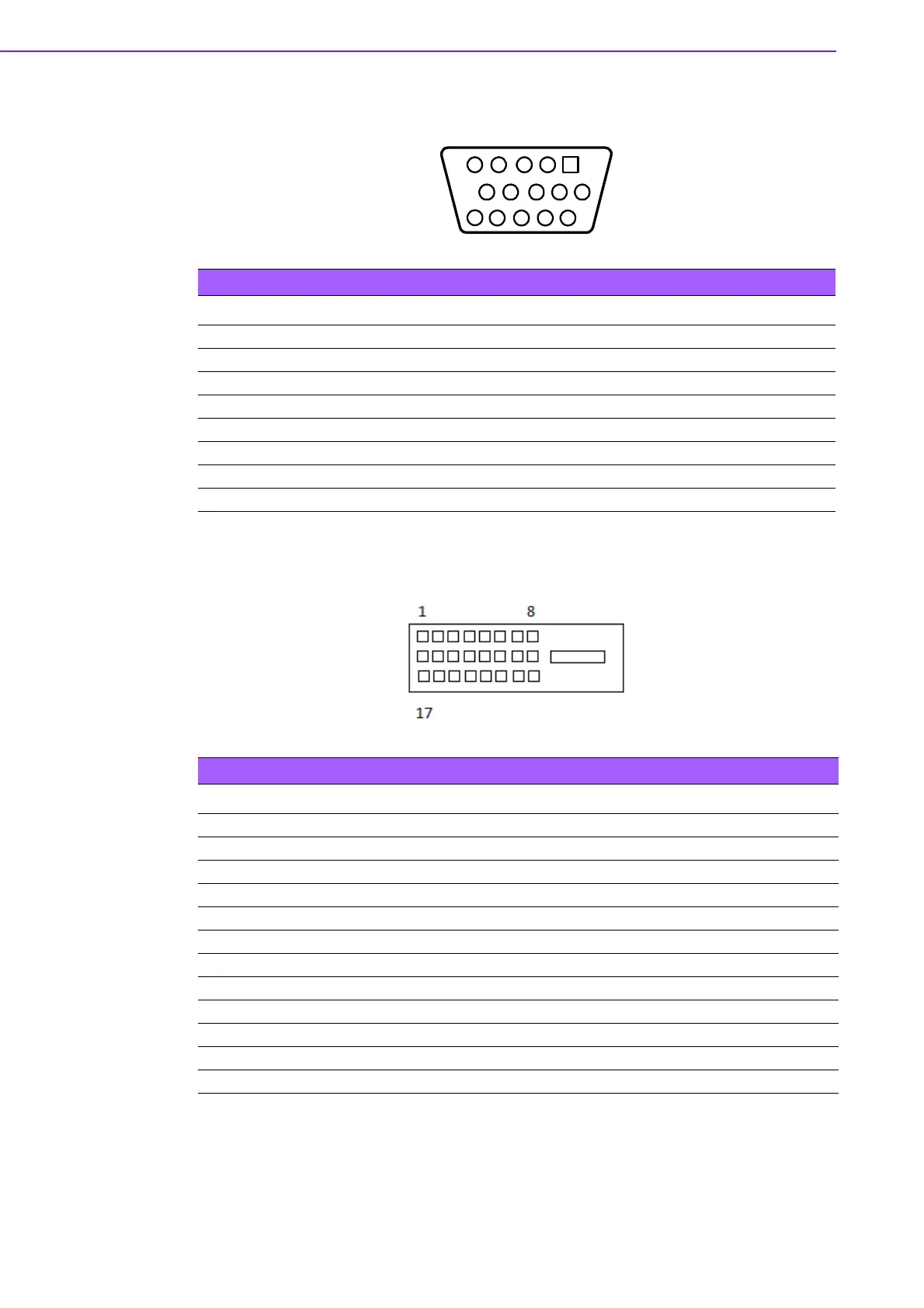

B.5 VGA Connector (VGA1)
B.6 DVI Interface
Table B.4: VGA Connector (VGA1)
Pin Signal Pin Signal
1 RED 9 KEY/PWR
2 GREEN 10 GND
3BLUE 11ID0/RES
4 ID2/RES 12 ID1/SDA
5 GND 13 HSYNC
6 RED_RTN 14 VSYNC
7 GREEN_RTN 15 ID3/SCL
8BLUE_RTN
5
15
1
11
10 6
Table B.5: DVI-D Connector (DVI1/DVI2)
Pin Signal Pin Signal
1 TMDS Data 2- 13 TMDS Data 3+
2 TMDS Data 2+ 14 +5V
3 TMDS Data 2/4 shield 15 GND
4 TMDS Data 4- 16 Hot plug detect
5 TMDS Data 4+ 17 TMDS data 0-
6 DDC clock 18 TMDS data 0+
7 DDC data 19 TMDS data 0/5 shield
8 Analog vertical sync 20 TMDS data 5-
9 TMDS Data 1- 21 TMDS data 5+
10 TMDS Data 1+ 22 TMDS clock shield
11 TMDS Data 1/3 shield 23 TMDS clock+
12 TMDS Data 3- 24 TMDS clock-
