AIMB-785 User Manual 46

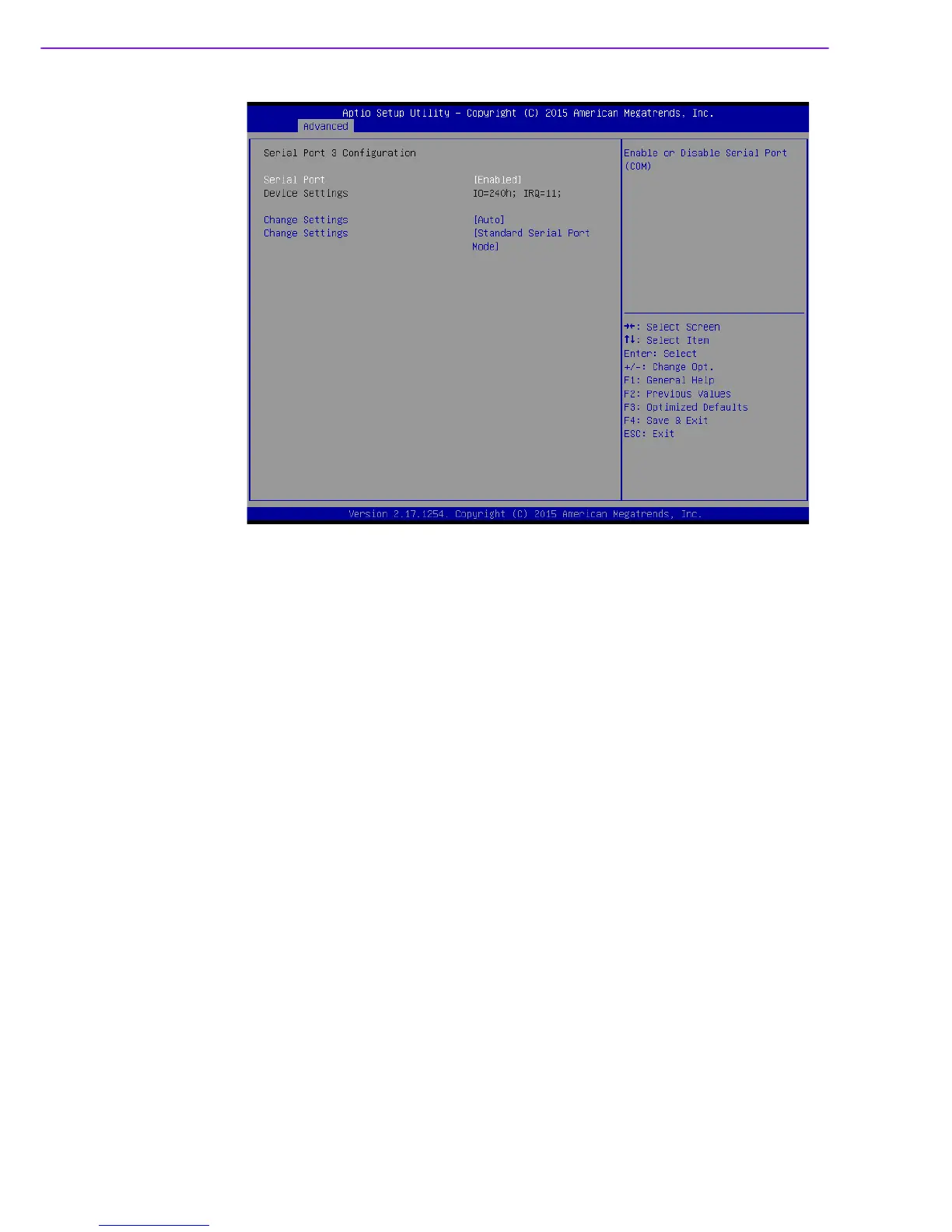

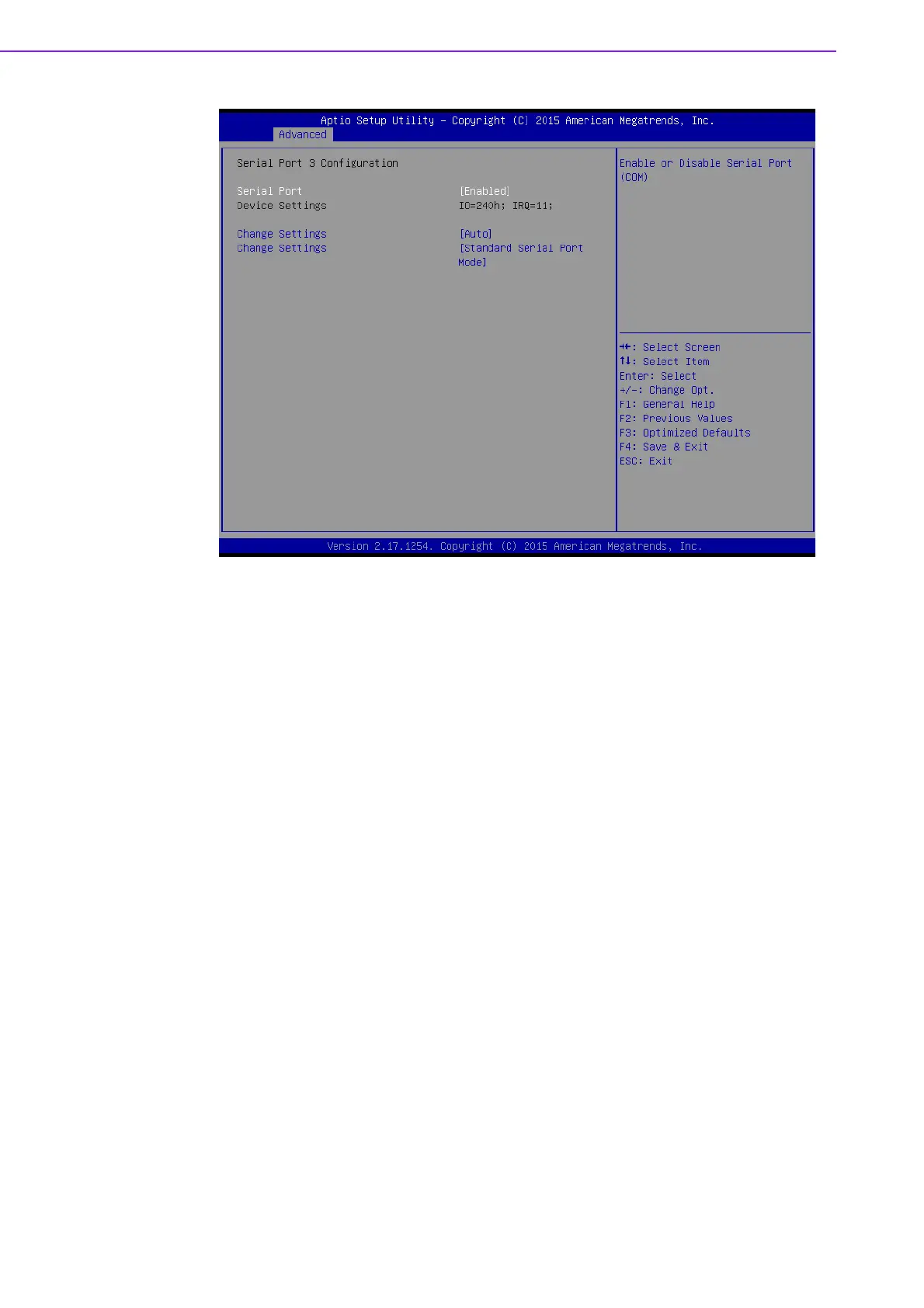

Figure 3.22 Serial Port 3 Configuration
Serial Port 3 Configuration
– Serial Port
To "Enable or Disable" Serial Port 3.
– Change Settings
To select an optimal setting for serial port 3.
– Device Mode
Can be selected to Serial Port Function Mode (RS-232), RS-485 Half Duplex,
or RS-422 Full Duplex.
