Advantech AIMB-785G2-00A2 User Manual

AIMB-785 User Manual 10
AIMB-785 allows users to set USB power between +5 V_DUAL and +5 V. When the
jumper is set as +5 V, the board doesn't support wake up from S3 via keyboard or
mouse.

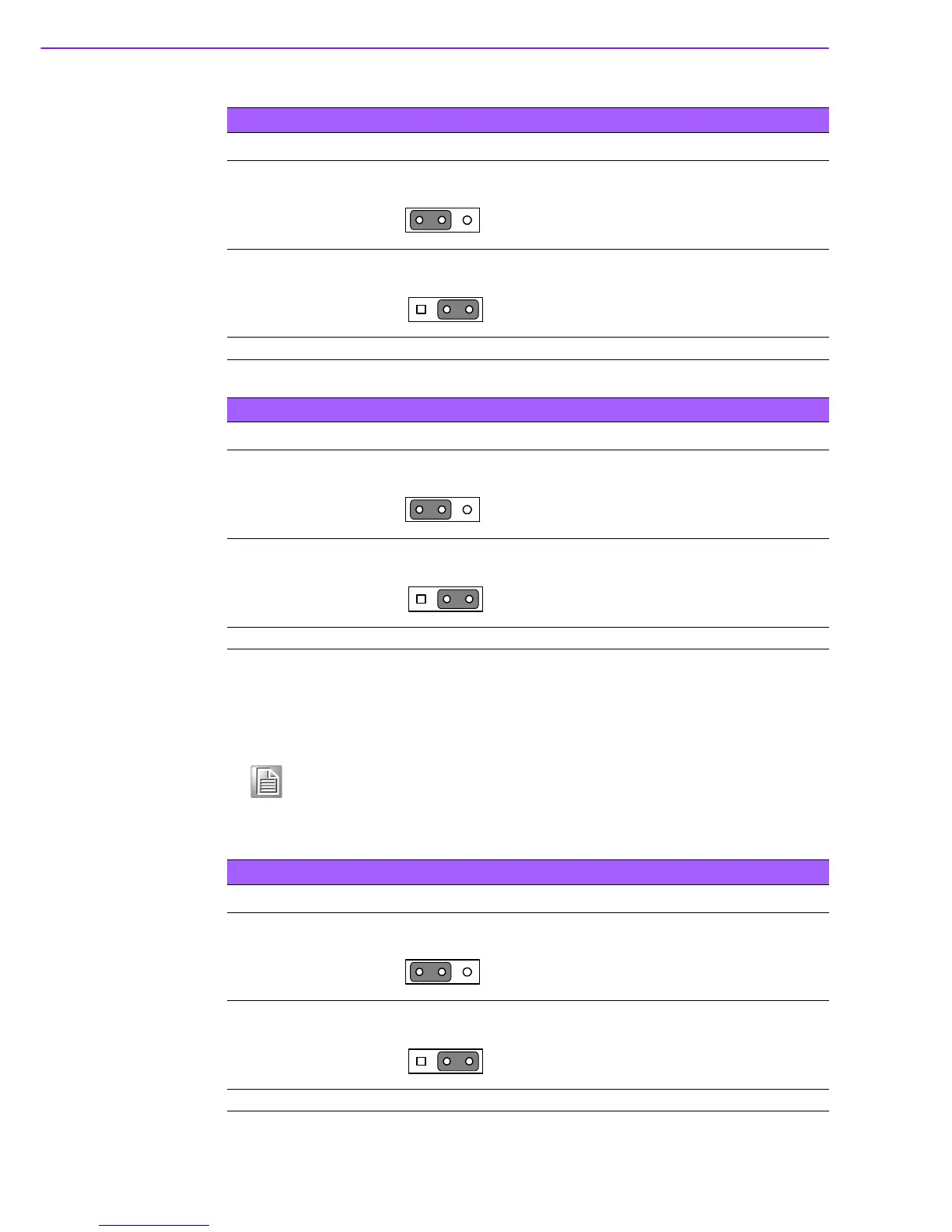

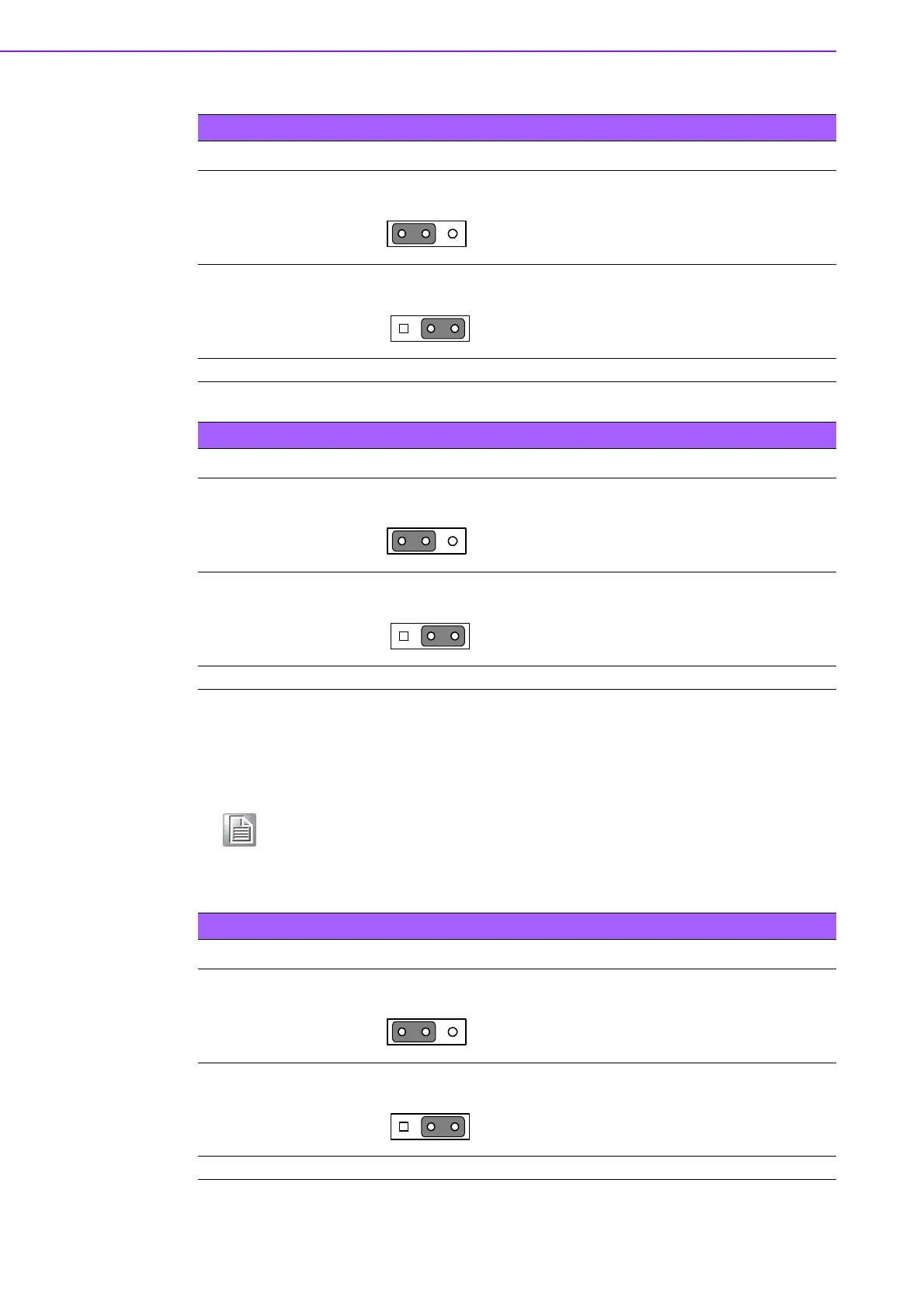

Table 1.5: ATX/AT mode selector (PSON1)
Function Jumper Setting
AT Mode
* ATX Mode
* default setting
Table 1.6: JUSB
Function Jumper Setting
*USB +5 V_DUAL
Power
USB +5 V Power
* default setting
Note! When USB power is switched to +5 V, it can’t be connected with pow-
ered KVM.
Table 1.7: JPCICLK1
Function Jumper Setting
66 MHz
*33 MHz
* default setting
1-2 closed
123
2-3 closed
123
1-2 closed
123
2-3 closed
123
1-2 closed
123
2-3 closed
123
