97 AIMB-785 User Manual
Appendix B I/O Pin Assignments

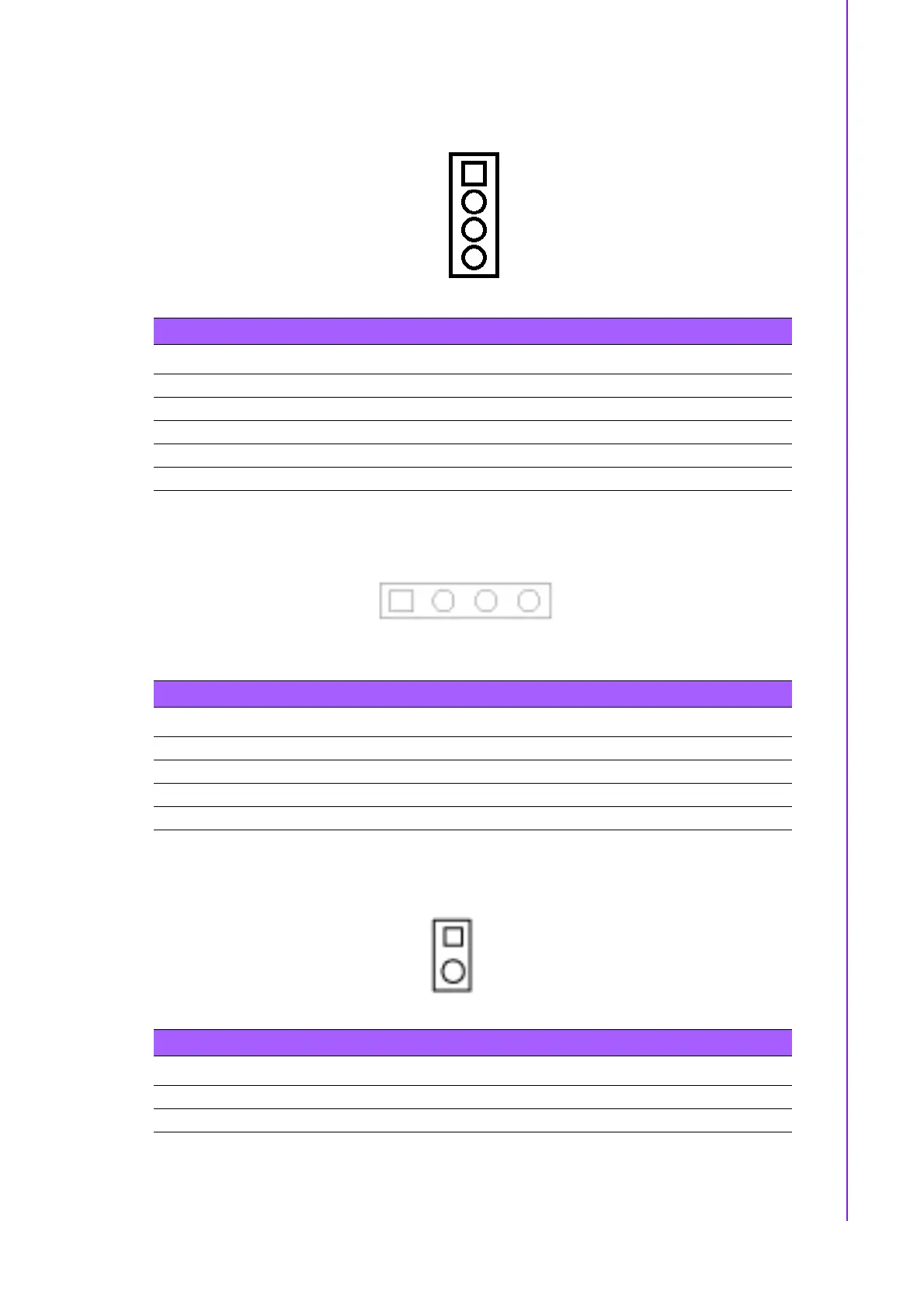

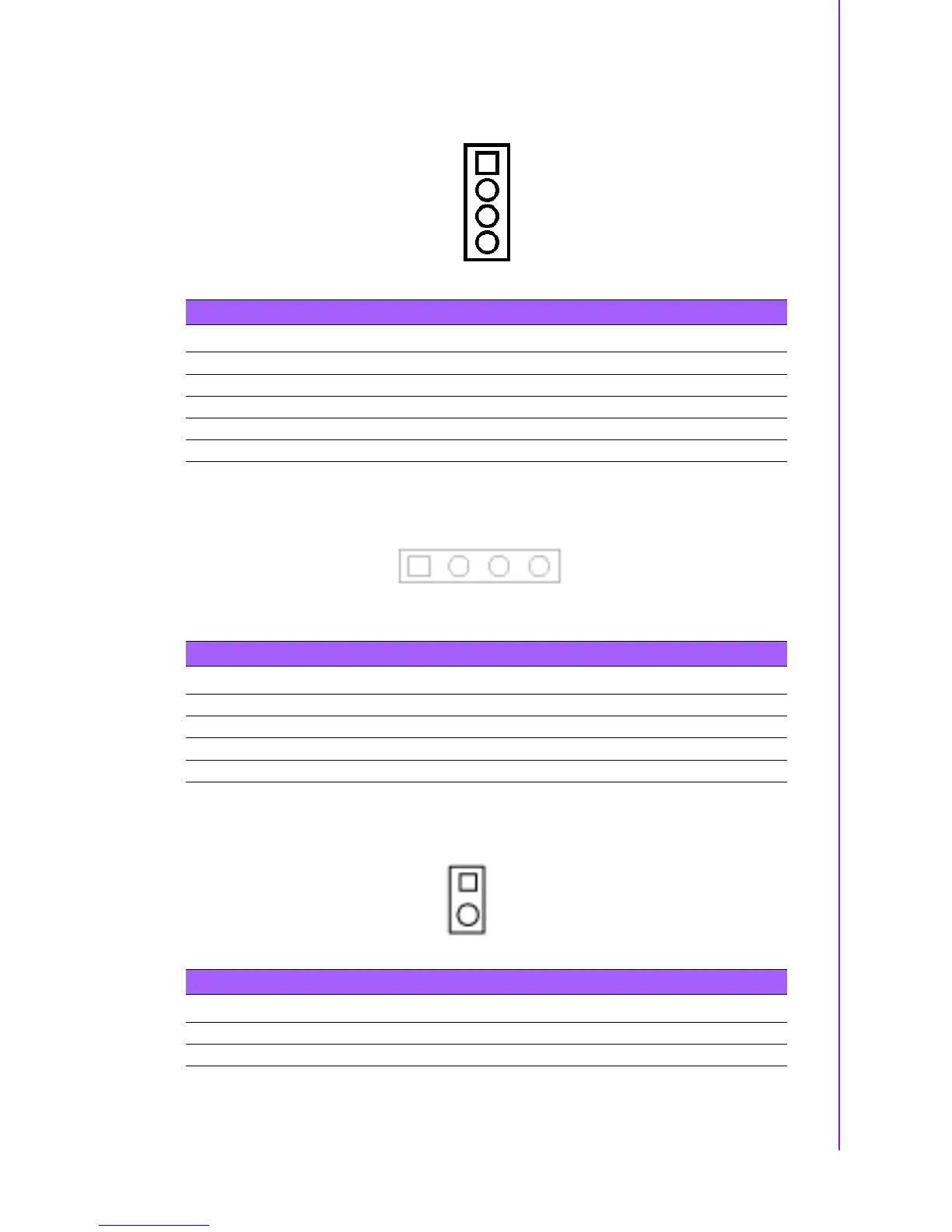

B.11 Power LED and Keyboard Lock (JFP3)
B.12 External Speaker Connector (JFP2)
B.13 Reset Connector (JFP1)
Table B.12: Power LED and Keyboard Lock (JFP3)
Pin Function
1POWER_LED+
2N/C
3GND
4 KEYLOCK#
5GND
Table B.13: External Speaker Connector (JFP2)
Pin Function
1 EXTENAL_SPK_P1
4 EXTENAL_SPK_2
7 INTENAL_SPK_P3
10 INTENAL_SPK_P4
1 4 7 10
Table B.14: Reset Connector (JFP1)
Pin Signal
9 SYSTEM RESET#
12 GND
9
12
