AIMB-785 User Manual 18

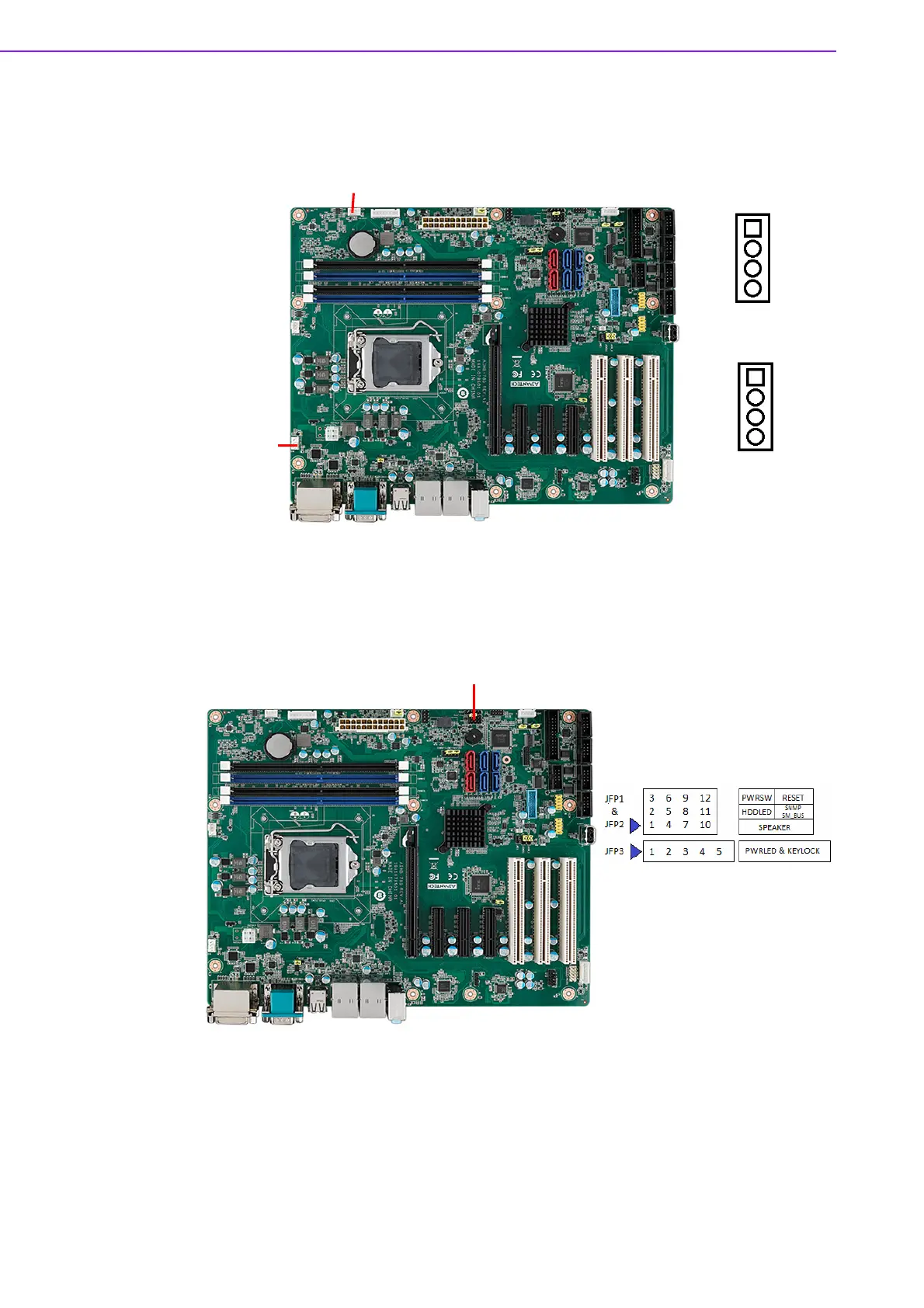

2.8 System FAN Connector (SYSFAN1 and
SYSFAN2)
If a fan is used, this connector supports cooling fans that draw up to 500 mA (6 W).
2.9 Front Panel Connectors (JFP1, JFP2 & JFP3)
There are several external switches and LEDs to monitor and control the AIMB-785.
SYSFAN1
SYSFAN1
SYSFAN1
SYSFAN2
JFP1+JFP2+JFP3
