Advantech AIMB-785G2-00A2 User Manual

45 AIMB-785 User Manual
Chapter 3 BIOS Operation
Use this item to set the CPU warning temperature. When the system reaches
the warning temperature, the speaker will beep.
 ACPI Shutdown Temperature
Use this item to set the ACPI shutdown temperature. When the system reaches
the shutdown temperature, it will be automatically shut down by ACPI OS to pro-
tect the system from overheat damage.
 CPUFAN Mode Setting
“Enable or Disable” CPUFAN Mode to SMART FAN setting.
 SYSFAN Mode Setting
"Enable or Disable" SYSFAN Mode to SMART FAN setting.
 SYSFAN2 Mode Setting
Enable or Disable SYSFAN Mode to SMART FAN setting.
3.2.2.10 Second Super IO Configuration

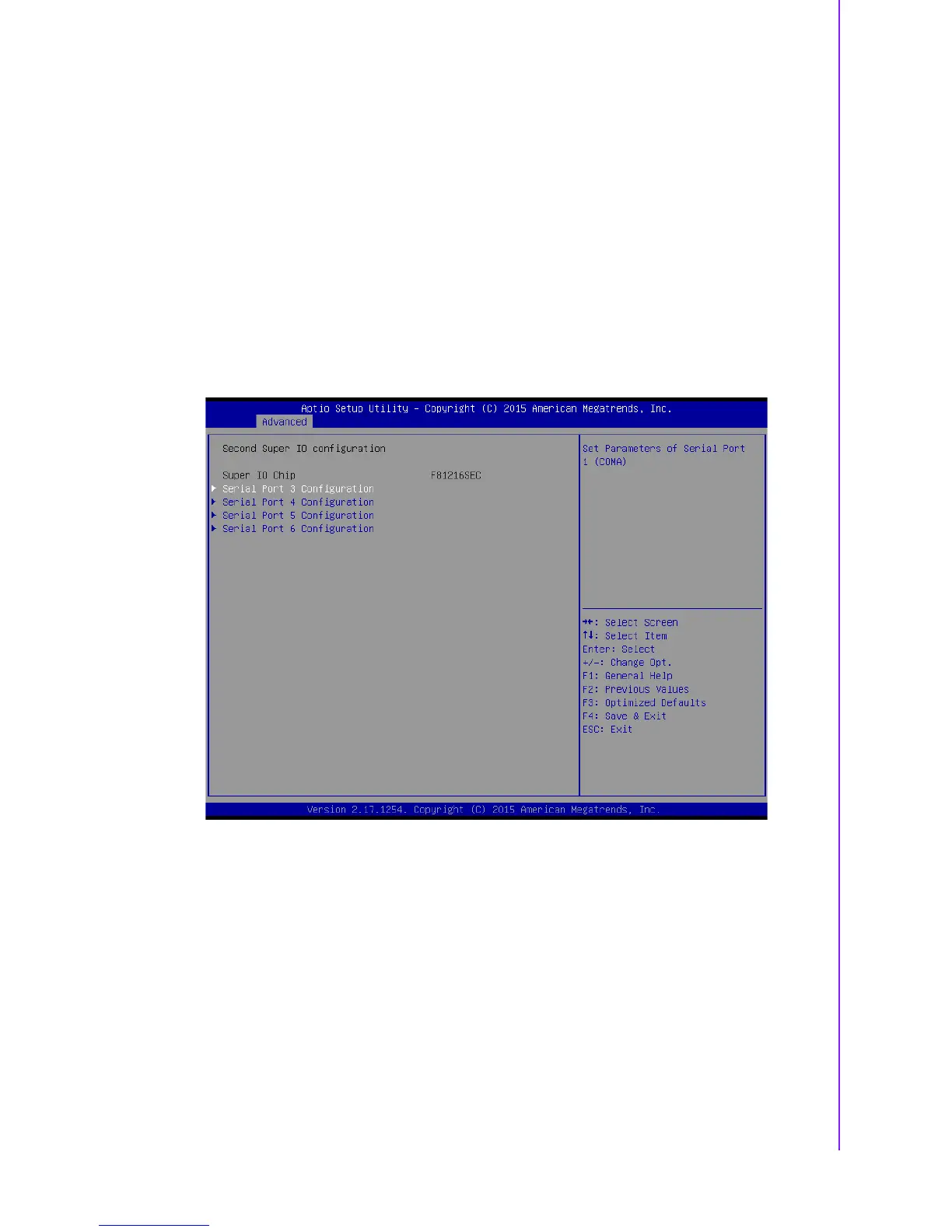

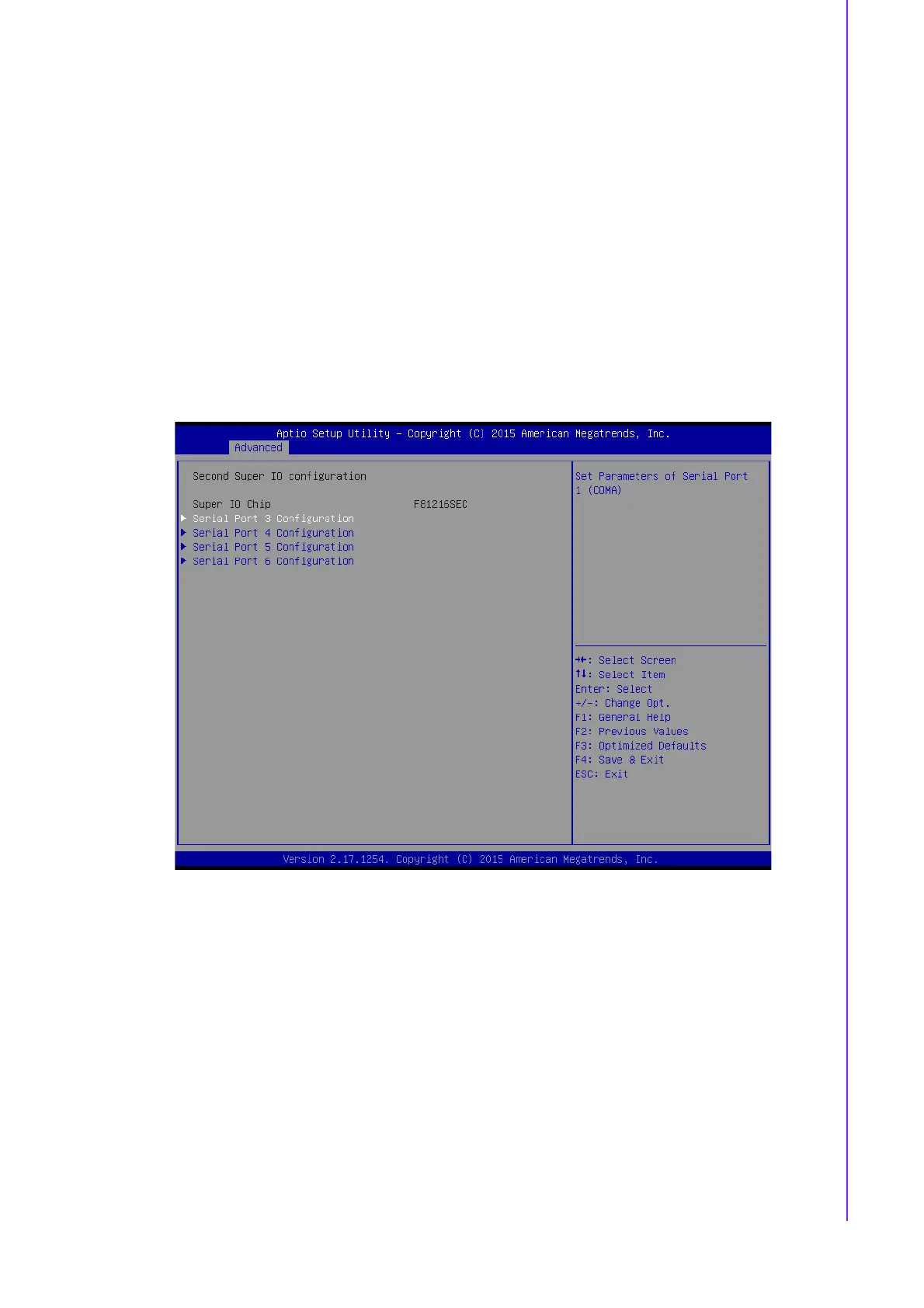

Figure 3.21 Super IO Configuration
AIMB-785 supports 2nd super IO for COM 3~6, this page of BIOS menu is to set
respective serial port configuration.
