Advantech AIMB-785G2-00A2 - Figure 3.25 Serial Port 6 Configuration

AIMB-785 User Manual 48

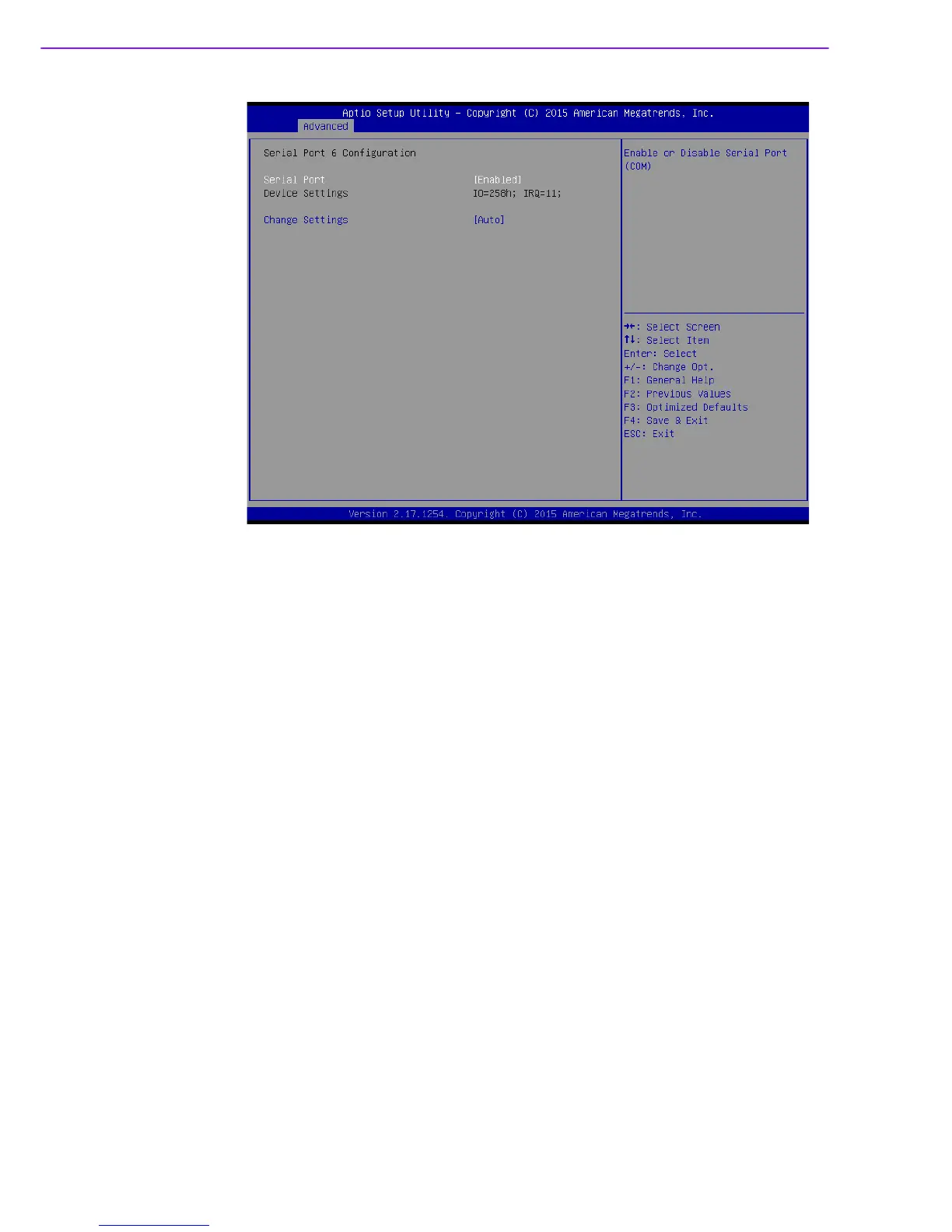

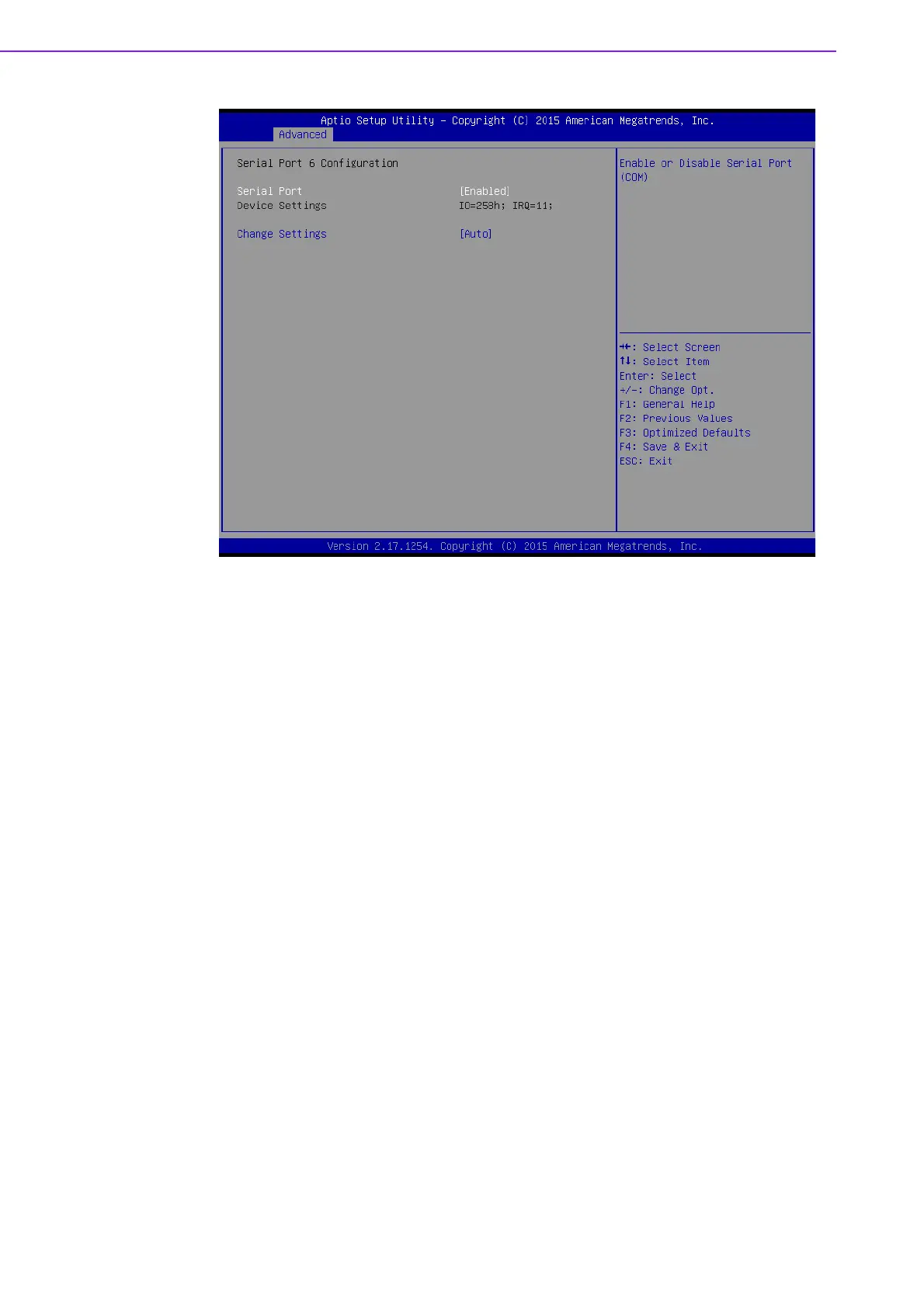

Figure 3.25 Serial Port 6 Configuration
 Serial Port 4 configuration
– Serial Port
To "Enable or Disable" Serial Port 4.
– Change Settings
To select an optimal setting for serial port 4.
 Serial Port 5 configuration
– Serial Port
To "Enable or Disable" Serial Port 5.
– Change Settings
To select an optimal setting for serial port 5.
 Serial Port 6 configuration
– Serial Port
To "Enable or Disable" Serial Port 6.
– Change Settings
To select an optimal setting for serial port 6.
