Advantech AIMB-785G2-00A2 User Manual

59 AIMB-785 User Manual
Chapter 3 BIOS Operation
3.2.3.5 PCH-IO Configuration

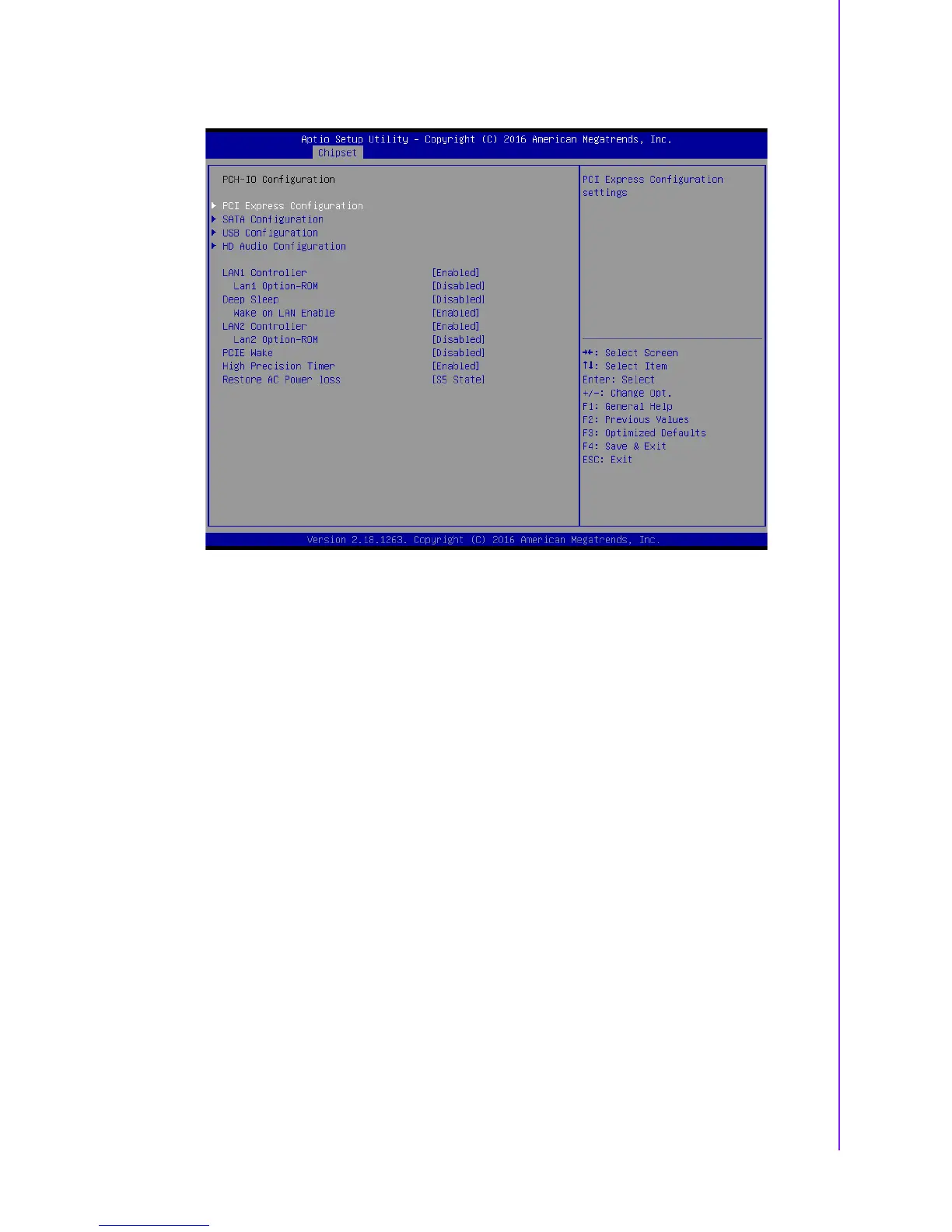

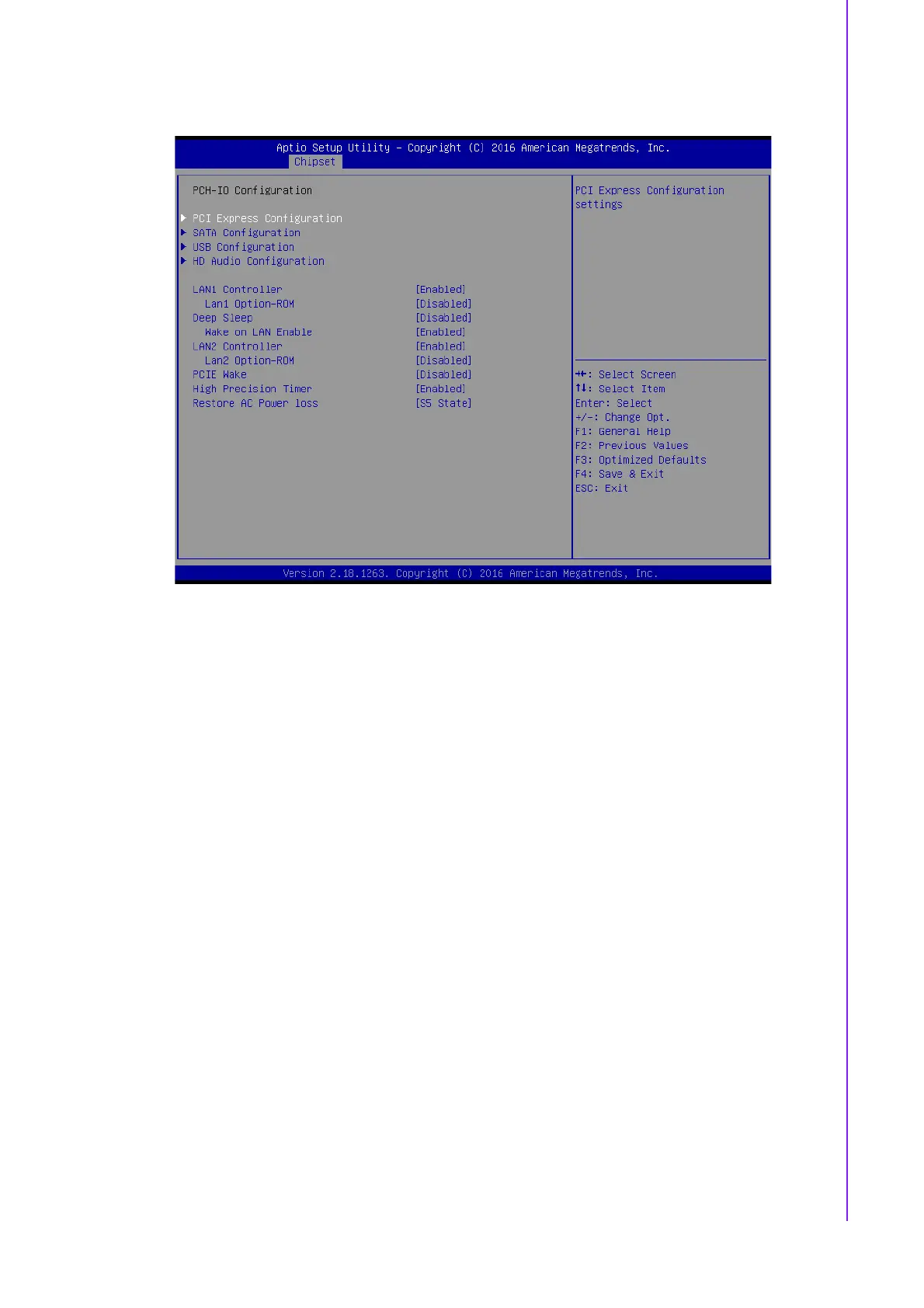

Figure 3.39 PCH-IO Configuration
 LAN1 Controller
"Enable or Disable" LAN1 controller.
 LAN 1 Option-ROM
"Enable or Disable" LAN 1 boot option for legacy network devices.
 Deep Sleep
"Enable or Disable" Deep Sleep.
 Wake on LAN Enable
"Enable or Disable" LAN1 to wake the system.
 LAN2 Controller
"Enable or Disable" LAN2 controller.
 LAN 2 Option-ROM
"Enable or Disable" LAN 2 boot option for legacy network devices.
 PCIE Wake
"Enable or Disable" PCIE to wake the system from S5.
 High Precision timer
“Enable or Disable” the high precision event timer
 Restore AC Power Loss
"Power off or Power on" or Last State to restore AC Power Loss
