ASMB-813I User Manual 8

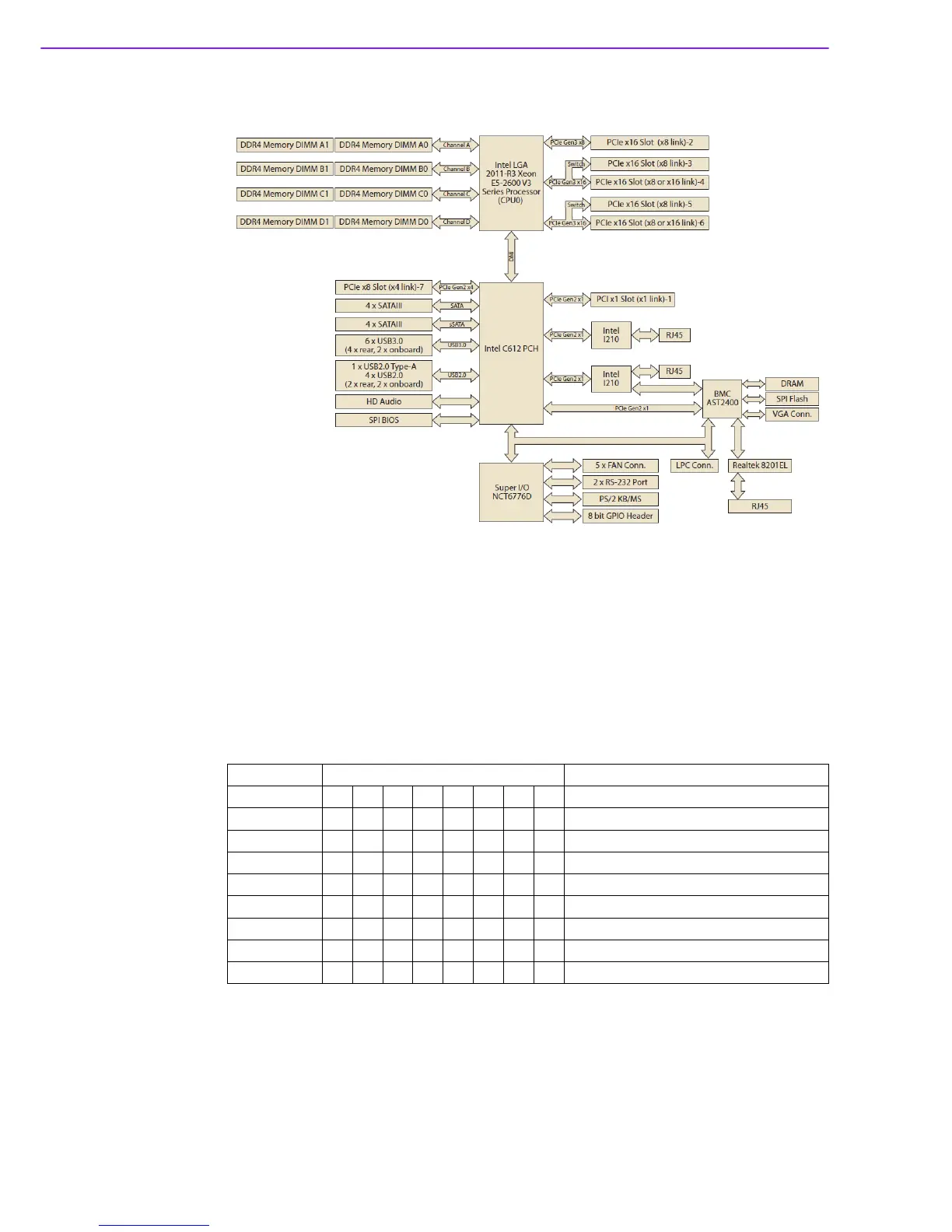

1.5 Block Diagram
Figure 1.3 Block Diagram
1.6 System Memory
ASMB-813I has eight 288-pin memory slots for DDR4 1600/1866/2133 MHz memory
modules with maximum capacity of 256 GB (Maximum 32 GB for each DIMM).
ASMB-813I supports registered DIMMs memory module.
1.7 Memory Installation Procedures
Single CPU Installed(CPU0)
12345678Quantity of memory installed
DIMMA1 VVVVVVVV
DIMMB1 VVVVVVV
DIMMC1 VVVVVV
DIMMD1 VVVVV
DIMMA2 VVVV
DIMMB2 VVV
DIMMC2 V V
DIMMD2 V
