27 ASMB-813I User Manual

Chapter 2 Connections

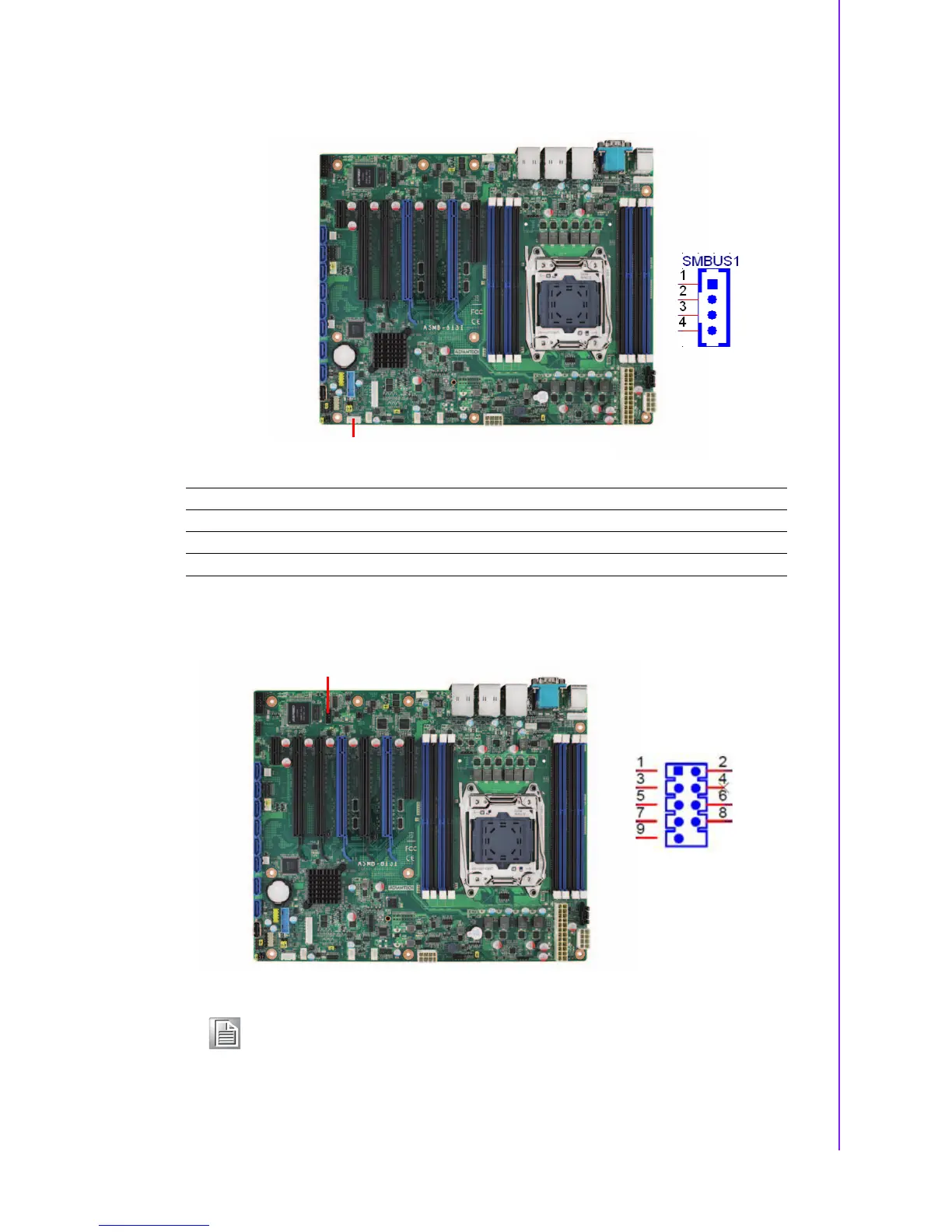

2.18 Front Panel SMBUS Connector (SMBUS1)

2.19 IPMI Module Connector (BMC1)*

1 +3.3V_AUX

2SMB_SCL_FRU

3 SMB_SDA_FRU

4GND

SMBUS1

Note! This connector will only fit to ASMB-BMC-00A1E and only exist in

ASMB-813I sku.

IPM1
